Quick Details
-
Weight (KG):
-
350
-
Voltage:
-
110V/220V/380V/415V 50/60hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AUTOMPACK
-
Dimension(L*W*H):
-
1150mm*750mm*1860mm
-
Product name:
-
ATM-320B small business plastic bage packing sealing machine
-
Bag Size:
-
Width: 30-150 mm; Length: 30-200mm
-
Standard accessories:
-
Hot stamp ribbon coder
-
Bag type:
-
Stick bag, pillow bag, 3 /4 sides sealed, gusseted bag, continuous bag
-
Packaging material:
-
OPP/CPP,OPP/CE,MST/PE/PET/PE
-
Film width:
-
Max.320mm
-
Packing speed:
-
30-80bags/min
-
packaging range:
-
1-2000g
-
Optional Device:
-
Exhausting charging, linked bag, coding printing bag
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Laminating, Sealing, SLITTING, counting
-
Packaging Type:
-
Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Pouch, case
-
Packaging Material:
-
Plastic, Paper, Metal
-
Weight (KG):
-
350
-
Voltage:
-
110V/220V/380V/415V 50/60hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AUTOMPACK
-
Dimension(L*W*H):
-
1150mm*750mm*1860mm
-
Product name:
-
ATM-320B small business plastic bage packing sealing machine
-
Bag Size:
-
Width: 30-150 mm; Length: 30-200mm
-
Standard accessories:
-
Hot stamp ribbon coder
-
Bag type:
-
Stick bag, pillow bag, 3 /4 sides sealed, gusseted bag, continuous bag
-
Packaging material:
-
OPP/CPP,OPP/CE,MST/PE/PET/PE
-
Film width:
-
Max.320mm
-
Packing speed:
-
30-80bags/min
-
packaging range:
-
1-2000g
-
Optional Device:
-
Exhausting charging, linked bag, coding printing bag
Autompack Automatic Vertical Form Fill And Seal Weighing Taffy Sunflower Seeds Grain Fennel Paddy Sesame Melon Seed Packing Machine
Product Description

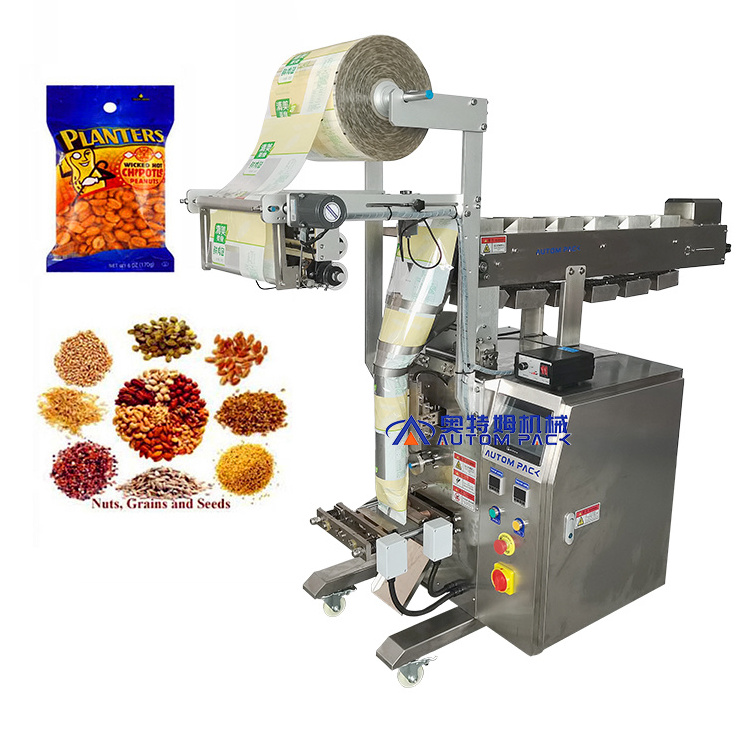

ATM-320B small type vertical packing machine is applicable for packing loose rounded granules in the pharmaceutical,food chemical and other industried.Such as puffed granule,peanuts,melon seeds,rice,seeds,monosodium glytamate,pepper,corn kernels,popcorn,Wangzi small steamed buns,sugar granules,biscuites and other granular solid materials packaging.
Machine Features
1.Weight measuring, bag making, filling, sealing, cutting and bags counting can be done automatically.
2.Computer plc control and automatic alarming function.
3. English and chinese human-machine operation interface, it is easy to operate, high degree of automation.
4.High sensitivity photoelectric eye color tracing, more accuracy.
5. Famous brand components, ensure the quality and durability of the machine.
Specification
ATM-320B and ATM-380B Technical parameters:
| Model | ATM-320B | ATM-380B |
| Film width | 120-320mm | 180-380mm |
| Bag length | 50-200mm | 60-280mm |
| Bag width | 30-150mm | 60-180mm |
| Film roll diameter | Max. 300mm | Max. 320mm |
| Measuring range | 1-1000ml | 1-2000ml |
| Packaging rate | 5-80 bag/min | 5-80 bag/min |
| Packing film thickness | 0.04-0.12mm | |
| Working voltage | 2.2kw | 2.5kw |
| Packing material applications | OPP, PE, PVC, OPP/CPP, OPP/PE, PET/VMPET/PE | |
| Dimensions | L1750*W750*H1480mm | L1100mm*W800mm*H2150mm |
| Gross weight(kg) | about 320kg | about 400kg |
Machine composition:
1.Hot stamp ribbon coder
2.Batch cutter
3.Vacuum loader
4.On-line check weighting with auto feedback weight
Packing Effect
1.The machine can provide back-seal packing, 3-side seal packing and 4-side seal packing effects.
2.It can be upgraded to add the bag with hanging holes and easy tear effect according to the needs.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1) Dedust & cleaning.
2) Lubricate drive parts.
3) Divide machine into modules.
4) Wrap modules with plastic film.
5) Packing modules into wooden case.
If any special requirements, we will pack it as requested.
2) Lubricate drive parts.
3) Divide machine into modules.
4) Wrap modules with plastic film.
5) Packing modules into wooden case.
If any special requirements, we will pack it as requested.
Payment
1.T/T and Western Union are accepted.
2.30% deposit before production and 70% balance before shipment
3.All banking charges outside China are on buyers
Shipping
1.Upon receipt of payment , delivery date will be in 1-25 working days,
2.By Air, by Sea or by Express (DHL etc)
3.Shipment cost will depend on the destination, shipment way and the weight of the goods.
1.T/T and Western Union are accepted.
2.30% deposit before production and 70% balance before shipment
3.All banking charges outside China are on buyers
Shipping
1.Upon receipt of payment , delivery date will be in 1-25 working days,
2.By Air, by Sea or by Express (DHL etc)
3.Shipment cost will depend on the destination, shipment way and the weight of the goods.
