- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KINGAN
-
Model Number:
-
KPB160-ACA
-
Voltage:
-
24V
-
Certification:
-
ce
-
Material:
-
Galvanized Steel Sheet
-
Feature:
-
Low Noise Power Saving
-
Direction of rotation:
-
Anticlockwise, seen on leads
-
Type of protection:
-
IP42
-
Bearing:
-
Ball bearing
-
Insulation class:
-
F
-
Amb.Temp:
-
-40~65℃
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Printing Shops, Food & Beverage Shops, Other, Advertising Company
-
Electric Current Type:
-
DC
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KINGAN
-
Model Number:
-
KPB160-ACA
-
Voltage:
-
24V
-
Certification:
-
ce
-
Material:
-
Galvanized Steel Sheet
-
Feature:
-
Low Noise Power Saving
-
Direction of rotation:
-
Anticlockwise, seen on leads
-
Type of protection:
-
IP42
-
Bearing:
-
Ball bearing
-
Insulation class:
-
F
-
Amb.Temp:
-
-40~65℃

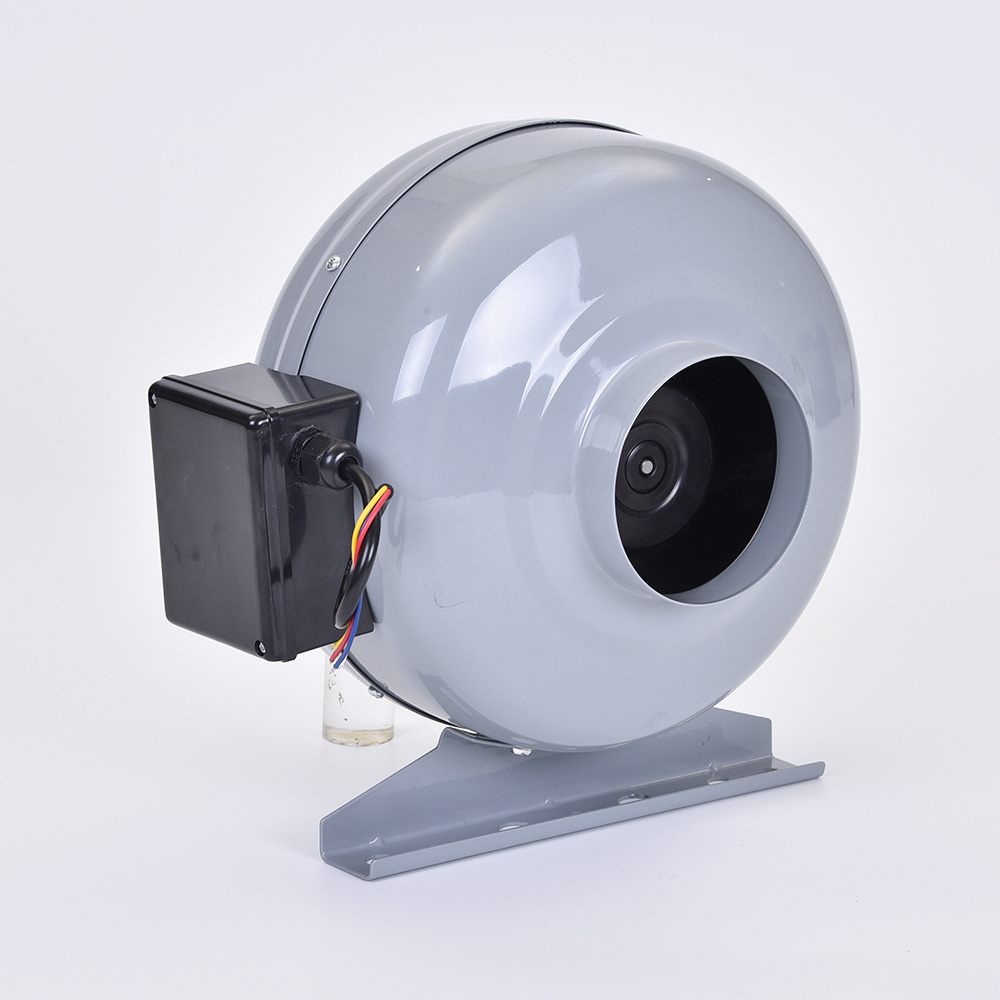

Product Overview
Advantages of centrifugal fan:
* With energy saving and high beneficent working performance
* Power supply option is upon orders, available for 12V, 24V, 48V (DC), 115V–230 V(AC)single phase at 50 (60) Hz.
* Brushless design for alonger service life (up to 40 000 hours).
* All fan and blowers equiped thermal overload protection.
* The fan and blower speed is regulated by 0-10 V or PWM control, FO output.
* Power supply option is upon orders, available for 12V, 24V, 48V (DC), 115V–230 V(AC)single phase at 50 (60) Hz.
* Brushless design for alonger service life (up to 40 000 hours).
* All fan and blowers equiped thermal overload protection.
* The fan and blower speed is regulated by 0-10 V or PWM control, FO output.
|
Model
|
KPB160-DCN
|
KPB160-DFN
|
|
|
Size
|
160mm
|
160mm
|
|
|
Materials
|
Galvanized sheet steel
|
|
|
|
Application
|
Air purification, fresh air, dehumidifier, electricity, new energy, Ventilate, Air conditioning system
|
|
|
|
Voltage
|
24V
|
48V
|
|
|
Current
|
2.60A
|
1.40A
|
|
|
Motor
|
Brushless
|
Brushless
|
|
|
Rate Power
|
63w
|
67w
|
|
|
Rotational speed
|
2600rpm
|
2600rpm
|
|
|
Airflow
|
890 m3/h
|
890 m3/h
|
|
|
Working temperature
|
-40℃ ~ 65℃
|
|
|
|
Control Mode
|
0-10V voltage control PWM control
|
|
|
|
Motor Protection
|
Motor shaft-locking + Over-voltage protection = soft-start protection
|
|
|
|
certificate
|
ROHS, EMC, LVD, CE
|
|
|
Overall Dimmensions
Performance Curves
|
Type
|
Centrifugal Fan
|
|
Brand Name
|
KINGAN
|
|
Electric Current Type
|
DC
|
|
Blade/Impeller Material
|
PA66
|
|
Direction
|
Clockwise Seen from Rotor
|
|
Motor Type
|
BLDC External Rotor Motor
|
|
Insulation Class
|
F
|
|
Warranty
|
25 Months
|
|
Amb Working Temp
|
-40 to +65℃
|
|
Bearing type
|
Ball Bearing
|
|
Packaging Details
|
Individual inner box for each single fan and blower.
Each order packing is carefully designed according to the transport way.
|
|
Port/Airport
|
Guangzhou, Shenzhen
|
|
Supply Ability
|
5000 Pieces per Month
|
|
After-sales Service Provided
|
Technical support online
(Instant chat messager, email, phone call, video call technical support)
|
|
Place of Origin
|
Guangzhou, China
|
|
Applicable Industries
|
Filter ventilation system
|
