Quick Details
-
Warranty:
-
1 year for complete set, 1Year
-
Brand Name:
-
WP
-
Model Number:
-
SV
-
Place of Origin:
-
Jiangsu, China
-
Horsepower:
-
25Hp
-
Cable Length:
-
10M
-
Outlet Size:
-
100MM
-
Power:
-
18.5kw
-
Product name:
-
Rotary vane vacuum pump
-
Feature:
-
Energy saving
-
Usage:
-
Pump air and dry gas
-
Flow rate:
-
up to 750 m³/h
-
pressure:
-
Normal pressure
-
Material:
-
Cast iron/Stainless steel
-
Speed:
-
max 2800 rpm
-
Fuel:
-
AC Electric Induction Motor
-
Motor:
-
380/440V
Quick Details
-
Application:
-
Commercial Buildings, District Energy, Drinking water treatment, Food and Beverage Industry, HVAC OEM, Industrial Boilers, Irrigation and Agriculture, Machining, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, Raw Water Intake, Washing and Cleaning, Wastewater Transport and Flood Control, Water Treatment Solutions
-
Pressure:
-
Low Pressure
-
Voltage:
-
380/440V
-
Warranty:
-
1 year for complete set, 1Year
-
Brand Name:
-
WP
-
Model Number:
-
SV
-
Place of Origin:
-
Jiangsu, China
-
Horsepower:
-
25Hp
-
Cable Length:
-
10M
-
Outlet Size:
-
100MM
-
Power:
-
18.5kw
-
Product name:
-
Rotary vane vacuum pump
-
Feature:
-
Energy saving
-
Usage:
-
Pump air and dry gas
-
Flow rate:
-
up to 750 m³/h
-
pressure:
-
Normal pressure
-
Material:
-
Cast iron/Stainless steel
-
Speed:
-
max 2800 rpm
-
Fuel:
-
AC Electric Induction Motor
-
Motor:
-
380/440V
Products Description
Product description

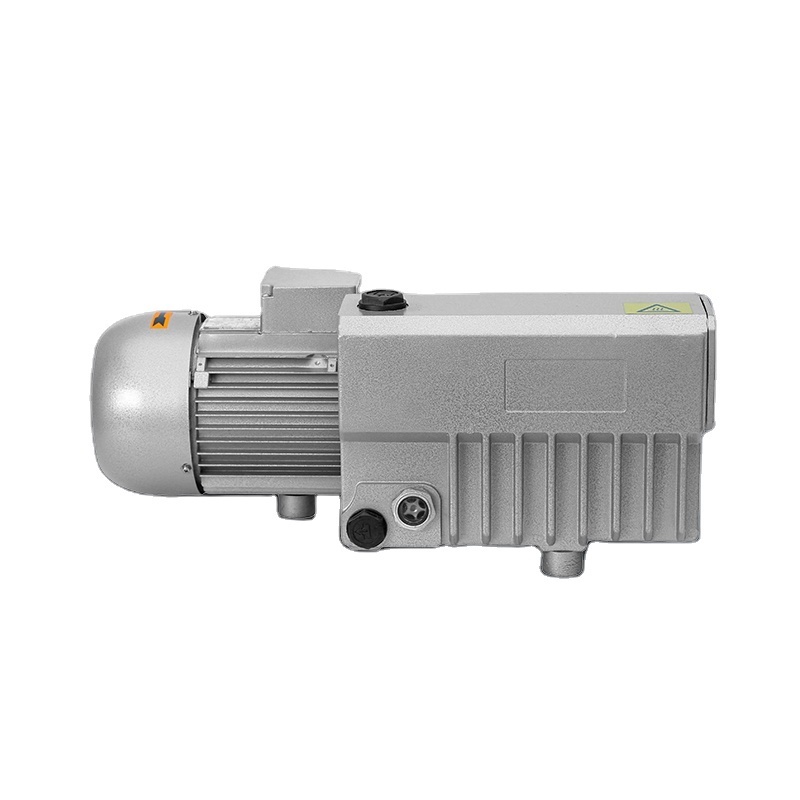

SV series single stage rotary vane vacuum pump is a kind of reliable,durable,economic and applicable rang of vacuum equipment. In the circular pump body,it has an air suction valve and exhaust valve(stator).The vanes are equipped with an eccentric rotor slot in the rotor,the vane blades divided the pump chamber into three parts. The volume of the pump chamber keep changing periodically as the rotation of the rotor to finish the process of gas suction, compression and elimination,so that the suction the gas/air from the inlet hole.
Application
SV series rotary vane vacuum pump is used widely in low vacuum field,suitable for pumping air and dry gas,not used to pumping corrosive toxic,exposive gas or transport the other object.
High pumping speed and low working noise, which can be less than 67db
Strong water vapor extraction capacity
Environmental protection. The pump is equipped with an oil mist eliminator, which can remove 99.99% of the oil mist in the exhaust gas
Compact structure, scientific and reasonable design, light weight, easy to install in industrial system
Specification
|
Flow rate
|
up to 750 m³/h
|
|
Pressure
|
up to 150 pa
|
|
Speed
|
max 2800 rpm
|
|
Temperature
|
max 80 ℃
|
|
Casing pressure
|
normal pressure
|
|
Shaft seal
|
Oil sealing
|
|
Material
|
Cast iron/Stainless steel
|
Exploded Drawing
Technical Datasheet
Products Show
Customer onsite installation photos
