Quick Details
-
Brand Name:
-
Fibervision
-
Use:
-
FTTX Solution
-
Warranty Time:
-
2
-
Product name:
-
MPO MTP cassette
-
Fiber Type:
-
Single-mode OS1/OS2
-
Connector Type:
-
MPO MTP-LC
-
Port:
-
1X8 1X12 1X24
-
Feature:
-
Easy Assembly
-
Function:
-
Converter Ethernet
-
Application:
-
Data Communications
-
Frequency:
-
850/1330/1490/1550MHZ
-
Warranty:
-
3 Years Lifelong Maintenance
-
Packing:
-
Carton box
Quick Details
-
Type:
-
Fiber optic patch panel
-
Model Number:
-
MPO MTP cassette OS2-24F
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Fibervision
-
Use:
-
FTTX Solution
-
Warranty Time:
-
2
-
Product name:
-
MPO MTP cassette
-
Fiber Type:
-
Single-mode OS1/OS2
-
Connector Type:
-
MPO MTP-LC
-
Port:
-
1X8 1X12 1X24
-
Feature:
-
Easy Assembly
-
Function:
-
Converter Ethernet
-
Application:
-
Data Communications
-
Frequency:
-
850/1330/1490/1550MHZ
-
Warranty:
-
3 Years Lifelong Maintenance
-
Packing:
-
Carton box

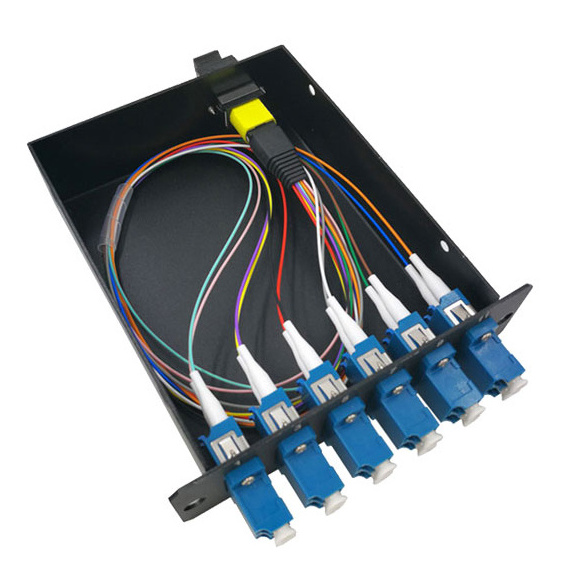

MPO cassette (or MTP cassette module) is an enclosed unit with one or more pre-terminated MTP/MPO breakout cables. It aims to converter MTP or MPO fiber trunk cables into standard LC, SC, and ST fiber connections. Our MTP/MPO cassettes are available in various fiber connectors (MTP/MPO to SC, LC, ST, FC, MDC, CS & SN), fiber modes (OS2, OM3, OM4, OM5), and fiber counts (8, 12, or 24).
• Factory-terminated provide consistent quality, high performance and reduce installation time
• 100% tested for low insertion loss performance and high return loss
• Simplifies cable management and allows for higher density
•Available in Multi-mode OM1/OM2/OM3/OM4,Single-mode OS1/OS2& Bend-insensitive fiber
• Available in polarity method A,B or C
• Cassettes can be easily mounted on the patch panel, designed for MPO/MTP ultra high-density panel system
• Easy to use and install
• RoHS compliant
Optical switching interframe connections
High-Density Fiber Management
Data Center Cabling
Fiber Optic Network Infrastructure
| Fiber Type | 50/125µm OM3 OM4 | Fiber Count | 24-Fiber |
| Front Connector Type | 12x LC Duplex | Rear Connector Type | 2x MPO-12 Male (Pinned) |
| Dimensions (WxDxH) | 130×112×30mm | Test Wavelength | 850 nm |
| Insertion Loss | MPO≤0.5dB, LC≤0.3dB | Return Loss | MPO≥20dB, LC≥30dB |
| Polarity | Type A | Durability | ≥500 times |
| MPO Connector | Key up to Key down | Polish | UPC |
| Environment | Operating: -20°C to 70°C | Application |
Data Centre Infrastructure
Fiber Optic Network Infrastructure High-Density Fiber Management |
| Storage: -40°C to 85°C | |||
