- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
Newmao
-
Model Number:
-
NMMP-02 Series
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
144W MAX
-
Structure:
-
Flex-Impeller
-
Cable Length:
-
18AWG 1M
-
Outlet Size:
-
1" Hose Barb
-
Power:
-
144W MAX
-
Usage:
-
Waste
-
Port:
-
IN:3" (75 mm) Quick-Connect RV fitting OUT: 1" Hose Barb
-
Priming Capabilities:
-
4 Feet (1.2m)
-
Run Dry:
-
20 Seconds Max
-
Motor:
-
Permanent Magnet, Intermittent Duty
-
Protection:
-
Thermal Overload Start on 239 °F(115° C), Automatic Restart
-
certificate:
-
CE&ROHS&ISO
-
Current:
-
15 Amps Max
-
Fuel:
-
12/24V DC Power
Quick Details
-
Application:
-
wastewater treatment
-
Pressure:
-
12GPM/45LPM
-
Voltage:
-
12/24V
-
Warranty:
-
1 year
-
Brand Name:
-
Newmao
-
Model Number:
-
NMMP-02 Series
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
144W MAX
-
Structure:
-
Flex-Impeller
-
Cable Length:
-
18AWG 1M
-
Outlet Size:
-
1" Hose Barb
-
Power:
-
144W MAX
-
Usage:
-
Waste
-
Port:
-
IN:3" (75 mm) Quick-Connect RV fitting OUT: 1" Hose Barb
-
Priming Capabilities:
-
4 Feet (1.2m)
-
Run Dry:
-
20 Seconds Max
-
Motor:
-
Permanent Magnet, Intermittent Duty
-
Protection:
-
Thermal Overload Start on 239 °F(115° C), Automatic Restart
-
certificate:
-
CE&ROHS&ISO
-
Current:
-
15 Amps Max
-
Fuel:
-
12/24V DC Power
|
Product Name
|

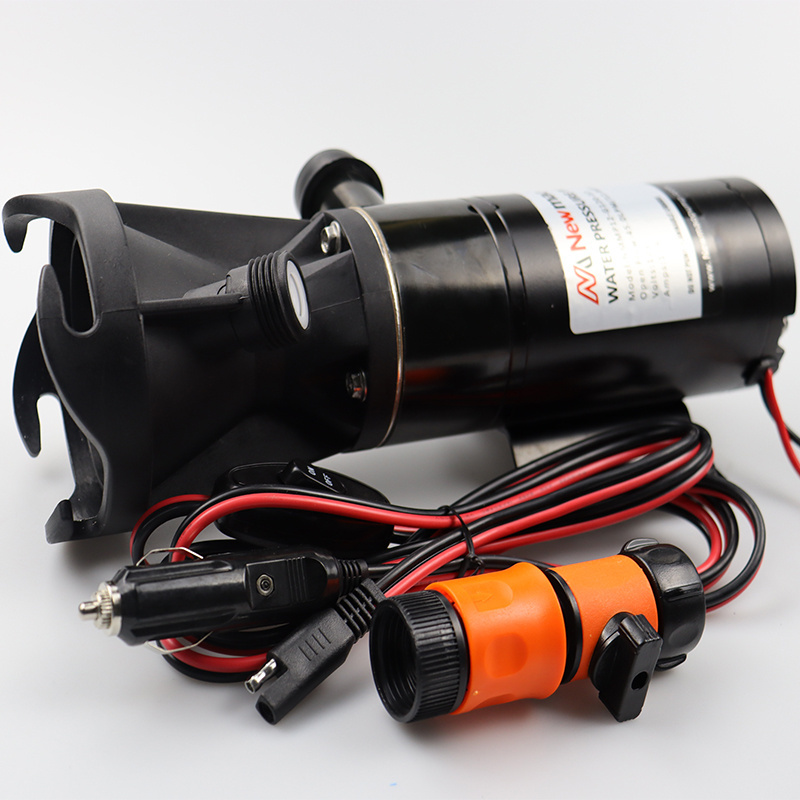

Newmao 02 series RV macerator pump DC 12V/24V
|
|
Pump Type
|
Centrifugal Pump (Flex-Impeller)
|
|
Ports
|
IN: 3" (75 mm) Quick-Connect RV fitting
OUT: 1" Hose Barb |
|
Liquid:
|
130°F (54°C)
|
|
Dry-Prime:
|
4 Feet (1.2m)
|
|
Run Dry:
|
20 Seconds Max
|
|
Motor:
|
Permanent Magnet, Intermittent Duty
|
|
Protection:
|
Thermal Overload Protection Start on 302°F(150°C), Automatic Restart
|
|
Voltage:
|
12/24 Volts DC
|
|
Leads:
|
14 AWG, Wire Leads
|
|
Fuse:
|
23 Amp Recommend
|
|
Current:
|
15 Amps Max
|
|
Housings:
|
Phenolic - Nylon
|
|
Impeller:
|
Rubber & Copper
|
|
Hardware:
|
Stainless Steel
|
|
|
|
|
Model
|
Voltage
|
Open Flow
(GPM/LPM)
|
Dimensions
|
Impeller
|
Ports
|
Max Draw(A)
|
|
NMMP12-G120-12
|
12V
|
12.0/45.0
|
11.6"x5.79"x5.2"
294.5x147x132mm |
Rubber & Copper
|
3" (75 mm) RV connector
1" Hose Barb |
12.0 A
|
|
NMMP12-G120-24
|
24V
|
12.0/45.0
|
11.6"x5.79"x5.2"
294.5x147x132mm |
Rubber & Copper
|
3" (75 mm) RV connector
1" Hose Barb |
7.0 A
|
Packing&Delivery
|
Unit N.W
|
2.4 KG
|
|
Unit Size
(L x W x H)
|
29.5 x 9.6 x 14.7 cm
|
|
Unit G.W
|
3 KG
|
|
Master Carton Qty
|
8 pcs / carton
|
|
Master Carton Size (L x W x H)
|
61*33.8*25.2cm
|
|
Master Carton Weight
|
25 KG
|
