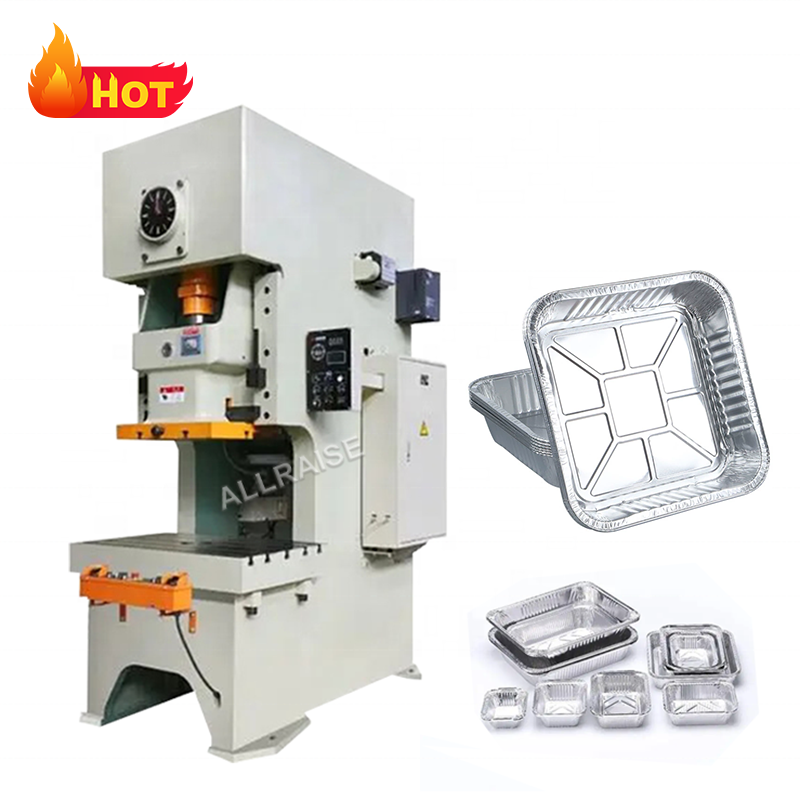

Hydraulic lunch box aluminium plates food machine dish aluminum foil plate making machine container plate foil making machine

Hydraulic lunch box aluminium plates food machine dish aluminum foil plate making machine container plate foil making machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $24000

≥10 Sets

US $21000

≥20 Sets

US $15000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 220V 50HZ

Dimension(L*W*H):: 1496*945*2120mm

Motor Power (kW):: 3kw

Model Number:: G-044

Weight (T):: 2450

Product name:: Foil making machine

NominalCapacity:: 250

SlideStroke:: 80

SlideStrokes:: 60-100

Max.DieShutHeight:: 250

Die ShutHeightAdjustment:: 50

AfterWarrantyService:: Video technical support

LocalServiceLocation:: None

Application:: Make aluminum foil lunch boxes, stamping metal products

Weight:: 2450-6450kg

Quick Details

Slide Stroke (mm):: 80mm

Place of Origin:: Henan, China

Brand Name:: Allraising

Voltage:: 220V 50HZ

Dimension(L*W*H):: 1496*945*2120mm

Motor Power (kW):: 3kw

Model Number:: G-044

Weight (T):: 2450

Product name:: Foil making machine

NominalCapacity:: 250

SlideStroke:: 80

SlideStrokes:: 60-100

Max.DieShutHeight:: 250

Die ShutHeightAdjustment:: 50

AfterWarrantyService:: Video technical support

LocalServiceLocation:: None

Application:: Make aluminum foil lunch boxes, stamping metal products

Weight:: 2450-6450kg

Products Description

Hydraulic lunch box aluminium plates food machine dish aluminum foil plate making machine container plate foil making machine

Product introduction

This aluminum foil dish making machine is mainly used for making portable aluminum lunch boxes, oiled paper boxes for baking, etc.

Suggestion:

1.If you are a coil, you need to install a unwinding device.

2.Better to add a finished product collector.

3.If you want to do 2 cavity, 60 tons of pressure is suitable.

Product parameters
ITEM			CODE	UNIT	21-25	21-45	21-60	21-80	21-125
Nominal Capacity			Pe	KN	250	450	600	800	1250
Slide Stroke			S	mm	80	120	140	160	180
Slide Strokes	Fixed	spm	Times/min	100	80	70	60	50
Slide Strokes		Variable(optional)	spm	Times/min	60-100	50-80	45-70	40-60	35-50
Max. Die Shut Height			H2	mm	250	270	300	320	350
Die Shut Height Adjustment			t	mm	50	60	70	80	90
Throat Depth			C1	mm	210	225	270	310	350
Distance Between Columns			d1	mm	450	515	560	610	670
Slide Bottom Size	F-B	b	mm	250	340	400	460	520
Slide Bottom Size		L-R	a	mm	360	410	480	540	620
Shank Hole Size	Diameter	d	mm	40	50	50	50	70
Shank Hole Size		Depth	I	mm	65	60	70	65	90
Bolster Size	F-B	D	mm	400	440	520	600	680
		L-R	C	mm	720	825	930	950	1100
		Thickness	H3	mm	80	110	130	140	155
Bed Opening Hole Diameter			¢	mm	150	150	150	180	200
Overall Dimensions	F-B	A	mm	1496	1585	1540	1765	2040
		L-R	B	mm	945	1075	1200	1200	1320
		Height	H	mm	2120	2391	2570	2725	3035
Motor Power				KW	3	5.5	5.5	7.5	11
Weight(approximate)				kg	2450	3550	5150	6450	9550
ITEM			CODE	UNIT	JH21-160	JH21-200	JH21-250	JH21-315	JH21-400
Nominal Capacity			Pe	KN	1600	2000	2500	3150	4000
Slide Stroke			S	mm	200	220	220	220	250
Slide Strokes	Fixed	spm	Times/min	45	45	30	30	30
Slide Strokes		Variable(optional)	spm	Times/min	30-45	25-45	20-30	20-30	20-30
Max. Die Shut Height			H2	mm	400	450	500	500	550
Die Shut Height Adjustment			t	mm	100	110	120	120	120
Throat Depth			C1	mm	400	430	450	450	490
Distance Between Columns			d1	mm	736	910	980	980	1050
Slide Bottom Size	F-B	b	mm	580	650	700	700	750
Slide Bottom Size		L-R	a	mm	700	880	950	950	1020
Shank Hole Size	Diameter	d	mm	70	70	70	70	70
Shank Hole Size		Depth	I	mm	100	100	130	130	130
Bolster Size	F-B	D	mm	760	840	880	880	950
		L-R	C	mm	1175	1390	1500	1540	1700
		Thickness	H3	mm	165	180	190	190	210
Bed Opening Hole Diameter			¢	mm	220	250	270	270	290
Overall Dimensions	F-B	A	mm	2305	2600	2660	2720	2850
		L-R	B	mm	1420	1540	1640	1680	1750
		Height	H	mm	3215	3800	3865	3865	4150
Motor Power				KW	15	18.5	22	30	37
Weight(approximate)				kg	13600	19200	23200	26600	31600

Product Features

1.	Aluminum foil container making machine with steel welded body, tempering treatment, high rigidity, accuracy and stability.
2.	Vertical located crankshaft, compact structure.
3.	The crankshaft undergoes grinding treatment after high frequency quenching.
4.	Lengthened rectangular guideway with a surface of bronze plate.
5.	Pneumatic dual balance cylinder, which balances the slide block and punch weight to reduce noise and impact.
6.	PLC control and imported safety dual valve.
7.	Aluminum foil plate making machine has wet clutch and hydraulic overload protector.
