Quick Details
-
Voltage:
-
customization
-
Dimension(L*W*H):
-
customization
-
Weight:
-
1000 KG
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
Gold Trommel Wash Plant
-
Application:
-
For placer/alluvial gold washing
-
After sale service:
-
Life-long Service installation,commissioning,set-up,training
-
Portable:
-
As your requirement
-
Gold refinery system:
-
shaker tabele + amlagamator + furnace
-
Color:
-
Customized Making
-
Capacity:
-
Customized Recommendation
-
After-sales Service:
-
Provided
-
Quality:
-
High Level
-
Feature:
-
High Separation Effect
Quick Details
-
Production Capacity:
-
5-100 tph/h
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
WALKER
-
Voltage:
-
customization
-
Dimension(L*W*H):
-
customization
-
Weight:
-
1000 KG
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
Gold Trommel Wash Plant
-
Application:
-
For placer/alluvial gold washing
-
After sale service:
-
Life-long Service installation,commissioning,set-up,training
-
Portable:
-
As your requirement
-
Gold refinery system:
-
shaker tabele + amlagamator + furnace
-
Color:
-
Customized Making
-
Capacity:
-
Customized Recommendation
-
After-sales Service:
-
Provided
-
Quality:
-
High Level
-
Feature:
-
High Separation Effect
Product Description

Overview
Small and Portable gold wash plant with trommel is a more flexible and cheaper gold washing solution, it can fully Customizable & moveable. This small machine can equip with the sluice box, gold centrifugal concentrator, shaker table, gold trommel, and other washer like sand washing machine. Also, vibrating feeders, vibrating screen, pumps, and other portable mining equipment can followed according to different conditions.
Technical Parameters
This is a piece of common suite equipment for small scale gold mining with scalability and flexibility.

Clay Processing System
1.Customized capacity and strong power scrubbing, large capacity can reach 200-250tons per hour.
2.Long washing drum of the scrubber retains material for longer, more vigorous washing for complete separation.
3.One high output electrical motor driving a rubber wheel system providing efficient torque.
4.Rotation speed can be adjusted by advanced reducer.
5.The water with highpressure flushed the inwall of drum. 6.Can accept material up to 230mm.

Screening System
Drum screen/rolling cylinder drum sieve is designed for processing minerals, mainly for alluvial/placer gold ore washing & screening, it's consist of a half covered trommel screen, one diesel engine/ electric motor, water pump & water pipes, and other facilities such as the feeding hopper and the mobile system.

Sluice Box
reminderThe specifications of our sluice machine can be customzied as per customer's request.
We can customize the length and width.
We can customize the cover on top to prevent gold being stolen.
We can customize metal mesh and the carpet materials as per customer's request.
Shaking Table
The 6-S shaker is a gravity separation equipment used to separate fine-grained materials. It is widely used to separate rare metals and precious metals such as tin, tungsten, gold and silver, lead, zinc, tantalum, niobium, iron, manganese, and ferro-titanium. Metal ore. Our factory has a long history of producing shakers, and we continue to develop and innovate, which greatly improves the processing capacity, recovery rate and enrichment ratio of the shaker.
Centrifugal Concentrator
Centrifuge Concentrator is a new type of gravity concentration equipment for gold separating and other high density minerals. The centrifugal machine has many competitive advantages compared with other concentration machines which create high returns for the investors.We have fully-continuous (Knelson Continuous Variable- Discharge, CVD type) and semi continuous(Batch type) centrifugal gold concentrators.
Gold Smelting Furnace
Siemens IGBT power all-solid-state inverter module technology, cooper melting furnace device output current is through the
induction coil generates a strong magnetic field. Under the action of the magnetic field is formed on the surface eddy current
heating operation, to rapidly heat the workpiece.
induction coil generates a strong magnetic field. Under the action of the magnetic field is formed on the surface eddy current
heating operation, to rapidly heat the workpiece.
Related Products

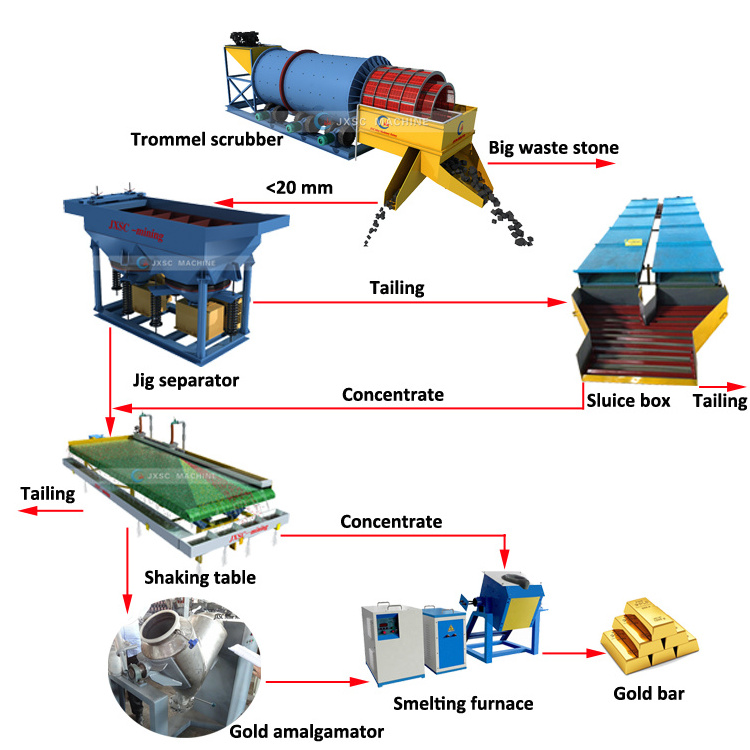

We have professional engineers team to draw flowchart based on customer's gold mine site details.
We supplied full set gold plant: vibrating feeder, trommel scrubber washing machine, gold centrifugal concentrator, sluice box and shaking table.
Successful cases
200TPH Clay Alluvial Gold Washing Plant in Ghana
complete set 200TPH washing plant including below configurations:
1. Feeding hopper
2. Vibration Feeder with grizzly
3. Drum scrubber
4. High Frequency Vibration Screen
5. Sluice Box
6. Belt conveyor
7. Gold centrifugal Concentrator
8. Shaking table
9. Accessores : water pump, high pressure water gun, diesel generator, electric control pannel, cables &wires, water pipes, connection chutes , Corridor fence, high steel frame.
This Plant can catch all sizes of gold concentrate from 0-20mm, high recovery ratio reach 75-80%, low power consumption, Easy operation and maintance, Smaller Investment comparing with other solution, low operating costs.
We can Customize the Most suitable Solutions according to your gold ore conditions and requirements for the plant. Welcome to contact us for more details.
40T/H Capacity Complete set Mobile alluvial gold processing plant for Korea
complete set mobile gold washing plant for our Korea customer's alluvial gold recovery project.
The machines include: gold washing trommel scrubber, gold centrifugal concentrator, shaking table and sluice box. All the machines are mobile with wheel, very easy to move and operate, high recovery effect.
This set machine processing capacity is 40T/H, suitable for washing alluvial gold with sticky clay. Detail machine as below:
1. Mobile gold washing trommel scrubber: Diamter: 900mm, length of screen:1.5m, length of scrubber:2.5m, two layers screen. with big grizzly hopper, water pump, with water pipes around the hopper, with water pipe insider&outside of trommel screen, mobile with wheels.
2. Mobile gold centrifugal concentrator: Model STLB60, mobile with wheels.
3. Mobile LY Shaking table ,mobile with wheels.
4. Sluice box: 6m*1m*0.3m(L*W*H), with cover on top.
