Quick Details
-
Product name:
-
1000 seater large outdoor luxury festival event german tents marquees
-
Frame:
-
Alluminum alloy
-
Roof fabric:
-
850g/sqm double coated pvc
-
Sidewall fabric:
-
650g/sqm double coated pvc
-
Tent width:
-
3-50m
-
Eave height:
-
Standard 2.5m, 3m, 4m, 5m upon span width
-
Fabric color:
-
White,black,red
-
Wind load:
-
100km/h
-
Application:
-
party,event,wedding,church,exhibition
-
Fuction:
-
waterproof, fireproof
Quick Details
-
Brand Name:
-
MST
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
MSTLP
-
Product name:
-
1000 seater large outdoor luxury festival event german tents marquees
-
Frame:
-
Alluminum alloy
-
Roof fabric:
-
850g/sqm double coated pvc
-
Sidewall fabric:
-
650g/sqm double coated pvc
-
Tent width:
-
3-50m
-
Eave height:
-
Standard 2.5m, 3m, 4m, 5m upon span width
-
Fabric color:
-
White,black,red
-
Wind load:
-
100km/h
-
Application:
-
party,event,wedding,church,exhibition
-
Fuction:
-
waterproof, fireproof
1000 seater large outdoor luxury festival event german tents marquees
============================>>Size Specification<<==========================
Width: from 3 meters to 50meters
Length: Unlimited, extended by 3m or 5m each bay
Eave height: standard from 2.5m, 3m, 4m to 5m upon span width (or special height per requested)
Type |
Span width (m) |
Bay spacing (m) |
Eave height (m) |
Ridge height (m) |
Main frame profile (mm) |
MST-6 | 6 | 3 | 2.5 | 3.5 | 48X84X3 |
MST-8 | 8 | 3 | 2.5 | 3.9 | 48x84x3 |
MST-10 | 10 | 3 | 2.5 | 4.3 | 48X84X3/48x100x3 |
MST-12 | 12 | 5 | 3 | 5.1 | 68x122x3 |
MST-15 | 15 | 5 | 3 | 5.4 | 108X150X3 |
MST-18 | 18 | 5 | 4 | 6.9 | 112X203X4 |
MST-20 | 20 | 5 | 4 | 7.2 | 112X203X4 |
MST-25 | 25 | 5 | 4 | 8.0 | 112X203X4 |
MST-30 | 30 | 5 | 4 | 8.8 | 113X259X5 |
MST-40 | 40 | 5 | 4 | 10.4 | 120X300X5 |
MST-50 | 50 | 5 | 5 | 13 | 128x350x5 |
The length can be extended by 3m such as 6m,12,18m,30m... or by 5m bay such as 15m,20m,30m,40m... Customized size or shape is available. |
==============================>>Detail Specification<<========================
Our tent structure is well designed for strong wind and snow load, and it is easy to assembly and disassembly.
- Frame struss : hard pressed extruded aluminium 6061/T6(15HW) which can last more than 15 years.
- Fabric cover : high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
- Connector : strong hot-dip galvanized steel
- Allowed temperature condition : -30 degree Celsius~+70 degree Celsius
- Wind load: max.100km/h (can be reinforced)
- Snow load : 25kg/sqm (snow can't stay if use big degree roof pitch design)
- Easy to be assembled and dismantled, movable.
- No pole inside, 100% available interior space.
============================>>Product Show<<==============================

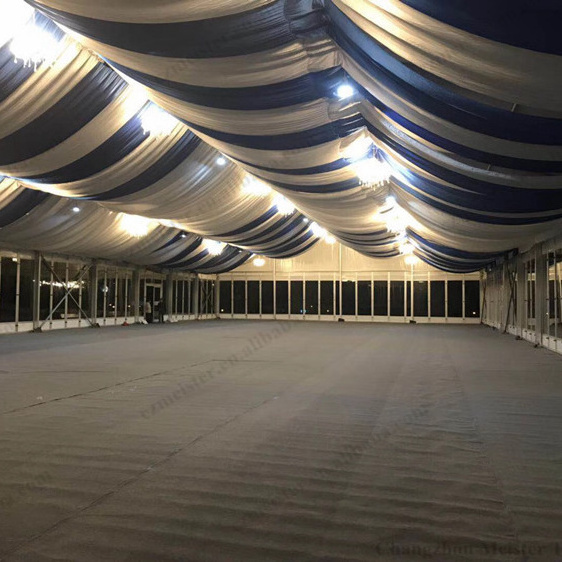

Meister Tent Standard Tent could be widely used for temporary outdoor exhibitions,wedding parties, festival celebrations, conferences, sports and other events, and also be a good solution of temporary warehouse, workshop and emergency relief and other purposes.
1000 seater large outdoor luxury festival event german tents marquees
1000 seater large outdoor luxury festival event german tents marquees
1000 seater large outdoor luxury festival event german tents marquees
=========================>>Optional Accessories<<===========================
2)Clear PVC cover(roof + sidewalls)
5)Door: glass door, metal door, shutter door, sliding door, etc
6)Flooring system
7)Lining and curtain
8)Other suppliers, such as door canopy, chairs, tables, lighting, air condition, etc
==== =========================>>Fixing Ways<<===============================
- main frame packed in bubble sheet, large paper or woven bag
- small accessories packed in PVC bags or woven bag
