Quick Details
-
Place of Origin:
-
China
-
Weight:
-
3100 kg, 2300kg/320kg
-
Voltage:
-
380V according to customer requirements
-
Use:
-
Brick, granite, marble,sandstone,limestone, etc.
-
Main motor power:
-
22kw(30HP) 45kw(60HP)
-
Water consumption:
-
3.5m3/h
-
Blade size:
-
800mm
-
Blade speed standard:
-
Adjustable Max. 1170RPM
-
Max. cutting depth:
-
280mm
-
Dimensiones:
-
2850x1900x1800mm
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
22KW
-
Cutting thickness (max):
-
15mm
-
Place of Origin:
-
China
-
Weight:
-
3100 kg, 2300kg/320kg
-
Voltage:
-
380V according to customer requirements
-
Use:
-
Brick, granite, marble,sandstone,limestone, etc.
-
Main motor power:
-
22kw(30HP) 45kw(60HP)
-
Water consumption:
-
3.5m3/h
-
Blade size:
-
800mm
-
Blade speed standard:
-
Adjustable Max. 1170RPM
-
Max. cutting depth:
-
280mm
-
Dimensiones:
-
2850x1900x1800mm
Banner
Product Overviews

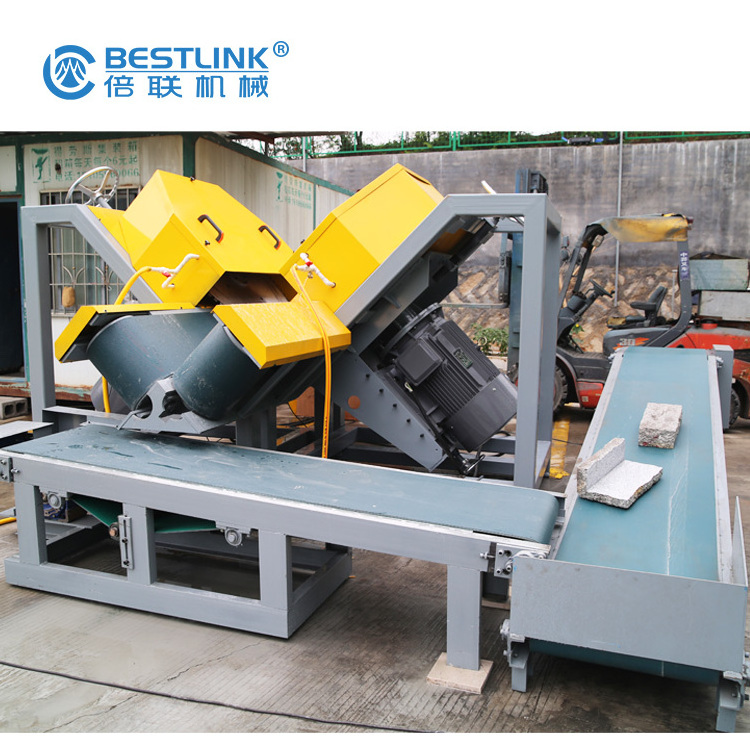

Bestlink Irregular stone veneer saw cutting machine for flate cut
VS series thin stone veneer saw (mighty stone saw) make cutting thin stone veneer flats and 90-degree corners quick, simple, low maintenance,and profitable. The unique v-structured cutting surface easily cuts split-face or natural finished sandstone, brick, limestone, and other hard stones up to 16" high and 2.5" thick. A single pass through the saw turns large stone pieces into thin stone veneer with unmatched consistency, efficiency, and reliability. There are two model:30HP&60HP.
VS series thin stone veneer saw (mighty stone saw) make cutting thin stone veneer flats and 90-degree corners quick, simple, low maintenance,and profitable. The unique v-structured cutting surface easily cuts split-face or natural finished sandstone, brick, limestone, and other hard stones up to 16" high and 2.5" thick. A single pass through the saw turns large stone pieces into thin stone veneer with unmatched consistency, efficiency, and reliability. There are two model:30HP&60HP.
| Technical Data/Model | 60HP | 30HP |
| Dimensions (L×W×H) | 3300mm×2180mm×2180mm | 2850mm×1900mm×1800mm |
| Machine Weight | 3200kg | 2300kg |
| Main Motor Power | 45kw | 22kw |
| Electricity | 3 Phase, 240/460V | 3 Phase, 240/460V |
| Amperage | 172/86A | 86/43A |
| Water Consumption | 4m³/h | 3.5m³/h |
| Blade Size | 1000mm-1200mm | 800mm |
| Blade Speed Standard(Adjustable) | 780rpm | 900rpm |
| Max. Cutting Depth | 300-450mm | 280mm |
| Conveyor Belt Speed(Adjustable) | 600mm/min-2450mm/min | 600mm/min-2450mm/min |
