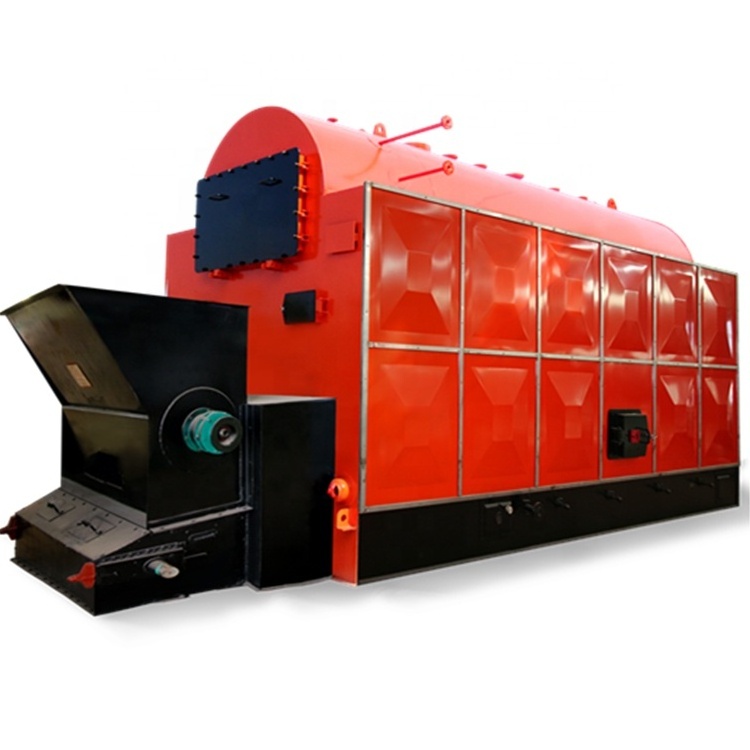

Coal Chain Grate Stoker dzl 17mw Coal Fired Hot Water Boiler Price

Coal Chain Grate Stoker dzl 17mw Coal Fired Hot Water Boiler Price

FOB Reference Price: Get Latest Price

≥1 Sets

US $5000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 5000mm*2200mm*2800mm

Weight:: 20100kg

Name:: coal chain grate stoker dzl 17mw coal fired hot water boiler price

Color:: Customer's Requirement

rated steam capacity:: 1-10t/h

rated steam pressure:: 0.7/1.0/1.25/1.6Mpa

rated steam temperature:: 170/184/194/204C

Thermal efficiency:: 85%

feed water temperature:: 20C

Certification:: ISO SGS CE CCC

Quick Details

Steam Production:: Max. 10t/h

Place of Origin:: Henan, China

Brand Name:: YUTONG

Dimension(L*W*H):: 5000mm*2200mm*2800mm

Weight:: 20100kg

Name:: coal chain grate stoker dzl 17mw coal fired hot water boiler price

Color:: Customer's Requirement

rated steam capacity:: 1-10t/h

rated steam pressure:: 0.7/1.0/1.25/1.6Mpa

rated steam temperature:: 170/184/194/204C

Thermal efficiency:: 85%

feed water temperature:: 20C

Certification:: ISO SGS CE CCC

coal chain grate stoker dzl 17mw coal fired hot water boiler price

Dear Customer:

We have a Trade Assurance Amount US $338,000 granted by Alibaba.com. It means you will receive 100% refund of the Trade Assurance Amount for orders not meeting agreed delivery or quality terms.

Product Description

This boiler adopt chain grate,suitable for molding pellet fuel,can add a small amount of wood,wood block,also can burn with coal.

This boiler adopt the newest achievements in scientific research, such as:Arched Tube plate, thread smoke tube etc, solve the tube plate crack of shell type boiler, Water wall tube burst, low efficiency, insufficient of power,Poor pf coal type adaptability etc.

Combustion Processe:

The fuel burning at the furnace through, the exhaust gas flow from the boiler barrel bottom to the smoke window outlet on the Eight character wall, then enter convection bank at the both wings, next enter the thread smoke tube through the front smoke box, pass by economizer, dust remover, and induced draft fan, finally discharged to the atmosphere by chimney.

Feeding System Introduction :

1. Conveyor feeding mode (For biomass particles)

2. Elevating automatic feeding (For coal)

3. Blast feeding (For size of less than 50mm of small sawdust, or rice husk)

4. Screw feeder

Technical Parameters:

Model Item	DZL1-0.7-T DZL1-1.0-T DZL1-1.25-T	DZL2-0.7-T DZL2-1.0-T DZL2-1.25-T	DZL4-1.25-T DZL4-1.6-T	DZL6-1.25-T DZL6-1.6-T	DZL8-1.25-T DZL8-1.6-T	DZL10-1.25 DZL10-1.6
Rated evaporation capacity (t/h)	1	2	4	6	8	10
Working pressure(Mpa)	0.7/1.0/1.25	0.7/1.0/1.25	1.25/1.6	1.25/1.6	1.25/1.6	1.25/1.6
Rated steam temperature( ℃ )	170/184/194	170/184/194	194/204	194/204	194/204	194/204
Feed water temperature( ℃ )	20	20	20	20	20	20
Effective area of grate(m2)	2.22	4.1	5.85	7.95	9.75	10.77
Fuel consumption (Kg/h)	200	400	800	1200	1600	2010
Exhaust flue gas temperature(C)	150	150	150	150	150	150
Thermal Efficiency (%)	82	82	82	82	82	82
Size(m)	5.1x 2.2x 3.0	5.5x 2.3x 3.3	6.6x 2.6x 3.6	8.2x 2.9x 3.8	8.1x 3.1x 3.8	7.7x 3.2x 3.6 8.6x 3.0x 2.6
Weight (t)	17	23	25	35	45	33 28

Advantages:

1.No need special protection when power off.

2.Higher efficiency,heating fast.

3.Safe and reliable.

4.Easy to install .

Boilers Application

Medicine, chemical, light industry, textile, building material, cultivation, food and beverage, plastic foam, printing, dyeing and washing, rubber processing, paper products,wood processing, hotel, clothing and leather manufacturer etc.

Packaging & Shipping

Coal fired chain grate boiler is very popular, Vietnam customer uses it for the clothes factory, Ethiopia customers uses it for food processing factory, Bangladesh customer uses it for the milk processing factory, African customer use it for the wood processing factory, etc.
