Quick Details
-
Control Mode:
-
Touch Control, APP Control, Remote Control, Switch Control, Sensor control
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
peony
-
Model Number:
-
PL-GL-040B-120W
-
Color Temperature(CCT):
-
2700-6500K
-
Beam Angle(°):
-
TYPE II, TYPE III
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
AC100V-277V
-
Lamp Luminous Efficiency(lm/w):
-
140
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-30 - 55
-
Product name:
-

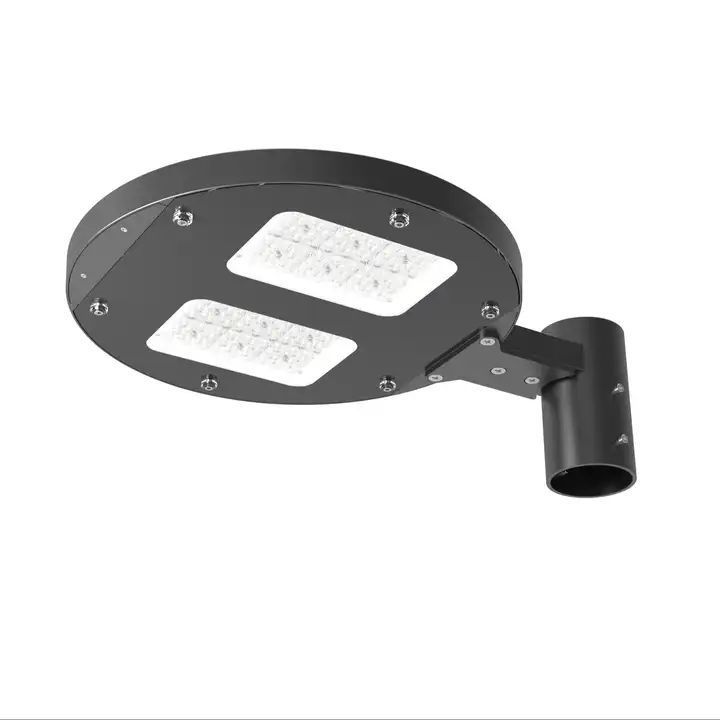

LED Garden Spotlight
-
Color temperature:
-
4000k(2700-6500k upon request)
-
Chip brand:
-
Lumileds 3030
-
Whole light efficiency:
-
130-150lm/w
-
Lifespan:
-
108000h
-
Housing color:
-
Black/Grey/White
-
Insulation class:
-
Class I or Class II
-
Operating humidity:
-
10-90%
Quick Details
-
Warranty(Year):
-
5
-
Power Supply:
-
AC
-
Lighting solutions service:
-
Lighting and circuitry design, DIALux evo layout, LitePro DLX layout
-
Control Mode:
-
Touch Control, APP Control, Remote Control, Switch Control, Sensor control
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
peony
-
Model Number:
-
PL-GL-040B-120W
-
Color Temperature(CCT):
-
2700-6500K
-
Beam Angle(°):
-
TYPE II, TYPE III
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
AC100V-277V
-
Lamp Luminous Efficiency(lm/w):
-
140
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-30 - 55
-
Product name:
-
LED Garden Spotlight
-
Color temperature:
-
4000k(2700-6500k upon request)
-
Chip brand:
-
Lumileds 3030
-
Whole light efficiency:
-
130-150lm/w
-
Lifespan:
-
108000h
-
Housing color:
-
Black/Grey/White
-
Insulation class:
-
Class I or Class II
-
Operating humidity:
-
10-90%
Die Casting Aluminum Garden Lamp Pole Waterproof Outdoor LED light 30w 40w 60w 90w IP65 Area Street Post Top fixture Yard Light
100w 150w Outdoor Lighting Modern Quality With Adjustable Angle Lights(old) 400w Led Street Light
Outdoor Post Light with Pier Mount Base Waterproof Pole Lantern Light Fixture Exterior Lamp Post Lantern Head with glass Cover
PRODUCT DESCRIPTION:
- PL-GL-040, available from 30W-150W
~Excellent heat radiation, optical and electrical ability
~Die-cast aluminum body with pure polyester
Electrostatic
spray
~With
4
mm super white toughened glass
~Silicon rubber seal ring
~Stainless screws
~Humanized design concept, easy to install and maintain
~lamps and lantern vertical installation and installed
horizontally, adjustable angle
~IP66
~you can choose lens of type II or III, more than ten kinds lens.
SPECIFICATIONS:
|
Light Parameter |
||
|
Model No |
PL-GL-0 40A |
PL-GL-0 40B |
|
Size |
D 420X551 mm |
420X592X162mm |
|
Holder |
Φ 76 mm |
|
|
Watts |
30~150W |
|
|
Luminous |
130~160 lm /W |
|
|
LED Qty |
192PCS SMD3030 |
|
|
Material |
Aluminum , Lens, Tempered Glass |
|
|
Kelvin |
2700-6500K |
|
|
CRI |
> 70 Ra |
|
|
Lens Angle |
60 ° /90 ° /T2/T3 |
|
|
Driver option |
Inventronics, Meanwell or Peony brand |
|
|
Input Voltage |
100-277 Vac; 50/60Hz; PF>0.9 5 |
|
|
Lifetime |
> 50, 000hours |
|
|
IP /IK Level |
IP6 6/IK08 |
|
|
Package |
50X50X20.5cm |
62.5X47X19.5cm |
|
N.W |
7.20 KG |
6.70 KG |
|
G.W |
8.00 KG |
7.50 KG |
More information, please contact our sales directly.
FAQ
Q: Whether the LED lights really have 50,000 hours lifespan?
A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from
in lab,actual lifespan is only <=30,000hours. Meanwhile it can also be 50,000 hours lifespan if it adopt very good material.
Q: For same power,why different suppliers with different brightness?
A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip
and same brightness version,the brightness will be slight difference.But please make clear the brightness difference
between LEDs and lamp fixture.
Q:What is colour temperature? A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized
in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,
while a cooler (higher color temperature) light is used to enhance concentration in offices.
Q: What is CRI?
A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.
Q: What is PF and efficiency?
A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher cost e other questions, please feel free to contact us, you will get reply at the first time
