Quick Details
-
Brand Name:
-
minderpack
-
Weight (KG):
-
900
-
After-sales Service Provided:
-
Free spare parts
-
After Warranty Service:
-
Online support
Quick Details
-
Grinding Length(mm):
-
380
-
Surface Roughness(μm):
-
1 μm
-
Place of Origin:
-
China
-
Brand Name:
-
minderpack
-
Weight (KG):
-
900
-
After-sales Service Provided:
-
Free spare parts
-
After Warranty Service:
-
Online support
Product Description
Application:
* Single side grinding and polishing for high hardness,thin,and high precision
* metal or nonmetallic.
* Like sapphire substrate, ceramic, optical glass, quartz crystal, silicon wafer, ceramic,wolfram plate, germanium
plate,LGP(light guide plate),light fibre splice,aluminum alloy, Stainless steel, diamond drill for oil production.
* metal or nonmetallic.
* Like sapphire substrate, ceramic, optical glass, quartz crystal, silicon wafer, ceramic,wolfram plate, germanium
plate,LGP(light guide plate),light fibre splice,aluminum alloy, Stainless steel, diamond drill for oil production.
Principle:
* Put the workpiece to the grinding disc, disc rotate, workpieces rotate, pressed by gravity, grind and pol
* The disc reviser is moving under oil floating condition to maintain the disc.
* 1,with grinding fluid circulation system, can control the temperature between 1 degree.
* 2,highly polishing result, can get roughness:Ra0.0002, flatness 0.002.
* 3,cylinder will not drop down when air out, so to avoid injures.
* 4,use PLC and touch screen to control machine, the grinding speed and time can be set directly.
* 5,machine with 3 working station, can grinding and polishing 3 workpieces at one time.
* The disc reviser is moving under oil floating condition to maintain the disc.
* 1,with grinding fluid circulation system, can control the temperature between 1 degree.
* 2,highly polishing result, can get roughness:Ra0.0002, flatness 0.002.
* 3,cylinder will not drop down when air out, so to avoid injures.
* 4,use PLC and touch screen to control machine, the grinding speed and time can be set directly.
* 5,machine with 3 working station, can grinding and polishing 3 workpieces at one time.
Specification
|
Model
|
MDFD-380LX
MDFD-380LP |
MDFD-460LX-3Q
MDFD-460LP-3Q |
MDFD-610LX-3Q
MDFD-610LP-3Q |
MDFD-910LX-3Q
MDFD-910LP-3Q |
MDFD-1320LX-3Q
MDFD-1320LP-3Q |
MDFD-1600LX-3Q
MDFD-1600LP-3Q |
|||||
|
Control method
|
LP: polishing with out grinding disc reviser.
LX: can do grinding and with grinding disc reviser machine integrated. |
|
|
|
|
|
|||||
|
Grinding DISC
|
D380*120*h12mm
|
D460*140*h12mm
|
D610*160*h12mm
|
D910*200*h12mm
|
D1250*200*h12mm
|
D1600*400*h12mm
|
|||||
|
Max material size
|
D170mm
|
D180mm
|
D270mm
|
D450mm
|
D600mm
|
D910mm
|
|||||
|
Grinding speed
|
0-140rpm
|
0-140rpm
|
0-140rpm
|
0-60rpm
|
0-60rpm
|
0-60rpm
|
|||||
|
Reviser DISC
|
D178*140mm*3pcs
|
D220*180mm*3pcs
|
D280*240mm*3pcs
|
D450*410mm*3pcs
|
no
|
no
|
|||||
|
Main motor power
|
0.75kw/3*380V
|
1.5kw/3*380V
|
2.2kw/3*380V
|
7.5kw/3*380V
|
11kw/3*380V
|
15kw/3*380V
|
|||||
|
Revise Speed
|
0-120mm/minute
|
|
|
|
|
|
|||||
|
Dimension(mm)
|
750*700*700
|
1200*1500*1800
|
1200*1650*1750
|
1600*2100*2200
|
2800*1600*1850
|
2450*2050*2550
|
|||||
|
Weight
|
150kg
|
850kg
|
1000kg
|
2550kg
|
2700kg
|
2800kg
|
|||||
Sample

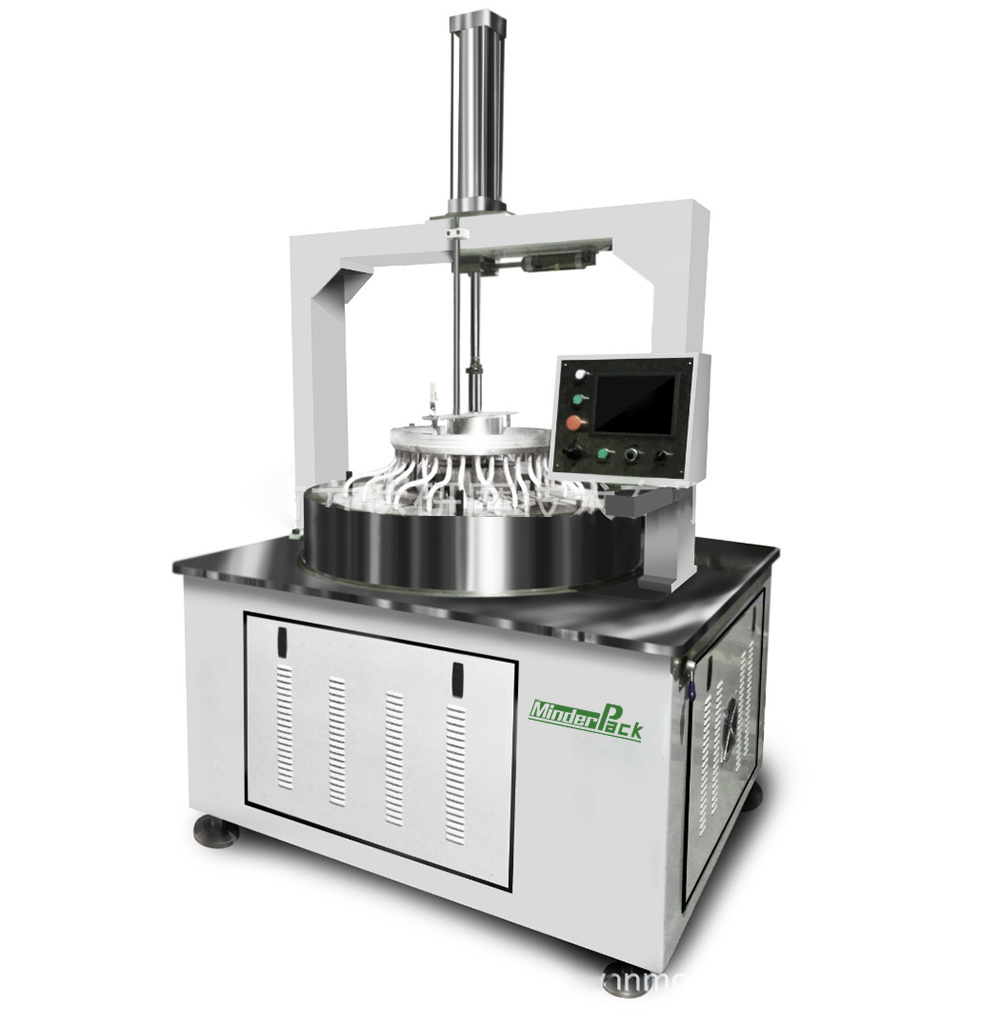

Product details
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Why Choose Us
We have many senior experts in the industry, skilled in craftsmanship, and can provide long-term and perfect technological services.
Pre-sale and after-sale technical support, 7*24 hours engineer service online.
Complete product technical training to ensure that customers use high-quality and stable equipment.
Pre-sale and after-sale technical support, 7*24 hours engineer service online.
Complete product technical training to ensure that customers use high-quality and stable equipment.
