- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
3500*3200*2800mm
-
Year:
-
2024
-
Power (kW):
-
56 kW
-
Weight (KG):
-
6600 KG
-
Key word:
-
rubber grinding machine
-
Name:
-
Fine rubber powder grinding machine
-
Drum diameter:
-
300-560mm
-
Front roll linear:
-
26.2-44m/min
-
Roll speed ratio:
-
1:2.5
-
Max roller spacing:
-
8mm
-
Keyword:
-
tire shredder waste tire recycling machine rubber crusher machine
-
Weight:
-
5-22T
-
Technology:
-
automatic
-
Function:
-
both scrap and new steel can be made
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HVST
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
3500*3200*2800mm
-
Year:
-
2024
-
Power (kW):
-
56 kW
-
Weight (KG):
-
6600 KG
-
Key word:
-
rubber grinding machine
-
Name:
-
Fine rubber powder grinding machine
-
Drum diameter:
-
300-560mm
-
Front roll linear:
-
26.2-44m/min
-
Roll speed ratio:
-
1:2.5
-
Max roller spacing:
-
8mm
-
Keyword:
-
tire shredder waste tire recycling machine rubber crusher machine
-
Weight:
-
5-22T
-
Technology:
-
automatic
-
Function:
-
both scrap and new steel can be made
Product Description

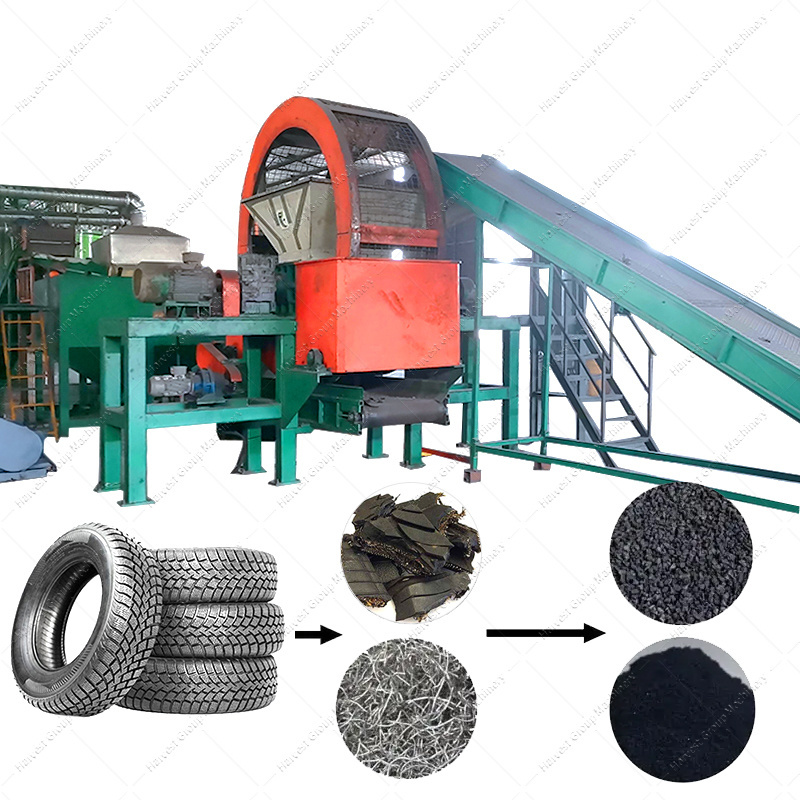

1.WASTE TIRES
2.TIRE SHREDDER
3.RASPER
(separating the steels)
6.FINAL RUBBER
POWDER
5.MILLER
4.GRANULATOR
Applation
TDF system
Produce a 25mm to 152mm (1’’-6’’) rubber chipTire-derived aggregate is made by reducing scrap tires into shreds as a sustainable and cheaper altern…
Rubber mulch system
Rubber Mulch is the smart choice for all mulch and groundcover applications. It looks better 365 days a year, year after year, and it is more durable, …
Rubber granules system
Crumb rubber is made by reducing scrap tires into small, uniform granules. Inherent reinforcing materials, such as steel and fiber, are removed, along with other types of inert contaminants, such as dust, glass or rock.
Rubber powder system
Tire Recyling collection and processing facilities convert automobile,truck,off-road tires even OTR tires into innovative and useful products.
Raw materials:
Waste tires, rubber soles, waste pipes, rubber conveyor belts and other waste rubber products, of which waste tires are the most.
Product Paramenters
|
Model
|
Input size
|
outPut size
|
Capacity
|
Motor
|
Bladesquantity
|
Dimensions
|
Weight
|
|
TS-800
|
800mm
|
50*50mm
|
1-2T/h
|
2*22kw
|
16pcs
|
4*2.6*3.2m
|
8T
|
|
TS-1200
|
1200mm
|
60*60mm
|
3-5T/h
|
2*37kw
|
20pcs
|
4.8*2.8*3.5m
|
14T
|
|
TS-1600
|
1600mm
|
50-15omm
|
6-8T/h
|
2*45kw
|
16-30pcs
|
5*2*3.4m
|
18T
|
|
TS-1800
|
1800mm
|
50-15onmnn
|
7-10T/h
|
2*55kw
|
20-24pcs
|
5.6*2*3.4m
|
23T
|
|
TS-2000
|
2000mm
|
75-200mm
|
10-15T/h
|
2*75kw
|
20-30pcs
|
6*2.4*4m
|
36T
|
|
TS-2400
|
2400mm
|
100-200mm
|
20-30T/h
|
2*110kw
|
16-24pcs
|
7.4*3.2*5.2m
|
56T
|
|
TS-2800
|
2800mm
|
150-250mmm
|
25-35T/h
|
2*160kw
|
16-24pcs
|
7.8*3.4*5.4m
|
75T
|
|
TS-4000
|
4000mm
|
200-300m
|
30-50T/h
|
2*220kw
|
20-30pcs
|
10*4.5*6m
|
120T
|
|
Rasper
|
LK-R315
|
LK-R132
|
LK-R90
|
LK-R75
|
LK-R55
|
LK-R45
|
|
Motor
|
Siemens
|
Siemens
|
Siemens
|
Siemens
|
Siemens
|
Siemens
|
|
Power
|
315kw
|
132kw
|
90kw
|
75w
|
55w
|
45kw
|
|
Voltage
|
As per request
|
As per request
|
As per request
|
As per request
|
As per request
|
As per request
|
|
Cutting chamber
|
697*1562
|
742*1200
|
550*1000
|
550*800
|
450*800
|
45-*600
|
|
Equipment dimensions mm
|
6217*2168*3561
|
2010*2562*4110
|
2095*2180*4105
|
1995*1980*4105
|
1720*1730*2316
|
1400*1200*2260
|
|
Hopper opening
|
1726*877*906
|
1412*902*1410
|
1182*700*1255
|
982*700*1255
|
922*580*916
|
722*580*916
|
|
Equipment weight
|
24000kg
|
6100kg
|
4200kg
|
3500kg
|
1850kg
|
1700kg
|
|
Capacity
|
3-6T/H
|
1.5-3T/H
|
1-1.5T/H
|
700KG-1T/H
|
500-700KG/H
|
300-500KG/H
|
|
Final product
|
10-30mm
|
10-30mm
|
10-30mm
|
10-30mm
|
10-30mm
|
10-30mm
|
|
Granulator
|
LK-G90
|
LK-G45
|
LK-G37
|
LK-R75
|
LK-R55
|
LK-R45
|
|
Motor specifications
|
Electric-Siemens
|
Electric-Siemens
|
Electric-Siemens
|
Siemens
|
Siemens
|
Siemens
|
|
Power
|
90kw
|
45kw
|
37kw
|
75w
|
55w
|
45kw
|
|
Voltage
|
As per request
|
As per request
|
As per request
|
As per request
|
As per request
|
As per request
|
|
Cutting chamber L*W
|
742*1200
|
580*1000
|
580*800
|
550*800
|
450*800
|
45-*600
|
|
Equipment Dimensions
|
2150*2250*2950
|
1765*1900*2435
|
1765*1660*2435
|
1995*1980*4105
|
1720*1730*2316
|
1400*1200*2260
|
|
Equipment weight
|
5600kg
|
3300kg
|
2950kg
|
982*700*1255
|
922*580*916
|
722*580*916
|
|
Hopper opening L*W*H
|
895*1434*1160
|
602*994*916
|
602*794*916
|
3500kg
|
1850kg
|
1700kg
|
|
Capacity
|
800-1500kg/h
|
500-800kg/h
|
300-500kg/h
|
700KG-1T/H
|
500-700KG/H
|
300-500KG/H
|
|
Final product
|
1-6mm
|
1-6mm
|
1-6mm
|
10-30mm
|
10-30mm
|
10-30mm
|
|
Miller
|
LK-M280
|
|
Motor Specifications
|
Electric-Siemens
|
|
Power
|
30Kw*4
|
|
Voltage
|
as per request
|
|
Equipment Dimensions L*W*H
|
2404*1100*1093
|
|
Equipment Weight
|
5000Kg
|
|
Capacity
|
400-600kg/hr
|
|
Final Product
|
30-120 mesh
|
