Quick Details
-
Material:
-
/, FRP+PVC
-
Weight:
-
/
-
Size:
-
/, 1M*1M/1M*0.5M/0.5M*0.5M
-
Power:
-
/
-
Product name:
-

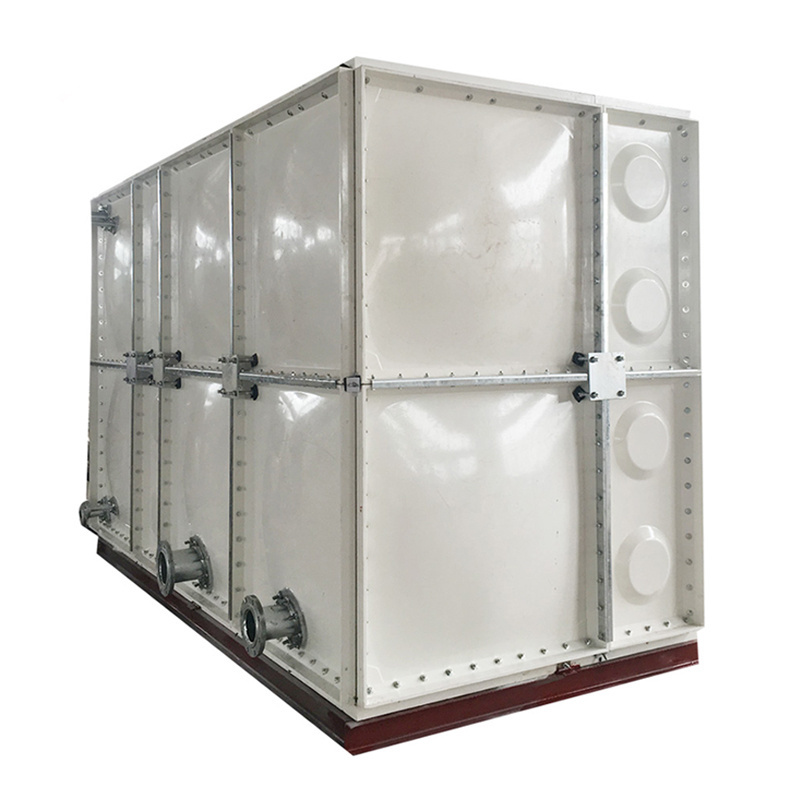

FRP Water Tank
-
Application:
-
Water Storage
-
Type:
-
Ecnomical
-
Color:
-
White
-
Feature:
-
Anti-leaking
-
Raw material:
-
Fiber Glass Reinforced Plastic
-
Advantage:
-
Simple Installation
-
MOQ:
-
1 Cubic Meter
Quick Details
-
Core Components:
-
tank panel
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Longzhuo
-
Material:
-
/, FRP+PVC
-
Weight:
-
/
-
Size:
-
/, 1M*1M/1M*0.5M/0.5M*0.5M
-
Power:
-
/
-
Product name:
-
FRP Water Tank
-
Application:
-
Water Storage
-
Type:
-
Ecnomical
-
Color:
-
White
-
Feature:
-
Anti-leaking
-
Raw material:
-
Fiber Glass Reinforced Plastic
-
Advantage:
-
Simple Installation
-
MOQ:
-
1 Cubic Meter
About water tank,what do you care most?
Safety,durable,reasonable price,convenient installation method,fast delivery time.
1.Accord with GB5740 standard.We gurantee the material safety.
2.With more than 10 thousand test.Already obtained with UAE certificates.Durable is basic principle.
3.Price,with no compromise to quality,we only get small profits,more profits we would like to give our customers.That's why we will keep a long running.
4.About installation,out tank is assembled type,that is easy to transport on the sea.Full installation drawings will be supplied when manufacture,if you are still confuse,then we have guide vedio.
5.Power factory,professional experience,quality control machine,keep a short delivery time.
Quality
guranteed.
With the development of people's life,water quality is always the most important thing that
Longzhuo have same feeling with you.Then we created quality control departments.
1.We have our own national-class Research and Testing Center for compound material which can make sure all the raw material qualified for production.
2.There are many equipments in the testing center such as mechanical testing machine ,
Barcol Impressor, Viscometer, Pendulum impact testing machine , Oxygen index apparatus ,
megger and etc.
2.There are many equipments in the testing center such as mechanical testing machine ,
Barcol Impressor, Viscometer, Pendulum impact testing machine , Oxygen index apparatus ,
megger and etc.
FRP water storage tank,namely Fiberglass reinfored Plastic, also called SMC water tank, namely Sheet Molding Compound,fiberglass water tank, GRP panel water tank, GRP or FRP assembly water tank.
It is made from fiberglass and high quality resin which is a high temperature and high-pressure molded. It is non-harmful and can be easily assembled by bolting them together.
The tank can be assembled precisely according to requirements due to the range of panels available with varying strength,
thickness and dimensions.The panel are designed to meet the highest standards of sanitary storage of potable water.
FRP combined-type water tank is currently used in new international water tank. FRP water tank give the food grade resin
production of FRP sheet material, by high temperature, high pressure, mechanical suppression.
In the manufacturing process, take machine pressure molding production methods. Increased the strength of the earthquake, impact resistance, overcome hand lay-up strength uneven defects, improve the stress strength and service life; In appearance design,plate into the central projection, improve the water tank in the radian bearing pressure ability, increased the water tank capacity.
It is made from fiberglass and high quality resin which is a high temperature and high-pressure molded. It is non-harmful and can be easily assembled by bolting them together.
The tank can be assembled precisely according to requirements due to the range of panels available with varying strength,
thickness and dimensions.The panel are designed to meet the highest standards of sanitary storage of potable water.
FRP combined-type water tank is currently used in new international water tank. FRP water tank give the food grade resin
production of FRP sheet material, by high temperature, high pressure, mechanical suppression.
In the manufacturing process, take machine pressure molding production methods. Increased the strength of the earthquake, impact resistance, overcome hand lay-up strength uneven defects, improve the stress strength and service life; In appearance design,plate into the central projection, improve the water tank in the radian bearing pressure ability, increased the water tank capacity.
FRP Water Tank Accessories
1.1 FRP Panel
The size of the panel is : 1000*1000mm,1000*500mm, 500*500mm;
The thickness of the panel mainly includes: 5mm-16mm,etc. It is different according
to the tank dimension.
The size of the panel is : 1000*1000mm,1000*500mm, 500*500mm;
The thickness of the panel mainly includes: 5mm-16mm,etc. It is different according
to the tank dimension.
1.2 Flanges
The sectional panels shall be pressed to double flanges at the angles of 45 degree and 90 degree to the face of the plate on four sides.We can make it according to your request.
1.3 Reinforcement Method
All tanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water. The Top panel is supported by top panel support, which shall be made of hot-dipped galvanized material.
1.4 Bolt. nut & washers
Hot-dipped galvanized material.
1.5 Sealing material
Non-toxic P.V.C foam tape shall be used in between the joints.
1.6 Covers
The tank cover shall be constructed from 1.4mm to 3.0mm of thickness hot-dipped galvanized material according to the requirement.
1.7 Ladders and Level Indicator
Internal & external ladder shall be made of hot-dipped galvanized.
FRP Water Tank Characteristic
1- Easy to assemble.
2- Made of bottom, side and roof panels and panels with manhole.
3-Tank of different height uses different bottom panels, side panels and top panels strictly according to the assembling
principle.
4-Assembling principle guarantees safety coefficient by reasonable saving of materials.
5-Supports system (tie system) is designed and verified by precise mechanical calculations and tests.
The sectional panels shall be pressed to double flanges at the angles of 45 degree and 90 degree to the face of the plate on four sides.We can make it according to your request.
1.3 Reinforcement Method
All tanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water. The Top panel is supported by top panel support, which shall be made of hot-dipped galvanized material.
1.4 Bolt. nut & washers
Hot-dipped galvanized material.
1.5 Sealing material
Non-toxic P.V.C foam tape shall be used in between the joints.
1.6 Covers
The tank cover shall be constructed from 1.4mm to 3.0mm of thickness hot-dipped galvanized material according to the requirement.
1.7 Ladders and Level Indicator
Internal & external ladder shall be made of hot-dipped galvanized.
FRP Water Tank Characteristic
1- Easy to assemble.
2- Made of bottom, side and roof panels and panels with manhole.
3-Tank of different height uses different bottom panels, side panels and top panels strictly according to the assembling
principle.
4-Assembling principle guarantees safety coefficient by reasonable saving of materials.
5-Supports system (tie system) is designed and verified by precise mechanical calculations and tests.
|
Material
|
GRP/FRP/SMC
|
|
Panel size
|
1*1m,1*0.5m,0.5*0.5m
|
|
Panel thickness
|
4-16mm(tolerance±0.2mm)
|
|
Panel shape
|
Square shape
|
|
Volume
|
1M3 to 1000m³
|
|
Tensile strength
|
≥60Mpa
|
|
Bending strength
|
≥100Mpa
|
|
Physical and chemical properties
|
Bending modulus (Gpa)≥7.0
Pap hardness≥60 Bibulous rate,%≤1.0 Glass fiber content,%≥25 |
|
Leakage
|
No leakage
|
|
Full of water deformation
|
Filled with water, wall maximum deformation after no more
than 1.0%ofthetank bottom center height,no more than 10 mm maximumdeformation |
|
Standard
|
Accord with GB5740
|
Widely
accepted by customer abroad
LONGZHUO water tank had been exported to more than 30 countries,and had been accepted by UAE market.Join 200 projects constructions.
