1. Packaging: 1)Wrapped by protective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
- Product Details
- {{item.text}}
Quick Details
-
Drilling Speed:
-
2m/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yugong
-
Model Number:
-
YG-100
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1740*260*420
-
Weight (KG):
-
300 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service
-
Name:
-
DTH Drilling Machine
-
Application:
-
Railroad Bridge
-
Machine type:
-
Small Hole EDM Drilling Machine
-
Type:
-
Rotary Drilling Rig
-
Drill Diameter:
-
70-130mm
-
Usage:
-
DTH Drilling Rig
-
Air Consumption:
-
6m3
-
Color:
-
Red or customized
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Certification:
-
CE ISO9001
Quick Details
-
type:
-
Drilling & Milling Machine
-
Max. Drilling Dia. (mm):
-
300
-
Range of Spindle Speed(r.p.m):
-
80 - 160 r.p.m
-
Drilling Speed:
-
2m/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yugong
-
Model Number:
-
YG-100
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1740*260*420
-
Weight (KG):
-
300 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service
-
Name:
-
DTH Drilling Machine
-
Application:
-
Railroad Bridge
-
Machine type:
-
Small Hole EDM Drilling Machine
-
Type:
-
Rotary Drilling Rig
-
Drill Diameter:
-
70-130mm
-
Usage:
-
DTH Drilling Rig
-
Air Consumption:
-
6m3
-
Color:
-
Red or customized
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Certification:
-
CE ISO9001
Product Description

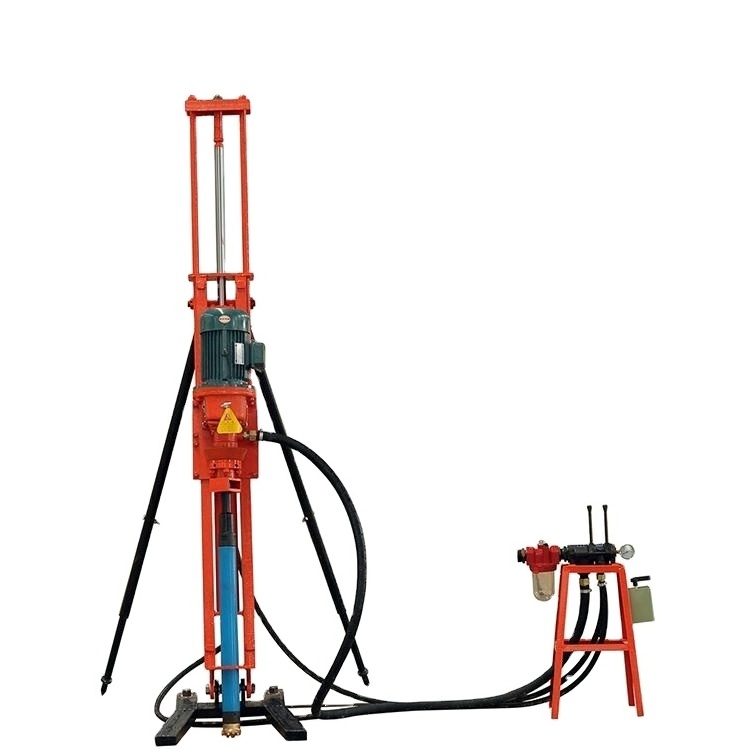

Best Seller Hydraulic Bore Hole
DTH Exploration Rock Blasting Drilling Machine
Down the hole drilling rig is one of the impact rotary drilling rig. It is driven by electric motor and air compressor, with impactor, drill rods and bits, it can be used to drill rocks, stones, soil, clay, etc. to drill water well, borehole, grouting hole and for core sample test in mining and road construction, water conservancy, grouting foundation, national defense and other drilling projects. It can drill horizontally, vertically or in any angles if we fixed it on the ground, platform, slope or frames. It’s our necessary and ideal tool in drilling work.
|
Model
|
YG-70
|
YG-100
|
YG-120
|
|
Drilling Diameter
|
60-90mm
|
90-150mm
|
90-150mm
|
|
Drilling Depth
|
≤15m
|
≤25m
|
≤40m
|
|
Motor (Customized)
|
380V, 50Hz, 3Phases
|
380V, 50Hz, 3Phases
|
380V, 50Hz, 3Phases
|
|
Power
|
3kw
|
4kw
|
4kw
|
|
Rated Speed
|
1440r/min
|
1440r/min
|
1440r/min
|
|
Drill Rod Diameter
|
42mm
|
50mm
|
50mm
|
|
Drill Rod Length
|
1m
|
1m
|
1m
|
|
Impactor Diameter
|
70mm
|
90mm
|
90mm
|
|
Air Consumption
|
4m3/min
|
6m3/min
|
10m3/min
|
|
Rotation Speed
|
110r/min
|
110r/min
|
110r/min
|
|
Propel Stroke
|
1070mm
|
1070mm
|
1070mm
|
|
Dimension
|
1740*260*420mm
|
2080*320*550mm
|
2080*320*550mm
|
|
Weight
|
320kg
|
470kg
|
480kg
|
Impactor
Motor
Console
Operation of DTH Drilling Machine
Our DTH Drilling Machine can drill vertically, horizontally or in any angles if you fix the machine well.
