Quick Details
-
Brand Name:
-
EASUN POWER
-
Model Number:
-
ICharger MPPT 8048 10048
-
Work Time (h):
-
Always
-
Max PV Power:
-
4800W/48V
-
Max PV Voltage:
-
150VOC
-
Certificate:
-
CE
-
Warranty:
-
2 Years
-
System Voltage:
-
12/24/36/48/Auto
-
Charging mode:
-
3-stage: constant current(MPPT), constant voltage, floating
-
Limited current protection:
-
80A 100A
-
Battery Type:
-
GEL SEL FLD USE LI
-
Product name:
-

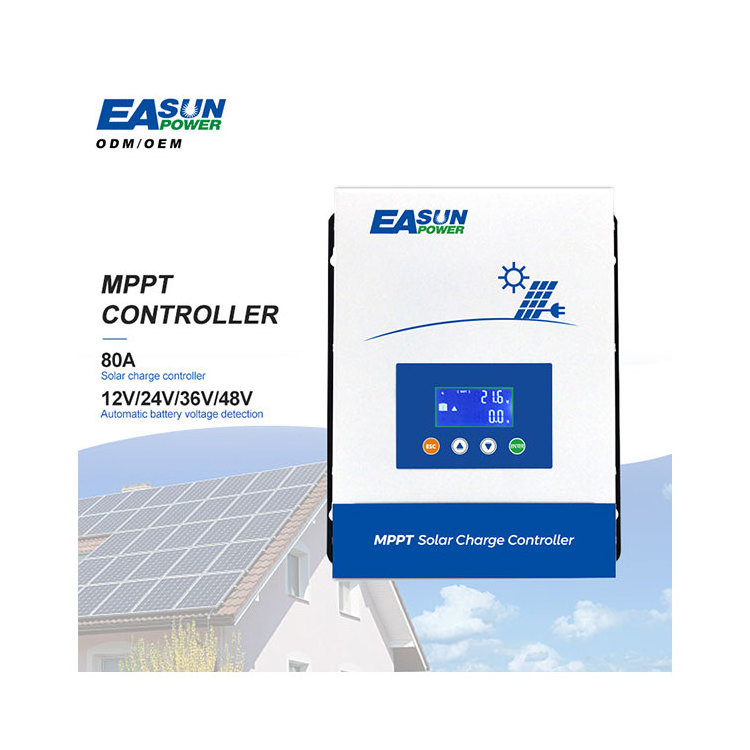

MPPT Hybrid Solar Charge Controller
-
WEIGHT:
-
2.5KG
-
Display:
-
Backlight
-
Size:
-
252*201*80.3 mm
-
MPPT efficiency:
-
99%
-
Model:
-
80A 100A MPPT solar charge controller
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar System Controller, Current controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EASUN POWER
-
Model Number:
-
ICharger MPPT 8048 10048
-
Work Time (h):
-
Always
-
Max PV Power:
-
4800W/48V
-
Max PV Voltage:
-
150VOC
-
Certificate:
-
CE
-
Warranty:
-
2 Years
-
System Voltage:
-
12/24/36/48/Auto
-
Charging mode:
-
3-stage: constant current(MPPT), constant voltage, floating
-
Limited current protection:
-
80A 100A
-
Battery Type:
-
GEL SEL FLD USE LI
-
Product name:
-
MPPT Hybrid Solar Charge Controller
-
WEIGHT:
-
2.5KG
-
Display:
-
Backlight
-
Size:
-
252*201*80.3 mm
-
MPPT efficiency:
-
99%
-
Model:
-
80A 100A MPPT solar charge controller
We support OEM/ODM PWM MPPT 10A-100A, welcome place sample order.
Main feature:
* 80A 100A MPPT Solar Charge controller* MPPT technology
* 3-stage charging optimizes battery performance
* Automatic OVP, Battery LDV, Solar OVP, overcharge, over-temperature, Reverse polarity protection
* Support RS485 Communication with Modbus protocol
* Suitable for battery types such as Lead-acid AGM/GEL/Flooded & Lithium battery, Easy to be mounted.
* 80A 100A MPPT Solar Charge controller* MPPT technology
* 3-stage charging optimizes battery performance
* Automatic OVP, Battery LDV, Solar OVP, overcharge, over-temperature, Reverse polarity protection
* Support RS485 Communication with Modbus protocol
* Suitable for battery types such as Lead-acid AGM/GEL/Flooded & Lithium battery, Easy to be mounted.
Specification
|
Models
|
ICharer MPPT 8048
|
ICharger MPPT 10048
|
|
Charging Mode
|
3-stage: Constant Current(MPPT),Constant Voltage, Floating
|
3-stage: constant current(MPPT), constant voltage, floating
|
|
System Voltage
|
12/24/36/48/Auto
|
12/24/36/48/Auto
|
|
Max PV I nput Power
|
1200W/12V;2400W/24V;3600W/36V;4800W/48V
|
1500W/12V; 3000W/24V; 4500W/36V; 6000W/48V
|
|
Max PV Input Voltage
|
150 Voc
|
150 Voc
|
|
Battery Voltage Autom
atic Recognition |
12V System(DC8.7V-DC15.SV) 24V System(DC16V-DC31V)
36V System(DC33V -DC41V} 48V System(DC42V -DC64V) |
12V System(DC8.7V-DC15.5V); 24V System(DC16V-DC31V);
36V System(DC33V -DC41V); 48V System(DC42V-DC64V) |
|
Overcharging Protection Voltage |
12V System(16V) 24V System(32V) 36V System(48V)
48V System(64V) |
12V System(16V); 24V System(32V); 36V System(48V); 48V System(64V)
|
|
Lim ited Current Protection
|
80 A
|
100A
|
|
Max Efficiency
|
≥98.1%
|
80A
|
|
PV Utilization
|
≥99%
|
≥98.1%
|
|
Auto Temperature Compensation
|
-3mV/2V/℃
|
≥99%
|
|
Temperature Protection
|
80℃
|
80℃
|
|
Fan-on Temperature
|
>45℃
|
>45℃
|
|
Fan-off Temperature
|
<40℃
|
<40℃
|
|
Size(mm)
|
247.3*201*80.3
|
252*201*80.3
|
|
NeWt eight(Kg)
|
2.05
|
2.49
|
|
Electromagnetic Compatibility
|
Accord to EN61000, EN550 22, EN550 24
|
Accord to EN61000, EN55022, EN55024
|
|
Enclosure
|
IP21
|
IP21
|
|
Environm ental Temperature
|
-20°C~＋55°C
|
-20℃ ~ +55℃
|
|
Storage Temperature
|
-40°C~＋75°C
|
-40℃ ~ +75℃
|
