Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
NanYun
-
Voltage:
-
customized
-
Dimension(L*W*H):
-
customized
-
Weight (KG):
-
50 kg
-
After-sales Service Provided:
-
Video technical support
-
Type:
-
Roller Conveyor
-
Certification:
-
ISO, CE
Quick Details
-
Power:
-
60w
-
Warranty:
-
1 Year
-
Width or Diameter:
-
customized
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
NanYun
-
Voltage:
-
customized
-
Dimension(L*W*H):
-
customized
-
Weight (KG):
-
50 kg
-
After-sales Service Provided:
-
Video technical support
-
Type:
-
Roller Conveyor
-
Certification:
-
ISO, CE
Product Description
ROLLER CONVEYOR
CHAIN CONVEYOR
BELT CONVEYOR
A conveyor system is a fast and efficient mechanical handling apparatus for automatically transporting loads and materials within an area. This system minimizes human error, lowers workplace risks and reduces labor costs among other benefits. They are useful in helping to move bulky or heavy items from one point to another. A conveyor system may use a belt, wheels, rollers, or a chain to transport objects.
There are many types of conveyor systems, including:
* Belt
* Roller
* Slat/apron
* Ball transfer
* Overhead
* Pneumatic
* Bucket
* Chute
* Magnetic
* Vertical
* Wheel
* Walking beam
* Vibrating
* Screw/auger
* Chain
* Belt
* Roller
* Slat/apron
* Ball transfer
* Overhead
* Pneumatic
* Bucket
* Chute
* Magnetic
* Vertical
* Wheel
* Walking beam
* Vibrating
* Screw/auger
* Chain
Product Paramenters
Roller Conveyor
|
Model
|
OEM
|
|
Roller diameter
|
76 or 89mm
|
|
Roller material
|
galvanized steel
|
|
Max Loading
|
10-1000kg
|
|
Turntable diameter
|
2000mm
|
|
Table height
|
500mm adjustable (also can be customized)
|
|
Frame material
|
U shape steel/carbon steel
|
|
Voltage
|
220V single phase
|
|
Motor power
|
0.75-1.5KW 50HZ/60HZ
|
|
Conveyor length
|
As your requirements or depend on your pallet size
|
|
Conveyor speed
|
10-15m/min
|
|
Control system
|
As Required
|
|
Conveyor wide
|
Customeried
|
|
Drive type
|
Motor driven
|
Chain Conveyor
|
Model
|
OEM
|
|
Drive type
|
Chain
|
|
Width of conveyor
|
belt width+ 100mm (also can be customized)
|
|
Length of conveyor
|
belt length+ 1000mm (also can be customized)
|
|
Height of conveyor
|
350mm-950mm (also can be customized)
|
|
Power of Motor
|
0.75kw
|
|
Table height
|
500mm adjustable (also can be customized)
|
|
Conveyor speed
|
5-15m/min
|

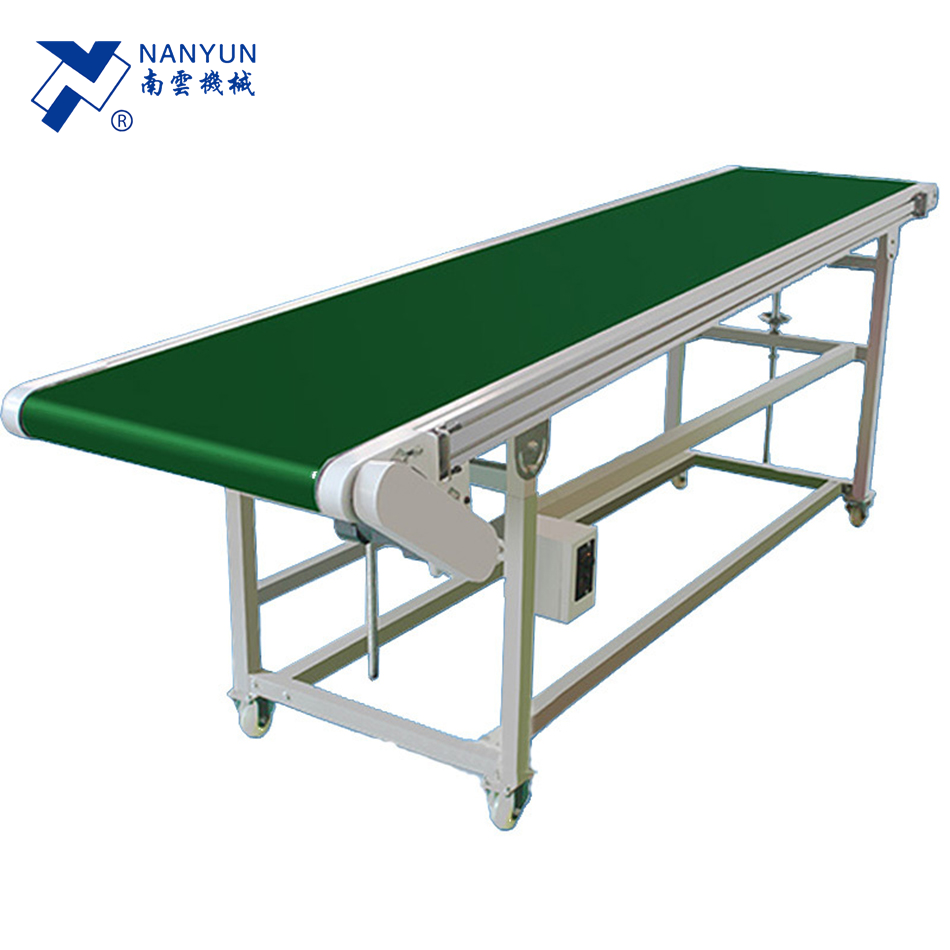

Belt Conveyor
|
Model
|
OEM
|
|
Power
|
60-240W (optional)
|
|
Belt width
|
100-700mm ( also can be customized）
|
|
Belt thickness
|
2mm
|
|
Transmission speed
|
10-30 meters/min
|
|
Size
|
1500*250*750mm ( also can be customized）
|
|
Pearing capacity
|
5-20 kg
|
|
Material
|
Stainless Steel
|
|
Power consumption
|
< 60-240 W
|
|
Electricity demand
|
AC 110V or 220V, 50Hz/60Hz
|
