Quick Details
-
Place of Origin:
-
Shandong, China
-
Weight:
-
1600 KG
-
Diameter:
-
4-100mm
-
material:
-
pp pe
-
color:
-
red/white/blue/green, customized
-
technology:
-
twisted
-
formation:
-
coil/bundle/reel/hank
-
packing:
-
woven bag/carton box/pallet
-
usage:
-
binding, packaging, agriculture, home use
-
type:
-
fibering, fibration, split-film, flat film
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
33:1
-
Screw Speed (rpm):
-
3500 rpm
-
Place of Origin:
-
Shandong, China
-
Weight:
-
1600 KG
-
Diameter:
-
4-100mm
-
material:
-
pp pe
-
color:
-
red/white/blue/green, customized
-
technology:
-
twisted
-
formation:
-
coil/bundle/reel/hank
-
packing:
-
woven bag/carton box/pallet
-
usage:
-
binding, packaging, agriculture, home use
-
type:
-
fibering, fibration, split-film, flat film
Product Description
Specification

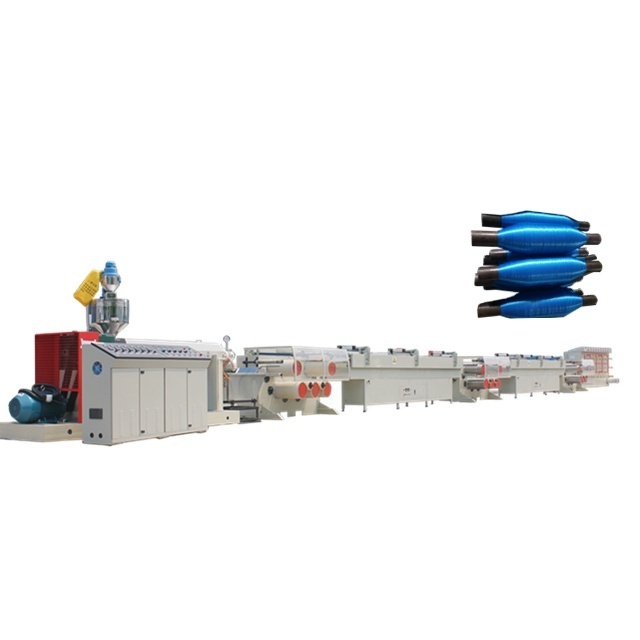

This machine is mainly for Raffia yarn, fibrillated yarn, baler twine and rope production. The line is designed and manufactured by introducing and absorbing Europe advanced techniques.
|
Item
|
RMSJ-70
|
RMSJ-80
|
RMSJ-90
|
|
T-Die Width
|
600mm
|
800mm
|
1000mm
|
|
Dia of Screw
|
70mm
|
80mm
|
90mm
|
|
Ratio of L/D
|
30
|
33
|
33
|
|
Rotation Speed of Screw
|
20-90r/min
|
20-90r/min
|
20-90r/min
|
|
Drawing Ratio
|
4--10
|
4--10
|
4--10
|
|
Power Consumption
|
100kw/60kw
|
130kw/80kw
|
150kw/100kw
|
|
Max Output capacity
|
1200kg/24h
|
2100kg/24h
|
3000kg/24h
|
|
Machine Dimension(L*W*H)
|
25m*2m*2m
|
26m*2.2m*2.1m
|
27m*2.2m*2m
|
Performance & Advantages:
1) Simple structure in linear type ,easy in installation and maintation.
Take up small area. Easy operation. High output capacity.
2) Screw and barrel are made of nitride steel 38CrMoAl with special hardening, with a good corrosion resistance and wear resistance
3)AC Invertor & Motor which synchronizes the entire extruder
4)Latest technology used to force the melt into the die very effectively
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine
Screw and barrel are made of nitride steel 38CrMoAl with special hardening, with a good corrosion resistance and wear resistance
Latest technology used to force the melt into the die very effectively
AC Invertor & Motor which synchronizes the entire extruder
Roller Stretching Machine
Hot Wind Oven
Winding Machine
