Quick Details
-
Model Number:
-
HYAL20
-
Place of Origin:
-
Shanghai, China
-
Outlet Size:
-
1/2"
-
Standard or Nonstandard:
-
Standard
-
OEM:
-
Applicable
-
Warranty:
-
1 Year Warranty(except Wearing Parts)
-
Advantages:
-
Zero leak , stall-free ,ice-free ,etc
-
Max head:
-
84m
-
Max flow rate:
-
57L/min
-
Max suction lift:
-
Dry 4m; wet 7.6m
-
Usage:
-
chemical/coating/oil/ water etc.
Quick Details
-
Application:
-
Mining industry, Washing and Cleaning, wastewater treatment, Water Treatment Solutions
-
Pressure:
-
8.4Bar, Low Pressure
-
Brand Name:
-
Haoyang
-
Model Number:
-
HYAL20
-
Place of Origin:
-
Shanghai, China
-
Outlet Size:
-
1/2"
-
Standard or Nonstandard:
-
Standard
-
OEM:
-
Applicable
-
Warranty:
-
1 Year Warranty(except Wearing Parts)
-
Advantages:
-
Zero leak , stall-free ,ice-free ,etc
-
Max head:
-
84m
-
Max flow rate:
-
57L/min
-
Max suction lift:
-
Dry 4m; wet 7.6m
-
Usage:
-
chemical/coating/oil/ water etc.

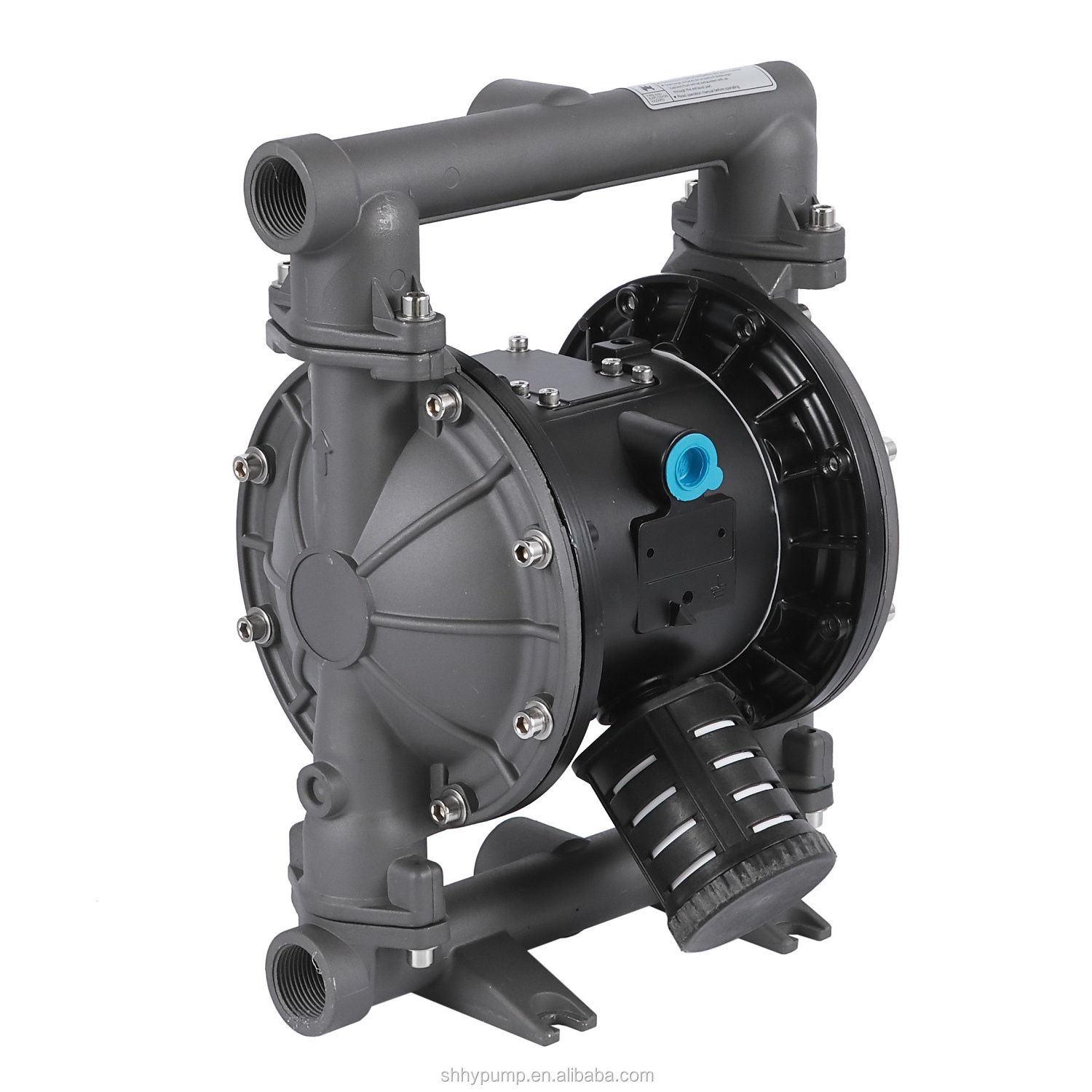

Teflon Diaphragm Pneumatic Paint Transfer Pump
|
HY
Air-Operated Diaphragm Pump
Features
|
HY Air Operated Diaphragm Pump Advantages:
1.
Providing stall-free, ice-free operation
2.
Idling ,self-priming ,submerse capability
.
3.Offering the ability to vary the flow outlet and
discharge pressure .
Pneumatic Diaphragm Pump Advantages:
- Idling ,Self-priming , Submerse capability.
- Provide stall-free, ice-free zero leak operation.
- Epoxy-coated air section for tough environmental conditions.
- Low shear force , not easy to damage the material structure.
- Bolt joint design provides even sealing pressure for optimal performance
- Modular air valve,low pulsation operation,providing smooth and rapid changeover.
- No electricity . It's safe and realiable while using in the flammable and explor place .
- Diversity of material,no rotating parts,applicable to various erosive situations.
- Can pump corrosive , volatile, flammable, poisonous fluids with particles and high viscosity.
- Delivery lift and flow can pass the pneumatic valve open to realize the stepless adjustment.
| HY Air-Operated Diaphragm Pumps Selection |
HY AODD pumps offers many materials of construction,such as aluminum, stainless steel, pp, pvdf , etc. All AODD
pumps are available with imported diaphragm, ball and ball seat offering long product life and reduced maintenance.
OEM/ODM are available ,products can be customized according to your requirements.
| HY Air-Operated Diaphragm Pump Application |
HY AODD pumps have excellent properties for pumping paint mixture and adding pigments. Also varnish and laminate can be pumped without problems. Throughout the paint and lacquers manufacturing process air operated double diaphragm pumps are commonly used.
HY AODD Pumps are also used to fill vials, bottles or cans with paint. Also widely used in the paint process industry ,eg as a feed pump for paint spraying guns.
2. The pump can suck the paint, pigment, glue and adhesive etc.
3. The pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
4. The pump can suck various grinding materials, corrosive agent and clean the oil dirt etc.
5. The pump can suck various toxin and flammable or volatility liquid etc.
6. The pump can suck various wedge water, cement slurry and mortar etc.
7. The pump can suck various strong acid, alkali and corrosive liquid etc.
8. It can be used as a front-step tranmission device of the solid and liquid separation equipment.
| HY Air-Operated Diaphragm Pump Installation |
HaoYang AODD pumps are suitable for an endless variety of applications . Our pumps can be deployed in fixed installations within a process flowsystem, or used as portable or mobile units that can be transported to where it is to be used.
|
Pump, self-priming
|
Pump with positive suction
|
|
Pump, submerged
|
Pump for drums
|
