Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
SR
-
Model Number:
-
SR056
-
Product name:
-
Fiber foamglass block
-
Raw Material:
-
Glass fiber
-
Density:
-
120kg/Cbm
-
Color:
-
black/dark grey
-
Thickness:
-
40
-
Thermal Conductivity:
-
0.033-0.045
-
Length:
-
600mm
-
Width:
-
500mm
-
Refractoriness:
-
A
-
Samples:
-
Available
Quick Details
-
Project Solution Capability:
-
graphic design, Others
-
Application:
-
Sports Venues
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
SR
-
Model Number:
-
SR056
-
Product name:
-
Fiber foamglass block
-
Raw Material:
-
Glass fiber
-
Density:
-
120kg/Cbm
-
Color:
-
black/dark grey
-
Thickness:
-
40
-
Thermal Conductivity:
-
0.033-0.045
-
Length:
-
600mm
-
Width:
-
500mm
-
Refractoriness:
-
A
-
Samples:
-
Available

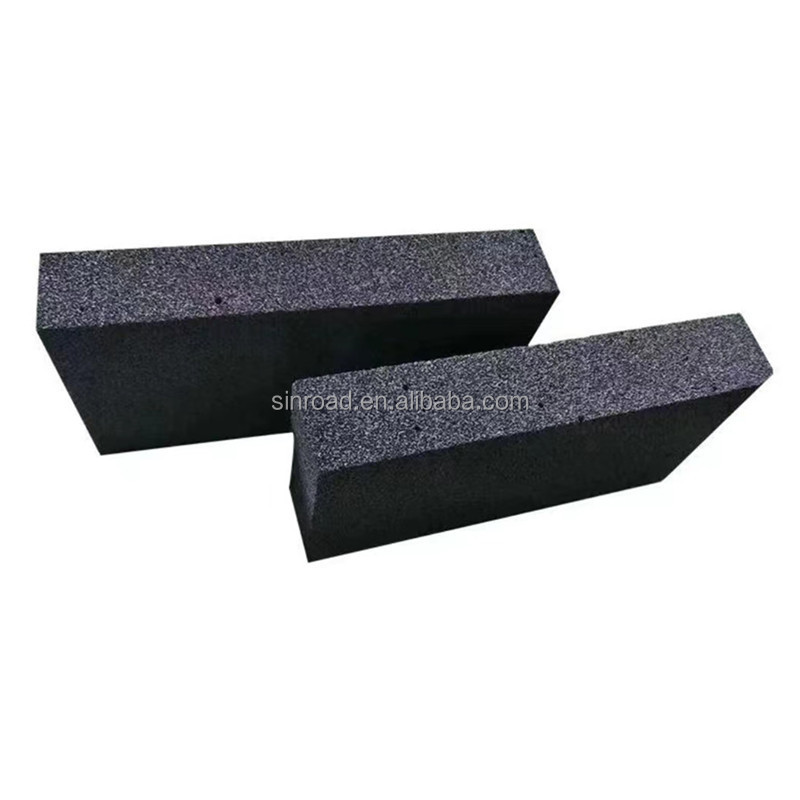

Fiber Foam glass insulation block
1. Materials
Foam glass insulation board is an inorganic non-metallic glass material made of cullet, foaming agent, modified additives and foaming accelerator, which are finely powdered and evenly mixed, and then melted, foamed and annealed at high temperature. It is composed of a large number of uniform bubble structures with a diameter of 1-2 mm.
2. Application
The foam glass insulation board has the characteristics of light weight, low thermal conductivity, low water absorption, non-burning, non-mildew, high strength, corrosion resistance, non-toxic, physical and chemical properties.
*petroleum,
*chemical industry,
*underground engineering,
*national defense engineering and other fields
3. Specification
Rock wool board standard size
|
L × W: |
600 × 500/300 (mm) |
|
Thickness: |
30 ~ 150 (mm) |
|
Nom. density: |
80 ~ 140 kg/m 3 |
4.TECHNICAL DATA SHEET
| S No. | Test Item | Testing base | Standard | Result | ||||
| 1 | Burning performance A(A1) grade | non-flammable | Furnace heating, ℃ | GB/T 5464-2010 | ≤30 | 11 | ||
| Burn time,S | GB/T 5464-2010 | 0 | 0 | |||||
| mass loss rate,% | GB/T 5464-2010 | ≤50 | 3.5 | |||||
| 2 | Dimensions and their tolerances | Length | GB/T 5486-2008 | ± 3 | +2 | |||
| Width | GB/T 5486-2008 | +1 | ||||||
| Thickness | GB/T 5486-2008 | 0--2.0 | +1 | |||||
| 3 | Density, kg/m3 | GB/T 5486-2008 | // | 122 | ||||
| 4 | Thermal conductivity(average temperature 25±2 ℃ , W/(m.k) | GB/T 10295-2008 | ≤0.045 | 0.043 | ||||
| 5 | Compressive strength,Mpa | JC/T 647-2014 | ≥0.50 | 0.61 | ||||
| 6 | Flexural Stength,Mpa | JC/T 647-2014 | ≥0.40 | 0.45 | ||||
| 7 | Moisture permeability coefficient,ng/(Pa.s.m) | GB/T 17146-2015 | ≤0.007 | 0.007 | ||||
| 8 | Tensile strength perpendicular to the board surface,Mpa | JC/T 647-2014 | ≥0.12 | 0.21 | ||||
| 9 | Dimensional stability(70±2 ℃ , 48h),% | Length | GB/T 8811-2008 | ≤0.3 | 0.2 | |||
| Width | GB/T 8811-2008 | ≤0.3 | 0.2 | |||||
| Thickness | GB/T 8811-2008 | ≤0.3 | 0.3 | |||||
| 10 | Water absorption,kg/m2 | JC/T 647-2014 | ≤0.3 | 0.2 | ||||
| 11 | Alkali resistance,kg/m2 | JC/T 647-2014 | ≤0.5 | 0.3 | ||||
5. Packing & Shipping
|
Sample time |
3-5 business days |
|
Lead time |
7-40 business days after sample is comfirmed |
|
Port |
Tianjin, China |
|
Payment |
T/T, L/C West Union |
6. Usage of foamglass block
7. Factory pictures shows:
