Full-automatic Hot Melt Fiberglass coating machine For Fiber Fabric Tape With Glue Tank Hot Melt Adhesive Laminating Coater
Full-automatic Hot Melt Fiberglass coating machine For Fiber Fabric Tape With Glue Tank Hot Melt Adhesive Laminating Coater
Full-automatic Hot Melt Fiberglass coating machine For Fiber Fabric Tape With Glue Tank Hot Melt Adhesive Laminating Coater
Full-automatic Hot Melt Fiberglass coating machine For Fiber Fabric Tape With Glue Tank Hot Melt Adhesive Laminating Coater
Full-automatic Hot Melt Fiberglass coating machine For Fiber Fabric Tape With Glue Tank Hot Melt Adhesive Laminating Coater
Full-automatic Hot Melt Fiberglass coating machine For Fiber Fabric Tape With Glue Tank Hot Melt Adhesive Laminating Coater
Full-automatic Hot Melt Fiberglass coating machine For Fiber Fabric Tape With Glue Tank Hot Melt Adhesive Laminating Coater
Full-automatic Hot Melt Fiberglass coating machine For Fiber Fabric Tape With Glue Tank Hot Melt Adhesive Laminating Coater

Full-automatic Hot Melt Fiberglass coating machine For Fiber Fabric Tape With Glue Tank Hot Melt Adhesive Laminating Coater

FOB Reference Price: Get Latest Price
≥1 Sets
US $33000
≥2 Sets
US $32000
≥3 Sets
US $31000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Dimension(L*W*H):
5000MM*1400MM(L*H)
Weight:
3500 KG, 3000-7000 KG
Working speed:
50m/min, 100m/min(optional)
Coating method:
slot die(knife coating)
coating weigh:
10-200g/m2
Glue type:
Hotmelt
Coating material:
PET.CPP.CPE.nylon.aluminum Foil.paper
Product name:
Laminating Machine
Coating speed:
10-120m/min
Rewind diameter:
700mm
Unwind diameter:
1000mm

Quick Details

Voltage:
380V
Place of Origin:
Zhejiang, China
Brand Name:
Jiayuan
Dimension(L*W*H):
5000MM*1400MM(L*H)
Weight:
3500 KG, 3000-7000 KG
Working speed:
50m/min, 100m/min(optional)
Coating method:
slot die(knife coating)
coating weigh:
10-200g/m2
Glue type:
Hotmelt
Coating material:
PET.CPP.CPE.nylon.aluminum Foil.paper
Product name:
Laminating Machine
Coating speed:
10-120m/min
Rewind diameter:
700mm
Unwind diameter:
1000mm
Product Description

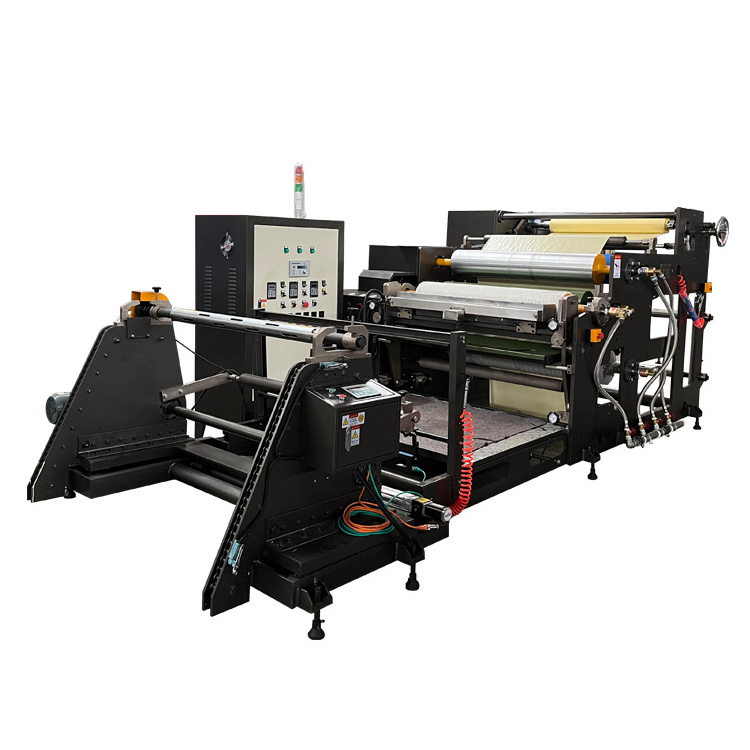

JYT-B the fiberglass tape coating machine

1.The main machine speed and glue supply speed can be adjusted manually or tracked synchronously
2. Intelligent PID temperature control system, temperature error controlled at 1 ℃
3. All active rollers and passive rollers are adjusted by high-precision balanceable device
4. Reasonable installingtechnology makes sure the machine runs stably, low noise, laminating materials no- crinkling
5. High precision alloy die and high-precision metering gear pump ensure coating quality
6. Using a fiber spray system, it is possible to achieve the composite of PE film and nonwoven fabric, suitable for the composite of special filter materials, footwear and clothing materials, medical materials, etc. The fiber spray amount is small, uniform and delicate, with breathability
range of application:
Our products extensive used in adhesive products. adhesive label、medical tape、disposable wemen and children product.shoe material、hot melt film、non woven fabric、functional clothes compound fabric. auto industry、packaging industry. household appliances、furniture、bookbinding and other industrial circle.

Bestseller JYT-B:

JYT-B is one of the best-selling hot melt adhesive coating equipment, deeply loved by domestic and foreign customer groups, and unanimously praised by buyers. Products sell well in over 80 countries and regions worldwide
Model
JYT-B   Hot melt adhesive coating machine
coating width
400-2000mm
coating weigh
10-200g/m 2
coating speed
50m/min
corre device
2sets
lenghth
5000mm
height
1400mm
Specification
item
value
Type
Coating Machine
Applicable Industries
Food & Beverage Factory, Printing Shops, tape
Showroom Location
None
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Warranty of core components
1 Year
Core Components
Bearing, Gear, Pump
Condition
New
Application
Machinery & Hardware
Automatic Grade
Automatic
Driven Type
Electric
Voltage
380V
Packaging Type
wooden case
Packaging Material
film
Place of Origin
Zhejiang, China
Brand Name
Jiayuan
Dimension(L*W*H)
5000MM*1400MM(L*H)
Weight
3500KG
Warranty
1 Year
Key Selling Points
Multifunctional
Working speed
50m/min, 100m/min(optional)
Coating method
slot die(knife coating)
Function
Coating Making
Glue type
Hotmelt
After Warranty Service
Video technical support
After-sales Service Provided
Video technical support
Coating material
PET.CPP.CPE.nylon.aluminum Foil.paper
Constant tension controller
optional
Product name
Laminating Machine
Type
New Product 2023
Product advantage
Scratch-free gluing


Accurate gluing


PLC glue quantity synchronous tracker


Frequency conversion control


Non-stop rewinding


Adjust any width
