Quick Details
-
Certification:
-
CE
-
Power Source:
-
Tractor driven
-
Matched power:
-
40-80HP
-
Power Type:
-
PTO driven
-
Cutting Width:
-
1400-2200mm
Quick Details
-
Type:
-
Rotary Mowers
-
Feature:
-
Other
-
Place of Origin:
-
Shandong, China
-
Certification:
-
CE
-
Power Source:
-
Tractor driven
-
Matched power:
-
40-80HP
-
Power Type:
-
PTO driven
-
Cutting Width:
-
1400-2200mm
| reach 90-degree, the side can be revised to left side flail mower gearbox |

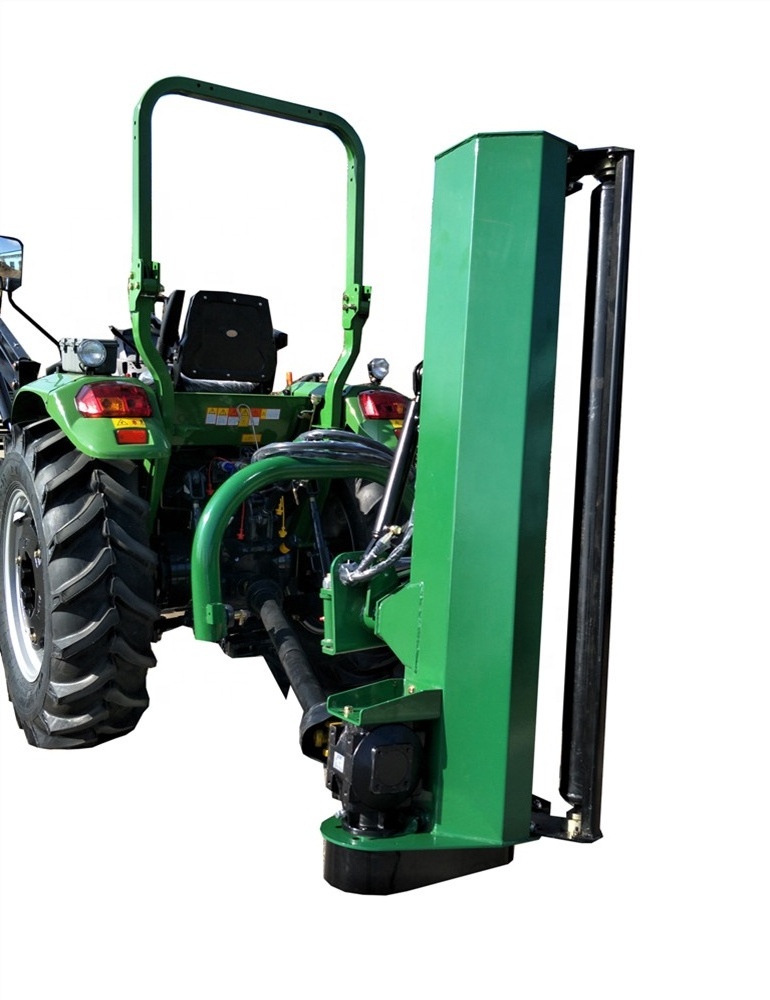

The side flail mower do well in the sloping grassland and hil l land, besides garden, farmland, orchard is available. It is more convenient in different areas.
The angle can be adjusted as request by hydraulic system, the max. angle can reach 90 degree, the side can be revised to left side as request.
Feature of frail grass cutting machine
1.Certification:CE Approved
2.Well-known In Europe
3.Low Shock And Noise
4.Change Color Upon Request
5.High Welding Processes And Surface Quality
6.Side Skids
7.Cast-iron Gearbox With Free Wheel
8.Sturdy Toothed Belts
9.Double Hitches
10.Adjustable Rear Roller With Mud Scraper
11.Front Protection Bulkheads
12.Adjustable Tensioner
13.Electronically balanced rotor
14.High blade tip speed to ensure perfect cutting
Specification of frail grass cutting machine
|
MODEL |
BCR -140 |
BCR -180 |
BCR -2 0 0 |
BCR -220 |
|
Dimension(L×W×H) (mm) |
1800×2225×1020 |
2200×2225×1020 |
2 050 ×2225×1020 |
2600×2225×1020 |
|
Structure Weight (kg) |
598 |
658 |
7 1 8 |
738 |
|
Cutting Width (mm) |
1400 |
1800 |
2 0 00 |
2200 |
|
PTO Turning Speed ( r/min ) |
540 |
540 |
540 |
540 |
|
PTO Spline (mm) |
6×8×1600 |
6×8×160 0 |
6×8×1600 |
6×8×1600 |
|
Tractor ( HP ) |
40- 70 |
50-70 |
55- 85 |
60 - 100 |
Details photo:
Hammer blades:
PTO shaft:
Shipping of flail mower
