Hot Sale 1080P30 HDMI SRT Video Encoder H.265 H.264 HDMI Live Streaming Encoder
Hot Sale 1080P30 HDMI SRT Video Encoder H.265 H.264 HDMI Live Streaming Encoder
Hot Sale 1080P30 HDMI SRT Video Encoder H.265 H.264 HDMI Live Streaming Encoder
Hot Sale 1080P30 HDMI SRT Video Encoder H.265 H.264 HDMI Live Streaming Encoder
Hot Sale 1080P30 HDMI SRT Video Encoder H.265 H.264 HDMI Live Streaming Encoder
Hot Sale 1080P30 HDMI SRT Video Encoder H.265 H.264 HDMI Live Streaming Encoder
Hot Sale 1080P30 HDMI SRT Video Encoder H.265 H.264 HDMI Live Streaming Encoder
Hot Sale 1080P30 HDMI SRT Video Encoder H.265 H.264 HDMI Live Streaming Encoder

Hot Sale 1080P30 HDMI SRT Video Encoder H.265 H.264 HDMI Live Streaming Encoder

FOB Reference Price: Get Latest Price
≥1 Pieces
US $119
≥5 Pieces
US $115
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Product name:
Mini H.265 HDMI Video Encoder
Input:
HDMI 1.4*1, Audio*1
Output:
RJ45*1, HDMI 1.4*1
Video Stream:
Up to 2 Video Streams Output Simultaneously
Video Encoding:
H.265&H.264/MJPEG
Audio encoding:
ACC, MP3, G711
HDCP:
HDCP 1.4
RJ45:
100M Ethernet port
Program streaming:
SRT, HTTP, RTSP, RTMP, RTMPS, UDP, RTP, HLS(M3U8), Multicast
Control Panel:
Web panel (Language is English), remote upgrade

Quick Details

Place of Origin:
China
Brand Name:
ORIVISION
Model Number:
EH1201
Product name:
Mini H.265 HDMI Video Encoder
Input:
HDMI 1.4*1, Audio*1
Output:
RJ45*1, HDMI 1.4*1
Video Stream:
Up to 2 Video Streams Output Simultaneously
Video Encoding:
H.265&H.264/MJPEG
Audio encoding:
ACC, MP3, G711
HDCP:
HDCP 1.4
RJ45:
100M Ethernet port
Program streaming:
SRT, HTTP, RTSP, RTMP, RTMPS, UDP, RTP, HLS(M3U8), Multicast
Control Panel:
Web panel (Language is English), remote upgrade
Product Description

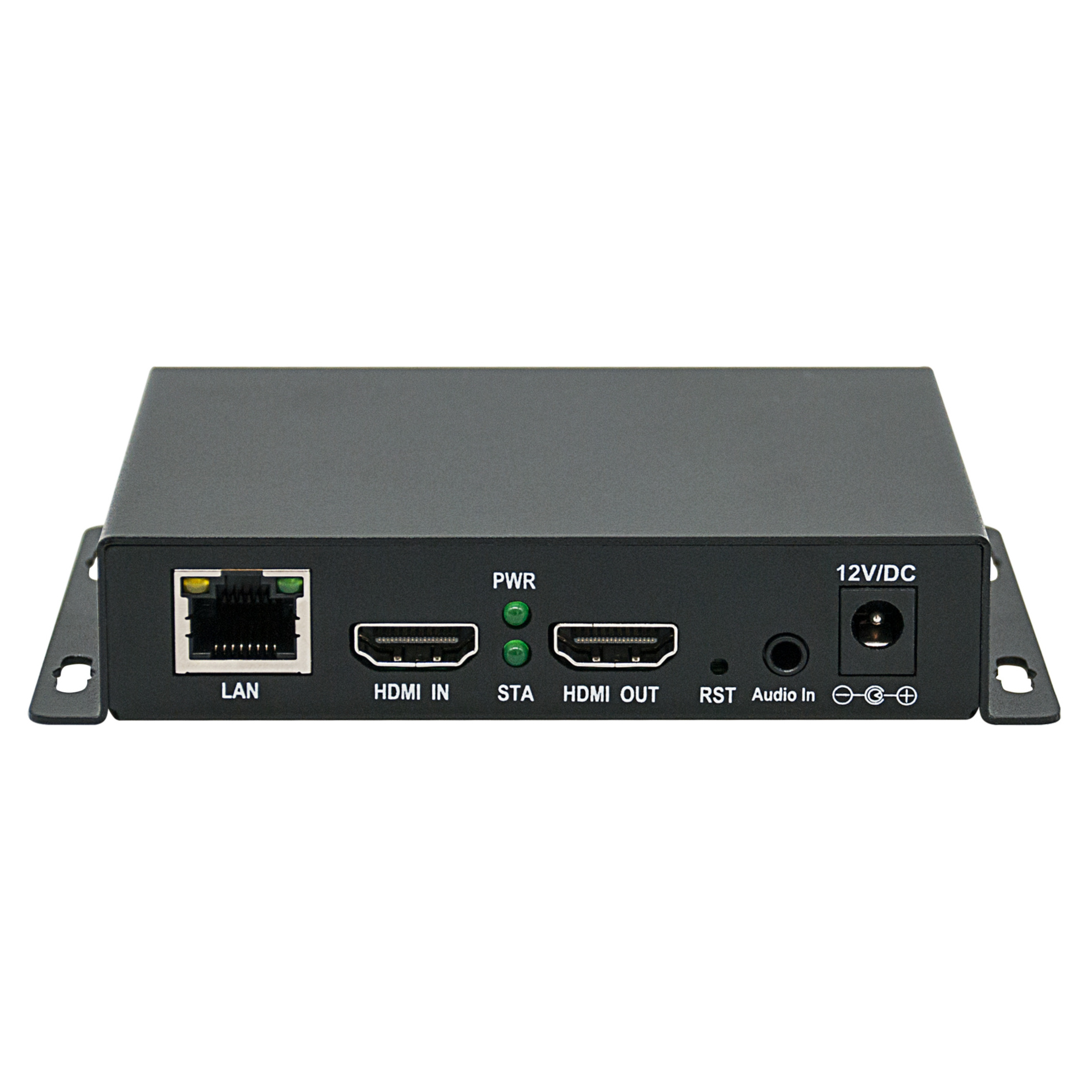

Mini H.265 HDMI Video Encoder
EH1201 is an ultra mini and lightweight hardware video and audio encoder. Which designed to meet the HD/1080P@30 Video transmission applications. It supports H.265 (HEVC)/H.264 high-performance encoding.
Also, it supports the most protocols including HTTP/SRT/RTMP/RTMPS/HLS/UDP/RTSP/Onvif, etc.
It's high integration and cost-effective design make this device widely used in the variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also, the encoder works with the online live broadcast platform, such as YouTube, Ustream, Twitter, WOWZA, Facebook Live, etc.
* Ultra mini size(125x72x25mm) and ultra lightweight(200g), the live streaming encoder is perfect for the live streaming applications with frequent move or tiny device installation space.
* Support HEVC /H.265, H.264 /AVC, MJPEG video encoding;
Support AACLC, EAAC, EAACPLUS, MP2, AC3 , G.711 audio encoding
* Support real HD video input with resolution up to 1920*1080P@30FPS to ensure that the image quality is perfect.
* Support up to 2 streams output simultaneously, support different protocol transmission for each stream
* Support full range of protocols including HTTP/ RTSP/ RTMP/ RTMPS/ SRT/ HLS/ TS-UDP/ Onvif, that means live stream with RTMP/RTMPS, while remote production with SRT, all can be handled at the same time.
* Add any self-defined text, time and image overlay at any position to announce your copyrights and have fun!
* Support for vertical/horizontal video rotation and mosaic features make it a social media friendly tool.
Specification
Model
ZY-EH1201
Video
Input interface
1×HDMI 1.4
Support resolution
1920*1080,1280*720,1280*800,1280*768,1024*768,1024*576, 960*540,850*480,800*600,720*576,720*540,720*480,
720*404,704*576,640*480,640*360,480*270,Auto
Frame rate
≤ 30hz
HDCP
Support HDCP 1
Output interface
1×Ethernet port (RJ45), 1×HDMI 1.4 Loop-out
Video encoding
H.265&H.264/MJPEG
Max bitrate
16kbps- 20Mbps
Rate control
CBR/VBR
Audio
Input interface
1×External audio, HDMI built-in Audi
Audio encoding
ACC, MP3, G711
Audio Encoder type
AACLC, EAAC, EAACPLUS, MP2, A
Bit-rate Option
48K,64K,96K,128K,160K,192K,256K
Sampling Accuracy
24 Bit
Audio Data-rate
64Kb/s to 384Kb/s
Network
RJ45
100M Ethernet port
Program streaming
HTTP, RTSP, RTMP/RTMPS, SRT, GB28181, HLS, FLV, ONVIF, Multicast: UDP/RTP
Control Panel
Web panel (Language is English), remote upgrade
Firmware Update
Enable by uploading files to the dashboa
General
Dimension(W*L*H)
4.92*2.83*0.98in(125*72*25mm)
Gross Weight
0.2kg
Temperature
0 ~ 45℃（for working）,-20~60℃（for storing)
Humidity
<90%, non-condensing
Input Voltage
DC 12V/1A
Power Consumption
5W
Application Diagram
Related Products
Why Choose Us


ORIVISION is a professional IP/Optical/Cable-based video transmission and live video streaming hardware manufacturer. We focus on H.265 & H.264 HDMI/SDI/VGA IP streaming hardware encoders and decoder HDMI/VGA/SDI/DVI signal transmitters with IP/network/cables/optical fiber and so on.
We have mastered the unique technologies in low-bitratew bandwidth transmission, wired/wireless transmission SRT/RTMP/RTMPS/RTSP/RTP/UDP/ONVIF technology, HD decoding multi-format conversion, and streaming media service management. The live video streaming hardwares are widely used in the military industry, transportation, emergency management, education recording, communications, new media live broadcast, medical teaching, and other industries.
