Quick Details
-
Weight:
-
100kg
-
Size:
-
2m³
-
Power:
-
Customized
-
Weight (KG):
-
200 kg
-
Product name:
-
RO SYSTEM
-
Brand:
-
HUAMO
-
Application:
-
Water Treatment
-
Voltage:
-
380v/220v
-
Capacity:
-
250L, 500L, 1T, 2T and more
-
Filter Media:
-
sand, carbon, resin, membrane
-
Model:
-
manual, automatic
-
Type:
-
RO, UF, sea water,EDI
-
Certification:
-
CE ISO9001
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Huamo
-
Material:
-
Wooden, Stainless Steel
-
Weight:
-
100kg
-
Size:
-
2m³
-
Power:
-
Customized
-
Weight (KG):
-
200 kg
-
Product name:
-
RO SYSTEM
-
Brand:
-
HUAMO
-
Application:
-
Water Treatment
-
Voltage:
-
380v/220v
-
Capacity:
-
250L, 500L, 1T, 2T and more
-
Filter Media:
-
sand, carbon, resin, membrane
-
Model:
-
manual, automatic
-
Type:
-
RO, UF, sea water,EDI
-
Certification:
-
CE ISO9001
Product Description

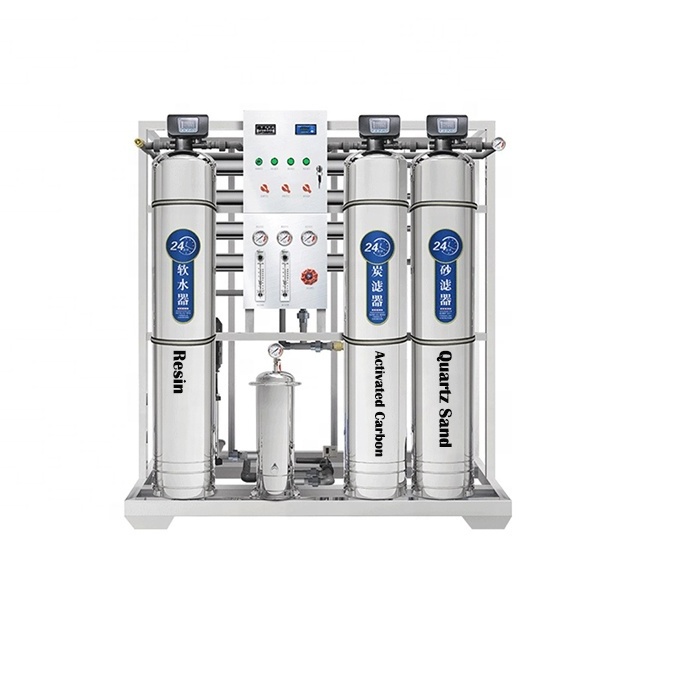

RO Filtration System
Raw water source:
Bore whole, river, well, mountain spring, lake, etc
Raw water pump/multi pump:
Nanfang, Shimge
Filter media:
Quartz sand filter, active carbon filter, security filter( PP filter)
RO Membrane:
Frotec, Filmtec Dow, Hydranautics,Huamo
Working process
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, etc.
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, etc.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump-- Provide the high pressure to RO membrane ro.
7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions
Specification
|
Model
|
RO-250L
|
RO-500L
|
RO-1000L
|
2T-10T
|
|
Water capacity
|
1500GPD(250LPH)
|
3000GPD (500LPH)
|
6000GPD(1000LPH)
|
more
|
|
Ro membrane qty
|
1pcs
|
2pcs
|
4pcs
|
more
|
|
Recovery rate
|
15%-50%
|
25%-75%
|
45%-75%
|
more
|
|
Power consumption
|
0.8kw.h/m3
|
1.2kw.h/m3
|
1.25kw.h/m3
|
more
|
|
Power supply
|
380V/220V
|
380V/220V
|
380V/220V
|
more
|
|
Dimensions
(W x D x H)
|
0.7x0.5x1.3m
|
0.9x0.5x1.3m
|
0.9x0.7x1.3m
|
more
|
|
Gross Weight
|
60KG
|
70KG
|
90KG
|
more
|
