Quick Details
-
Focal Length:
-
12-36mm
-
Image Format:
-
2/3"
-
F/No.:
-
F2.8
-
Mount:
-
C mount
-
Resolution:
-
5mega pixel
-
Iris:
-
Manual
-
Suitable Distance:
-
0.2m-INF
-
TTL:
-
69.5mm
-
Dimension:
-
44.5x54.04mm
-
Product name:
-

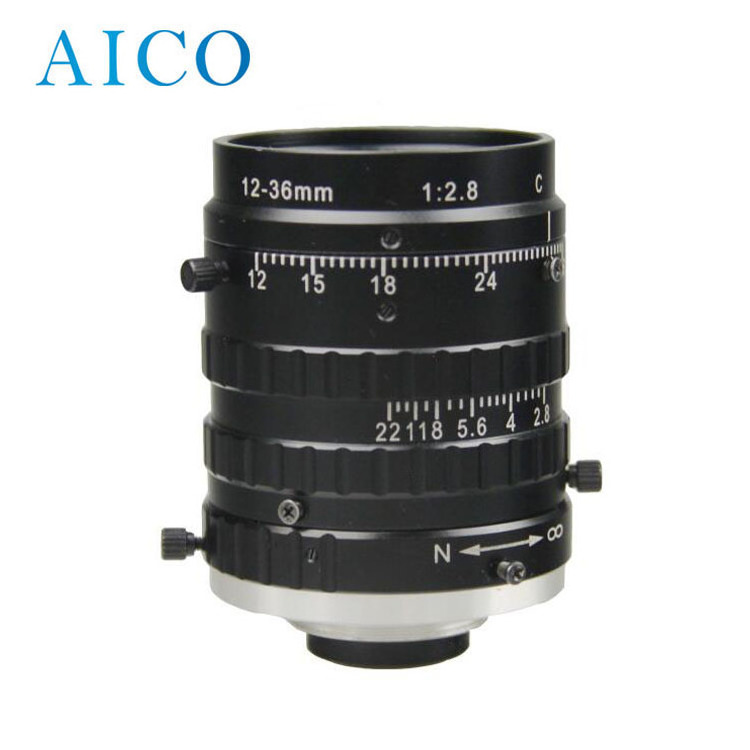

2/3" F2.8 manual iris 5mega pixel 12-36mm c mount cctv zoom lens
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
AICO
-
Model Number:
-
ACNV1236Z5M
-
Focal Length:
-
12-36mm
-
Image Format:
-
2/3"
-
F/No.:
-
F2.8
-
Mount:
-
C mount
-
Resolution:
-
5mega pixel
-
Iris:
-
Manual
-
Suitable Distance:
-
0.2m-INF
-
TTL:
-
69.5mm
-
Dimension:
-
44.5x54.04mm
-
Product name:
-
2/3" F2.8 manual iris 5mega pixel 12-36mm c mount cctv zoom lens
2/3" image format F2.8 manual iris 5megapixel 12-36mm c mount machine vision vari focal cctv zoom lens for industry system
|
Focal Length : |
12-36mm |
|||
|
Resolution : |
5MP |
|||
|
Format : |
2/3" |
|||
|
Mount : |
C mount |
|||
|
F/No : |
F2.8 |
|||
|
Back Focus: |
8.16-11.78mm |
|||
|
Iris Type : |
Manual |
|||
|
Angle of View : |
|
Long focus |
Short focus |
|
|
D (°) |
16 |
47.8 |
||
|
H (°) |
13 |
38.8 |
||
|
V (°) |
9.8 |
29.2 |
||
|
(Lens Effective Diameter : |
Front |
Φ30.51mm |
||
|
Back |
Φ10.98mm |
|||
|
Distortion : |
-3.5% - 2.1% |
|||
|
Relative illuminate: |
58%-62% |
|||
|
TTL : |
69.5mm |
|||
|
Dimension : |
Φ44.5x54.04mm |
|||
|
Suitable Distance : |
0.2m-INF |
|||
|
Best distance range: |
0.4m |
|||
|
Coating : |
400nm~900nm |
|||
|
CRA : |
3.04 ° |
|||
|
Lens Construction : |
12-9 |
|||
|
Weight : |
175.26g |
|||
|
Operating Temperature : |
-20 ℃~ +65 ℃ |
|||
|
Model : |
ACNV1236Z5M |
|||
Related Products
| Model No. | FL | Mount | FNo. | Format | Resolution | Iris |
| ACH1236ZM | 12-36mm | C Mount | F2.8 | 2/3" | 2MP | Manual |
| ACH1236ZD | 12-36mm | C Mount | F2.8 | 2/3" | 2MP | Manual |
| ACH0812Z5M | 8.0-12mm | C Mount | F2.5 - F22 | 1/2.5" | 5MP 200lp/mm | Manual |
| ACH1040Z3M | 10-40mm | C Mount | F1.8 | 2/3" | 3MP | Manual |
| ACHIR1050Z2D | 10-50mm | C Mount | F1.4 | 1/2.7" | 2MP | 2 Motors Drivers |
| ACH1060ZM | 10-60mm | C Mount | F1.4 | 2/3" | 2MP | Manual |
| ACH1060ZD | 10-60mm | C Mount | F1.4 | 2/3" | 2MP | Video Auto Iris |
