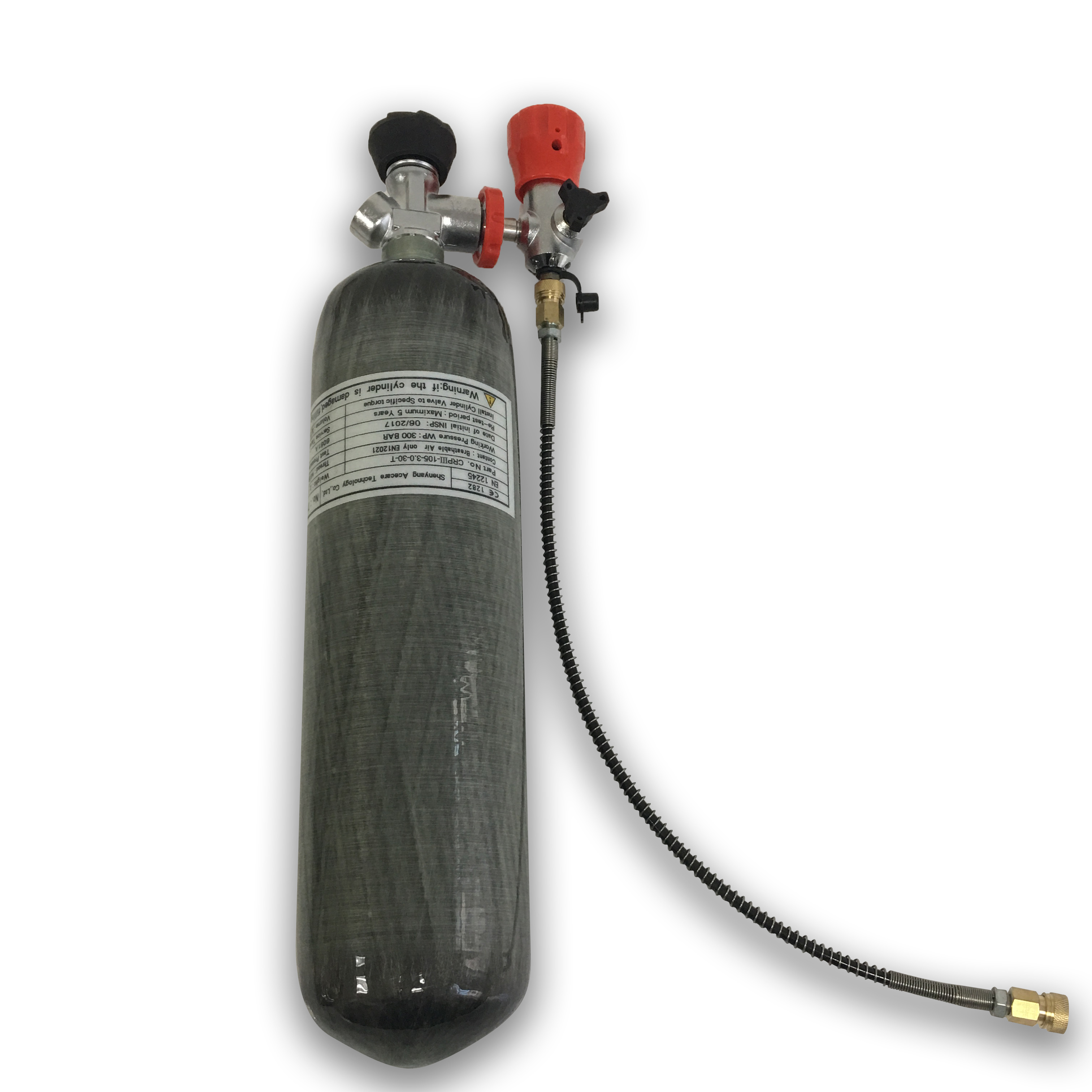

Acecare 4500psi 3L CE Compressed Air Carbon Fiber PCP Tank with Filling Station and Valve
Acecare 4500psi 3L CE Compressed Air Carbon Fiber PCP Tank with Filling Station and Valve
Acecare 4500psi 3L CE Compressed Air Carbon Fiber PCP Tank with Filling Station and Valve
Acecare 4500psi 3L CE Compressed Air Carbon Fiber PCP Tank with Filling Station and Valve
Acecare 4500psi 3L CE Compressed Air Carbon Fiber PCP Tank with Filling Station and Valve
Acecare 4500psi 3L CE Compressed Air Carbon Fiber PCP Tank with Filling Station and Valve
Acecare 4500psi 3L CE Compressed Air Carbon Fiber PCP Tank with Filling Station and Valve
Acecare 4500psi 3L CE Compressed Air Carbon Fiber PCP Tank with Filling Station and Valve

Acecare 4500psi 3L CE Compressed Air Carbon Fiber PCP Tank with Filling Station and Valve

FOB Reference Price: Get Latest Price
≥1 Pieces
US $196
≥51 Pieces
US $176.4
≥101 Pieces
US $166.6
≥201 Pieces
US $156.8
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Color:
gray
Thread:
M18*1.5
Working Pressure:
30mpa/300bar/4500psi
Length:
446mm
Diameter:
114mm
Net Weight:
2.1kg
Combo Set Offered:
3
Certificate:
CE/EN12245

Quick Details

Place of Origin:
China
Water Capacity:
3L
Certification:
CE
Color:
gray
Thread:
M18*1.5
Working Pressure:
30mpa/300bar/4500psi
Length:
446mm
Diameter:
114mm
Net Weight:
2.1kg
Combo Set Offered:
3
Certificate:
CE/EN12245
Product photograph
Gas cylinder

Acecare Tech produces portable gas cylinders through advanced technology. Compared with conventional respirators, we use aluminium or aluminium composite cylinders instead of steel ones, with weight reduction of 40%-70%, so they are more preferable for people with breathing problems.
Gas cylinder introduction:
Gas cylinder liners are made of high quality 6061 aluminium alloy materials. The manufacturing procedure includes punching, drawing, heat treatment, CNC flow forming spinning, inner surface treatment, etc. The wall thickness is uniform with little difference. The shape of shoulder and base are produced with high precision and consistency.
1. 15-year lifetime warranty;
2. 5-year requalification period; 15-year life;
3. Smooth, high quality, easy-care exterior finish.

Carbon Fiber Composite Cylinder lined with
Aluminium Alloy
Standard
Part
No.
Thread size
Water
Capacity
( liters)
Empty
Weight
(kg)
Diameter

(mm)
Length

(mm)
Working
Pressure
(Mpa)
GB
CRPIII-55-0.35-30-T
M18*1.5
0.35
0.45
61
235
30
CRPIII-55-0.5-30-T
0.50
0.65
61
295
CRPIII-79-1.1-30-T
1.10
1.10
85.5
315
CRPIII-101-1.5-20-T
1.50
1.0
108
207
20
CRPIII-105-1.6-20-T
1.60
1.20
112
268
CRPIII-88-2.0-30-T
2.0
1.50
96
433
30
CRPIII-120-2.17-30-T
2.17
1.5
112
380
CRP-III-120-2.4-20-T
2.40
1.70
128
307
20
CRPIII-120-2.5-20-T
2.50
1.80
128
312
CRPIII-125-2.7-20-T
2.70
1.90
133
308
CRPIII-125-4.7-30-T
4.70
3.0
137
492
30
CRPIII-145-6.8-30-T
6.80
4.10
157
528
CRPIII-161-9.0-30-T
9.0
5.20
174
560
CRPIII-192-12-30-T
12.0
6.80
208
575
CRPIII-220-20-30-T
20.0
12.0
222
770
CE
CRPIII-105-3.0-30-T
M18*1.5
3.0
2.10
114
446
30
CRPIII-144-6.8-30-T
6.80
3.90
157
530
30
CRPIII-162-9.0-30-T
9.0
5.30
175
560
30
DOT
TC 6.8L-30MPA
ISO M18*1.5
6.8
3.90
157
/
30
TC 4.7L-31MPA
0.875-14UNF-2B
4.7
2.90
140.4
31
TC 6.8L-31MPA
0.875-14UNF-2B
6.8
3.90
172.5
TC 8.5L-15MPA
0.750-16UNF-2B
8.5
3.10
166.8
15
TC 9.0L-31MPA
0.875-14UNF-2B
9.0
4.90
174.3
31
