Quick Details
-
Voltage:
-
380V or optional
-
Power:
-
2.2
-
Dimension(L*W*H):
-
820*460*1110
-
Weight (KG):
-
380
-
Specification:
-
C41-20KG
-
Max. hit energy:
-
0.22kj
-
Height of working area:
-
200mm
-
Hit number:
-
255min-1
-
Max.square steel can be forged:
-
30*30mm
-
Max.round steel can be forged(Diameter):
-
35mm
-
Motor power:
-
single phase2.2/220 triple phase2.2/380
-
Speeds of motor:
-
1440 r.p.m
-
Anvil weight:
-
50kg
-
Total weight:
-
380kg
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Matsumoto
-
Machine Type:
-
vertical
-
Voltage:
-
380V or optional
-
Power:
-
2.2
-
Dimension(L*W*H):
-
820*460*1110
-
Weight (KG):
-
380
-
Specification:
-
C41-20KG
-
Max. hit energy:
-
0.22kj
-
Height of working area:
-
200mm
-
Hit number:
-
255min-1
-
Max.square steel can be forged:
-
30*30mm
-
Max.round steel can be forged(Diameter):
-
35mm
-
Motor power:
-
single phase2.2/220 triple phase2.2/380
-
Speeds of motor:
-
1440 r.p.m
-
Anvil weight:
-
50kg
-
Total weight:
-
380kg
Products Description
Product Paramenters
The main performance characteristics:
1.Powered by compressed air, meet the needs of production safety, and tapping force against frequency by adjusting the air pressure control.
2.The air hammer is easy to operate through controlling the travel of top swage by a foot rest lever.
3.It's models range from 16KG to 75KGand so on.
4.It is also used for forging in bolster dies.
Application :
Applicable to all kinds of free forging: such as extension, upsetting, punching, shearing, forging welding, torsion and bending using a die cushion can be a variety of open die forging.
2.The air hammer is easy to operate through controlling the travel of top swage by a foot rest lever.
3.It's models range from 16KG to 75KGand so on.
4.It is also used for forging in bolster dies.
Application :
Applicable to all kinds of free forging: such as extension, upsetting, punching, shearing, forging welding, torsion and bending using a die cushion can be a variety of open die forging.
|
Specification
|
Unit
|
C41-20KG
|
|
|
|
|
|
Max. hit energy
|
kj
|
0.22
|
|
|
|
|
|
Height of working area
|
mm
|
200
|
|
|
|
|
|
Hit number
|
min-1
|
255
|
|
|
|
|
|
Dimension of top and bottom die surface(L*W)
|
mm
|
90*50
|
|
|
|
|
|
Max.square steel can be forged
|
mm
|
30*30
|
|
|
|
|
|
Max.round steel can be forged(Diameter)
|
mm
|
35
|
|
|
|
|
|
Motor power
|
kw
|
single phase2.2/220
triple phase2.2/380 |
|
|
|
|
|
Speeds of motor
|
r.p.m
|
1440
|
|
|
|
|
|
Anvil weight
|
kg
|
50
|
|
|
|
|
|
Total weight
|
kg
|
380
|
|
|
|
|
|
Overall dimensions(L*W*H)
|
mm
|
820*460*1110
|

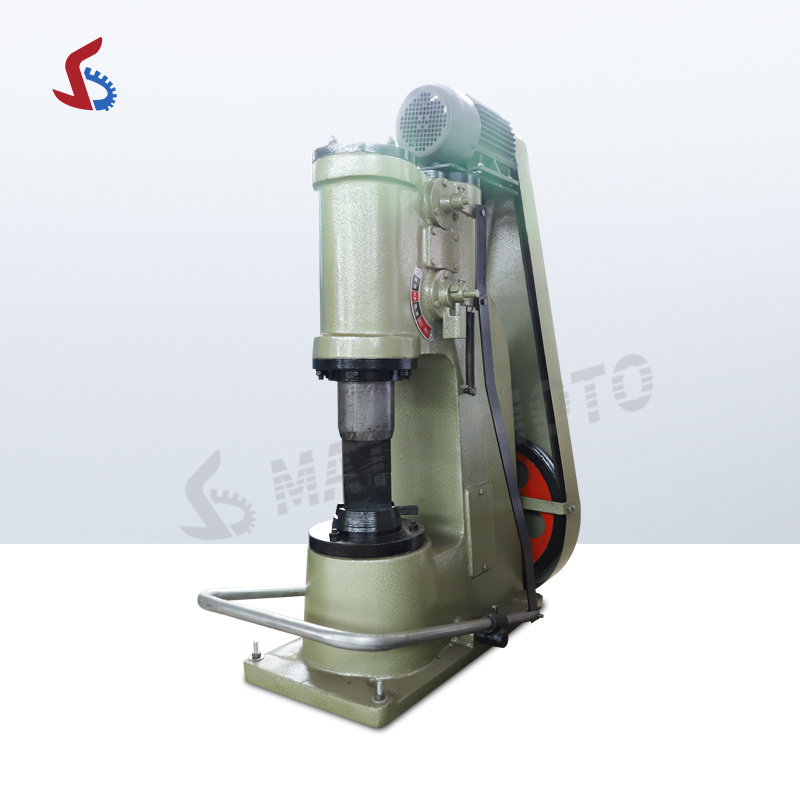

Details Images
