Quick Details
-
Production Capacity:
-
500/sets per month
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PaiLiEn
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Based on pratice
-
Weight:
-
900 kg
-
Marketing Type:
-
Hot Product 2023
-
Engine:
-
Electric type / Diesel type
-
Splitting force:
-
3800T
-
Working pressure:
-
40MPa
-
Drilling diameter:
-
110mm
-
Drilling depth:
-
1500mm
-
Wedge length:
-
800mm
-
Feature:
-
Safe and efficient
-
style:
-
Large hydraulic rock splitter
Quick Details
-
Type:
-
Rocks/Ferroconcrete/Quarry Stone/Ore Splitter
-
Power:
-
7.5KW, 7.5KW or18HP
-
Cutting thickness (max):
-
5000mm
-
Production Capacity:
-
500/sets per month
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PaiLiEn
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Based on pratice
-
Weight:
-
900 kg
-
Marketing Type:
-
Hot Product 2023
-
Engine:
-
Electric type / Diesel type
-
Splitting force:
-
3800T
-
Working pressure:
-
40MPa
-
Drilling diameter:
-
110mm
-
Drilling depth:
-
1500mm
-
Wedge length:
-
800mm
-
Feature:
-
Safe and efficient
-
style:
-
Large hydraulic rock splitter

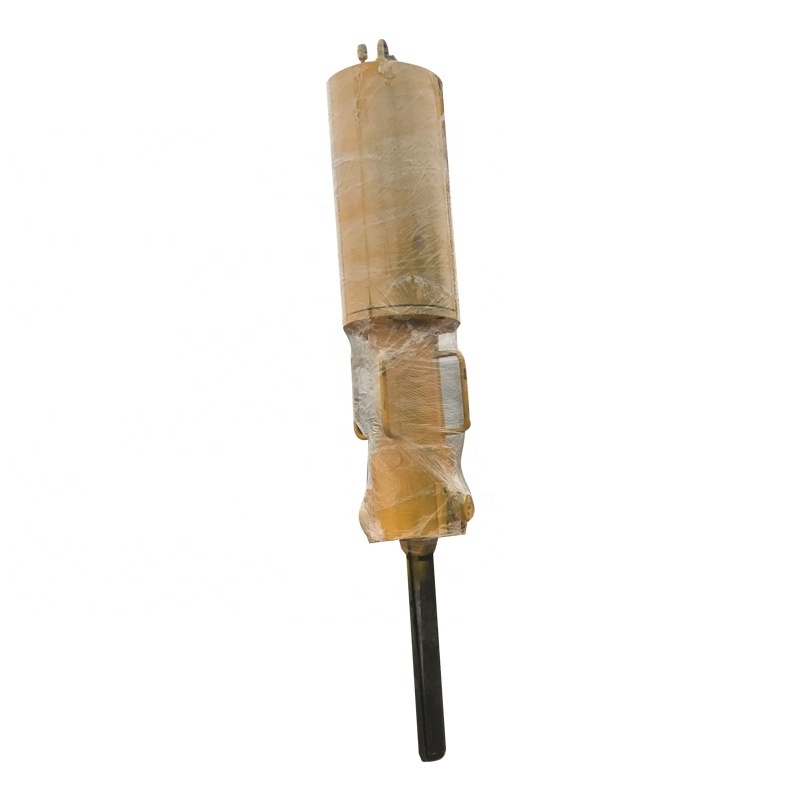

Excavator attached quarry stone splitting machine hydraulic hard rock breaking big power rock splitter machine for sale
Application :
1)construction materials demolition, such as the concrete components of cement pavement, locomotive foundation, bridge and building components partially or completely demolished;
2)stone mining, natural stone&quarry stone mining, splitting and breaking;
3)ore mining and secondary split for large metallic&non-metallic ore.
Specification of large hydraulic rock splitter
| Model | Splitting force | Drilling diameter | Drilling depth | Crack width | Splitting time | Wedge Length | Weight | Pressure oil model |
| PLE320 | 5000T | 110mm | 1500mm | 25mm | 40-50s | 800mm | 1400kgs | 46# |
Advantage:
Excavator driven strong power hydraulic rock splitter
1)More powerful, can split marble, granite stone easily;
2)High efficient, can split the hard stone within 1 minute;
3)Long service life with durabble splitting wedges;
4)Easy operate and maintain.
Optional Pump Station Specification of large hydraulic rock splitter
|
Engine |
Electric type |
Diesel type |
|
Power |
7.5KW |
18HP |
|
Working pressure |
40MPa |
40MPa |
|
Oil mass |
150l |
200l |
|
Flow rate |
2-13l/min |
2-13l/min |
|
Adaptive splitters amount |
8-12pieces |
13-18pieces |
|
Hydraulic oil |
46# |
46# |
|
Weight |
180kgs |
280kgs |
|
Size |
Customized |
Customized |
We put more effort and money into improving the PERFORMANCE and QUALITY of our products, BUT not retouching pictures and advertising.
| Normal packing of large rock splitter | export packing case, as per requirement |
| Lead timeof large rock splitter | within 3-5 days after receiving the payment |
