Quick Details
-
Model Number:
-
BFV01
-
Brand Name:
-
ZH
-
Name:
-

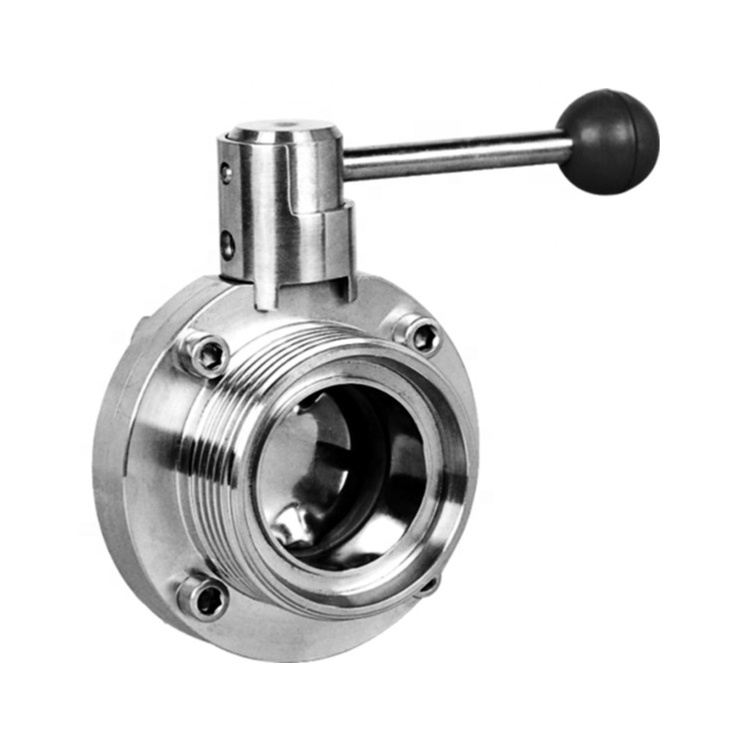

flange butterfly valve handles stainless steel butterfly valve
-
Material:
-
Stainless Steel
-
Body material:
-
304,316L
-
Packing:
-
Carton and Wooden case
-
Delivery:
-
About 10 days after received your payment
Quick Details
-
Port Size:
-
Standard, Standard
-
Warranty:
-
1YEAR
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
BFV01
-
Brand Name:
-
ZH
-
Name:
-
flange butterfly valve handles stainless steel butterfly valve
-
Material:
-
Stainless Steel
-
Body material:
-
304,316L
-
Packing:
-
Carton and Wooden case
-
Delivery:
-
About 10 days after received your payment
Product Description
actuator 1 inch triple offset pneumatic flange motorized electric sanitary stainless steel keystone wafer price butterfly valve
Application
Butterfly valve, whether manual or automatic operation, can be used in food processing and chemical products, industrial fluid applications.
Technical specifications
Max.pressure: 10bar 1/2"-12", DN10-DN300 / 5bar(DN200/300)
Min.pressure: 0.2bar p.abs
Operating temperature: -10°C +120°C ( EPDM )
Connection: weld, clamp, thread, flange, etc
Size: DN10-DN300, 1/2"-12"
Standards: DIN, SMS, RJT, 3A, ISO, IDF
Design
Disc: AISI 316L/304(forged)
Valve body: AISI 316L/304(forged)
Washer and gasket: EPDM conforms to PFA 177.2600
Hande: AISI 304/PP
Surface finishing: Ra < 0.8
Features
Compact and robust design
Multi-position handle: Plastic type for 1/2"-4", stainless steel type for 1/2'-6"
Pull handle, is suitable up to DN25-1 to DN300-12 valve
Manual handle, pneumatic and electric actuator can be exchangeable with each other
PED97-23EC
177.2600
The valve body can be changeable with any kind of connection
Product Show
Related Products
Main Products
About Us
Shanghai Zhuheng has been the domestic famous brand of the professional high precision liquid equipments manufacturers since 2007 . We have five business departments:sanitary stainless steel tank department,sanitary pumps deaprtment,stainless steel homogenizing sterilization department,sanitary valves and fittings department and stainlesssteel filter and water treatment department.Our products are widely used in beer,grape wine,white wine,dairy,food,beverage,ice-cream,cosmetic,chemical and other industries.
FAQ
Q: How long have you worked in this field?
A: Over 15 years.
Q:What's the delivery time?
A: Standard products will be 10-15 days after receive your down payment or full payment.
Q: Can your factory produce products according to our drawings or samples?
A: Yes, of course we can.
Q: Are you manufacturer or trading company ?
A: We are a professional manufacturer.
Q: What is your factory's biggest advantage?
A: Technology is our core competitiveness.
