Quick Details
-
Max. Wheel Weight:
-
1000kg
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
UE
-
Model Number:
-
UE-A730G
-
Warranty:
-
12 Months
-

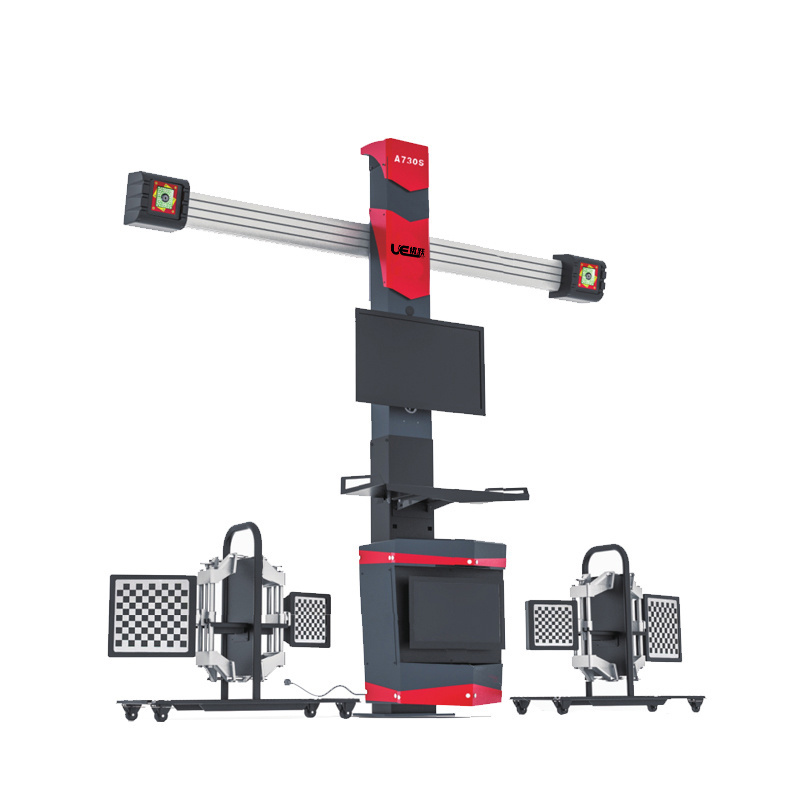

Product name:
-
Four-wheel locator
-
Color:
-
Red
-
Material:
-
steel
-
Certification:
-
CE
-
Application:
-
Tire Service
-
Feature:
-
3D Dynamic Simulation
-
Language:
-
Multi-language
-
Keywords:
-
3d Wheel Aligner John Bean
-
Name:
-
Wheel Aligner System
-
Function:
-
Wheel Angles Measuring
Quick Details
-
Power:
-
3.2KW
-
Power Supply:
-
220V/380V
-
Balancing Speed:
-
6.5/13rpm
-
Max. Wheel Weight:
-
1000kg
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
UE
-
Model Number:
-
UE-A730G
-
Warranty:
-
12 Months
-
Product name:
-
Four-wheel locator
-
Color:
-
Red
-
Material:
-
steel
-
Certification:
-
CE
-
Application:
-
Tire Service
-
Feature:
-
3D Dynamic Simulation
-
Language:
-
Multi-language
-
Keywords:
-
3d Wheel Aligner John Bean
-
Name:
-
Wheel Aligner System
-
Function:
-
Wheel Angles Measuring
Products Description
Product Paramenters
|
Front axle
|
ACCURACY
|
MEASURING
|
TOTALMEASURING RANGE
|
|||
|
Total toe
|
±3′
|
±4°
|
±48°
|
|||
|
Total toe
|
±6′
|
±4÷48°
|
±48°
|
|||
|
Partial toe
|
±1.5′
|
±2°
|
±24°
|
|||
|
Partial toe
|
±3′
|
±4÷24°
|
±24°
|
|||
|
Set-back
|
±5′
|
±3°
|
±3°
|
|||
|
Camber
|
±5′
|
±3°
|
±10°
|
|||
|
Camber
|
±7′
|
±3÷10°
|
±10°
|
|||
|
Caster
|
±10′
|
±24°
|
±24°
|
|||
|
King-pin
|
±10′
|
±24°
|
±24°
|
|||
|
Rear axle
|
|
|
|
|||
|
Total toe
|
±3′
|
±4°
|
±48°
|
|||
|
Total toe
|
±6′
|
±4÷48°
|
±48°
|
|||
|
Partial toe
|
±1.5′
|
±2°
|
±24°
|
|||
|
Partial toe
|
±3′
|
±4÷24°
|
±24°
|
|||
|
Set-back
|
±5′
|
±3°
|
±3°
|
|||
|
Camber
|
±5′
|
±3°
|
±10°
|
|||
|
Camber
|
±7′
|
±3÷10°
|
±10°
|
|||
|
Thrust angle
|
±2′
|
±3°
|
±24°
|
|||
Features
2.Mobile trolley, target is not restricted by the space, can be placed conveniently.
3.Two display monitors are more practical and fashionable, customer’s view is not restricted, improve the working
efficiency.
4.Measurement accuracy reached international advanced level, approved by the customers.
5.Unique high definition 8x8 and 8x9 target boards, surface can be cleaned and anti-corrosion.
6.Specialized high accuracy cameras, capture the target swiftly, stable and reliable performance.
7.In the display interface with various light options, is not restricted by the sun light during the work.
8.High configuration brand PC, original window system, quality is guaranteed, complete and no virus to ensure the stable operation.
9.About 68000-75000 international vehiche datas, covering 99.99% models.
