Quick Details
-
Weight (KG):
-
0.45 KG
-
After Warranty Service:
-
Online support
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Spare Parts Type:
-
laser
-
Brand Name:
-
FU
-
Weight (KG):
-
0.45 KG
-
After Warranty Service:
-
Online support
Item Description
Brand: FU(For You)
Model
FU66081WG100-GD16
:
Wavelength: 660nm in picture
(405/450/520/532/635/650/670/685
/
780/808/830/845/850/880/905/940/980/1064nm
for choose)
Output power: <1mW(>1mW please contact us)
Operating voltage: DC2.8~3.2V or 3.5~25V
Dimension: φ16*70mm

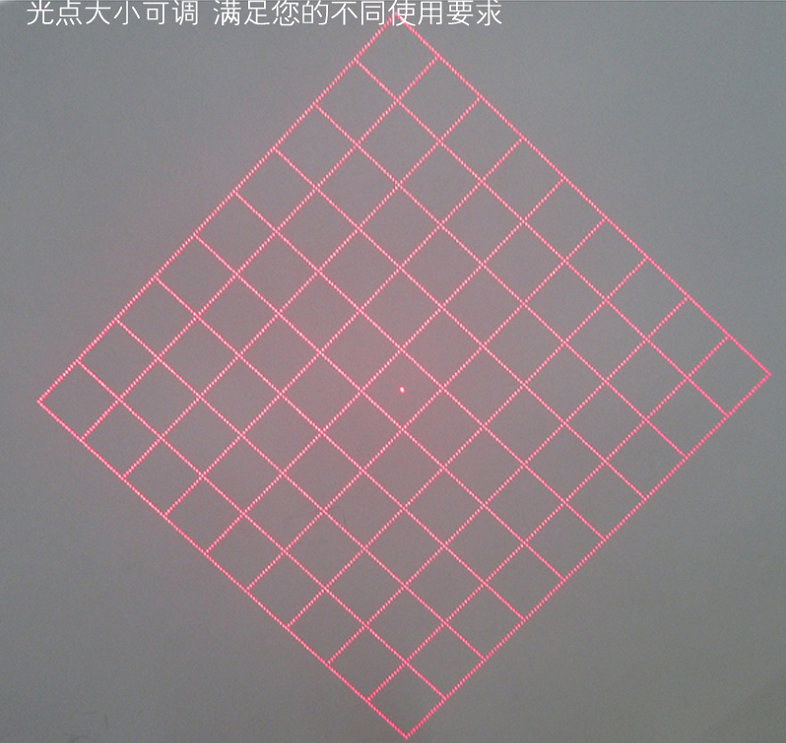

Beam mode: 9*9=81 grid(adjustable focus)
Lens:
Plastics lens
Operating temperature:
-10~40°C
Storage temperature: -40-80°C
Beam size: @1000mm, length: 728 mm, width: 728 mm, each small grid: 81*81 mm (proportional scaling)
Storage temperature: -40-80°C
Beam size: @1000mm, length: 728 mm, width: 728 mm, each small grid: 81*81 mm (proportional scaling)
Note: The line was made by so many dots, not a continous line.
1 set include:
1pcs laser
1pcs power supply(90~240VAC to 3VDC can use worldwide)
1pcs holder(bracket/support/ stand/ frame/ steady/ foothold)
Product Features
Shipping Policies
We take great care packaging every item to ensure safe quality shipping.
1)We ship UPS/TNT/FedEx/DHL/EMS/SF depending on your location and at our discretion.
2)Most shipments are sent out within 1-3 business day after payment is confirmed or cleared, unless stated otherwise in the listing.
3)Please make sure to provide the correct shipping address(include post code,not PO BOX), contact person and telephone(cell phone is best) when placing
your order, orders will be shipped out to the shipping address provided by aliexpress.
4)Packages are not shipped on Saturday or Sunday. Transit time varies and depends on the carrier, we cannot be held responsible for delays caused by
carriers.
5)Shipping time by aliexpress is estimated and not guaranteed and is subject to change especially during peak periods.
6)Orders shipping to undeveloped countries and regions may not select the Free Shipping option for this item, if free shipping is selected for one of
these destinations we reserve the right to cancel your order.
Return Policies
1)We offer a 10 day return policy on all items. (unless stated otherwise in the listing)
2)All returns must be in original condition and must include the original packaging and content in tact.
3)Returns should be packed in proper packaging to avoid damage to the item or it original packaging.
4)For any return request please contact our Customer Support by aliexpress Messages and we will proceed with your return.
5)Please allow 3-5 business days after we recieve your package to process your return.
6)Any returns that violate this return policy will not be accepted and will be sent back at customers expense.
--------------------------------------------------------
We can do so many kinds of blue/green/red/IR laser diode module...
Brand: FU
Model: provide after confirmed
Projection Type : dot/line/cross or other beam shape
Projection Fan angle (full angle): line: 5/10/15/20/30/35/45/60/70/85/90/110/120/160degree, cross: 5/10/15/20/30/60/90/110/135degree
Lens: Glass lens or plastic lens
Wavelength(nM) and output power:405±10nm(0-150mW), 450±10nm(0-1500mW), 488±10nm(0-60mW), 520±10nm(0-850mW), 650±10nm(0-100mW), 635±10nm(0-120mW), 780±10nm(0-200mW), 808±10nm(0-300mW), 830±10nm(0-500mW), 850±10nm(0-300mW), 880±10nm(0-10mW), 905±10nm(0-200mW), 920±10nm(0-100mW), 940±10nm(0-300mW), 980±10nm(0-300mW), 1064±10nm(0-200mW)...some others not showed, please contact us for more details...
Operating Voltage(VDC): 3 or 3-5 or 12 or 24
Operating Temperature Range (°C): -10 to +40
Storage Temperature Range (°C): -20 to +50
Laser Head Dimensions (mm): 70(L) x 16(D) or 110(L) x 22(D) or OEM
---------------------------------------------------------------
Package Includes:
Laser module -1 piece
Power supply- 1 piece
Tripod(Bracket/Mount)- 1 piece
We, Shenzhen Fuzhe Technology Co.,Ltd.(fulaser), is one of most popular laser products manufacturer in China, our lasers have more better quality and lead time, and warm-hearted service, now we had exported more than 120+ countries and area.
Please email for more details.
Brand: FU
Model: provide after confirmed
Projection Type : dot/line/cross or other beam shape
Projection Fan angle (full angle): line: 5/10/15/20/30/35/45/60/70/85/90/110/120/160degree, cross: 5/10/15/20/30/60/90/110/135degree
Lens: Glass lens or plastic lens
Wavelength(nM) and output power:405±10nm(0-150mW), 450±10nm(0-1500mW), 488±10nm(0-60mW), 520±10nm(0-850mW), 650±10nm(0-100mW), 635±10nm(0-120mW), 780±10nm(0-200mW), 808±10nm(0-300mW), 830±10nm(0-500mW), 850±10nm(0-300mW), 880±10nm(0-10mW), 905±10nm(0-200mW), 920±10nm(0-100mW), 940±10nm(0-300mW), 980±10nm(0-300mW), 1064±10nm(0-200mW)...some others not showed, please contact us for more details...
Operating Voltage(VDC): 3 or 3-5 or 12 or 24
Operating Temperature Range (°C): -10 to +40
Storage Temperature Range (°C): -20 to +50
Laser Head Dimensions (mm): 70(L) x 16(D) or 110(L) x 22(D) or OEM
---------------------------------------------------------------
Package Includes:
Laser module -1 piece
Power supply- 1 piece
Tripod(Bracket/Mount)- 1 piece
We, Shenzhen Fuzhe Technology Co.,Ltd.(fulaser), is one of most popular laser products manufacturer in China, our lasers have more better quality and lead time, and warm-hearted service, now we had exported more than 120+ countries and area.
Please email for more details.
