Quick Details
-
Dimension(L*W*H):
-
customized
-
Weight (KG):
-
50 kg
-
Item Name:
-
Industrial immersible ultrasonic transducer pack
-
Ultrasonic power:
-
900W
-
Ultrasonic transducer:
-
17/20/25/28/40/53/68/80/100/132/170/200Khz
-
Power supply:
-
AC110~240V
-
Heater:
-
0~80C Adjustable
-
Application:
-
Industrial cleaning
-
Transducer quantity:
-
18 PCS
-
Plate size:
-
450*300*100MM
-
Suitable for:
-
Electroplating factory used
Quick Details
-
Core Components:
-
ultrasonic generator
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JYD
-
Dimension(L*W*H):
-
customized
-
Weight (KG):
-
50 kg
-
Item Name:
-
Industrial immersible ultrasonic transducer pack
-
Ultrasonic power:
-
900W
-
Ultrasonic transducer:
-
17/20/25/28/40/53/68/80/100/132/170/200Khz
-
Power supply:
-
AC110~240V
-
Heater:
-
0~80C Adjustable
-
Application:
-
Industrial cleaning
-
Transducer quantity:
-
18 PCS
-
Plate size:
-
450*300*100MM
-
Suitable for:
-
Electroplating factory used
Hot selling submersible ultrasonic cleaner transducers plate ultrasonic transducer for cleaning
Shenzhen Jiayuanda Technology Co., Ltd. uses an ultrasonic transducer to be glued to a fully sealed stainless steel vibrating box and an ultrasonic generator.When the trough-type ultrasonic cleaning equipment is not suitable for specific work needs, the ultrasonic vibration plate is not only suitable for self-built cleaning tank or equipped with ultrasonic cleaning function in the existing cleaning tank, but also suitable for the repair and replacement of the ultrasonic vibration plate of the existing ultrasonic cleaning equipment, suitable for large-scale ultrasonic cleaning The machine system is equipped with an ultrasonic vibration plate, and it is also suitable for ultrasonic extraction equipment and ultrasonic sewage treatment equipment.The ultrasonic vibration plate can be flexibly installed in different parts of the cleaning tank (top, side, bottom) to achieve different cleaning effects.
Ultrasonic vibration plates (vibration plates) are generally tailor-made according to user needs and actual working conditions.
|
Model No. |
JYD-1012P |
JYD-1018P |
JYD-1024P |
JYD-1030P |
JYD-1036P |
JYD-1040P |
JYD-1048P |
|
Ultrasonic power(w) |
600 |
900 |
1200 |
1500 |
1800 |
2000 |
2400 |
|
Transducer quantity(pcs) |
12 |
18 |
24 |
30 |
36 |
40 |
48 |
|
Ultrasonic frequency (KHz) |
17/20/25/28/40/53/68/80/100/132/170/200Khz |
||||||
|
Material |
SUS304 or SUS316L 2.0-3.0mm thickness chrome coated |
||||||
|
Power supply |
AC220V±10% 50/60Hz or AC220V±10% 50/60Hz |
||||||
|
Transducers box dimension (mm) |
350*300*100 |
450*300*100 |
550*400*100 |
580*450*100 |
600*500*100 |
650*550*100 |
700*600*100 |

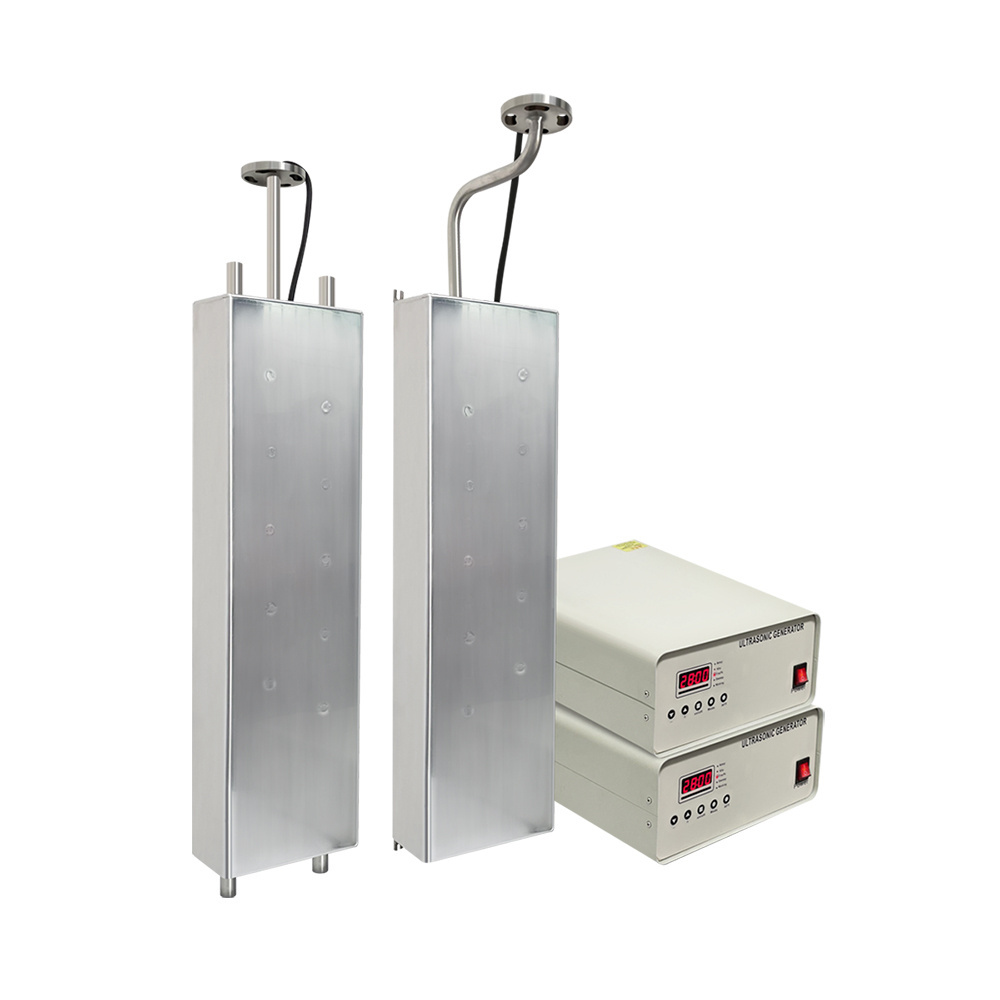

The immersible transducer box and generator are separate but work together to operate ultrasonic cleaning process, The Transducer box immersible be mounted in fluid tank.
1.The ultrasonic cleaning device is composed of the immersible ultrasonic transducer and generator. If ultrasonic cleaning machine of the standard model cannot be applied to a specific working environment, you can also make immersible ultrasonic transducer pack according to customizing special specifications. The working positions can be installed to fluid tank top side, bottom side or both side to achieve different cleaning effects.
2.It is of an all stainless steel structure, acid- and alkali-resistant, beautiful and durable. Strong acid- and strong alkali-resistant titanium plate material is used to reinforce and tighten welding.
3.It is welded with thick 316L stainless steel, which has good sealing performance.
4. It uses Japanese Fuji chip oscillator, which has high ultrasonic power.
5.The ultrasonic generator and immersible transducer are connected with separated high frequency wires, which is convenient for repair and maintenance.
6 .It can work continuously for 24 hours, which is suitable for mass production .
