Quick Details
-
Brand Name:
-
OEM
-
Product name:
-
Fiber Media Converter
-
Model:
-
OEM FC1050M-S20-SC
-
ports:
-
4 GE+1 GE FX
-
power:
-
DC12V
-
Color:
-
Grey
-
Application:
-
FTTH
Quick Details
-
Type:
-
FTTx Solutions
-
Model Number:
-
FC1050M-S20-SC
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
OEM
-
Product name:
-
Fiber Media Converter
-
Model:
-
OEM FC1050M-S20-SC
-
ports:
-
4 GE+1 GE FX
-
power:
-
DC12V
-
Color:
-
Grey
-
Application:
-
FTTH
FC1050M Gigabit Managed Fiber Converter
Overview
HiOSO FC1050M(Managed Ethernet Switch) is a kind of 10/100/1000Mbps adaptive gigabit Ethernet fiber converter (also called optical-to-electric medium converter) with a built-in four-port auto crossover MDI/MDI-X 10/100/1000Mbps adaptive switch, which can implement mutual conversion between four independent 10Base-T/100Base-TX/1000Base-T twisted pair electrical signal and 1000Base-X optical signal. FC1050M can extend the transmission distance of a network from 100m over copper wires to 100Km (single-mode full-duplex mode).
This type of fiber converter supports two types of network connection medium: 10Base-T/100Base-TX/1000Base-T and 1000Base-X. With the application of the switching technology and the storing & forwarding technology, FC1050Mcan implement data transmission between two types of network connection medium. This kind of converter supports transmission in dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fibers.
Feature
· Adaptive 10/100/1000Mbps Ethernet network, for the convenience of network upgrading;
· Efficient built-in switching core, to implement flow control and reduce broadcast packets;
· Providing four independent 10/100/1000Mbps adaptive switching-type twisted pair ports, to implement electrical interface backup and multi-user access;
· Supporting full-duplex and half-duplex transmission modes and capable of automatic negotiation;
· Supporting automatic crossing of twisted pair ports, for the convenience of system debugging and installation;
· Supports IGMP v1/v2/v3 and MLD v1/v2 snooping
· Supporting Quality of Service (QoS) and ensuring transmission of VoIP packets;
· Supporting Spanning Tree Protocol (STP) to form a redundant network;
· Low power consumption, low heat and capable of stable operation for a long period time;
· Supporting multiple types of fiber ports such as dual-fiber multi-mode, dual-fiber single-mode;
· and single-fiber single-mode, expanding the requirements of users;
· 802.1Q tag based VLAN(up to 4 VLAN)
· 802.1P 4 egress priority queues
Network Management
· Support WEB management
· Cisco-like CLI interface
· Traffic Management and QOS
· Rate limiting
· Configurate IGMP snooping time and priority
Application
10/100/1000Mbps Ethernet long-distance transmission network

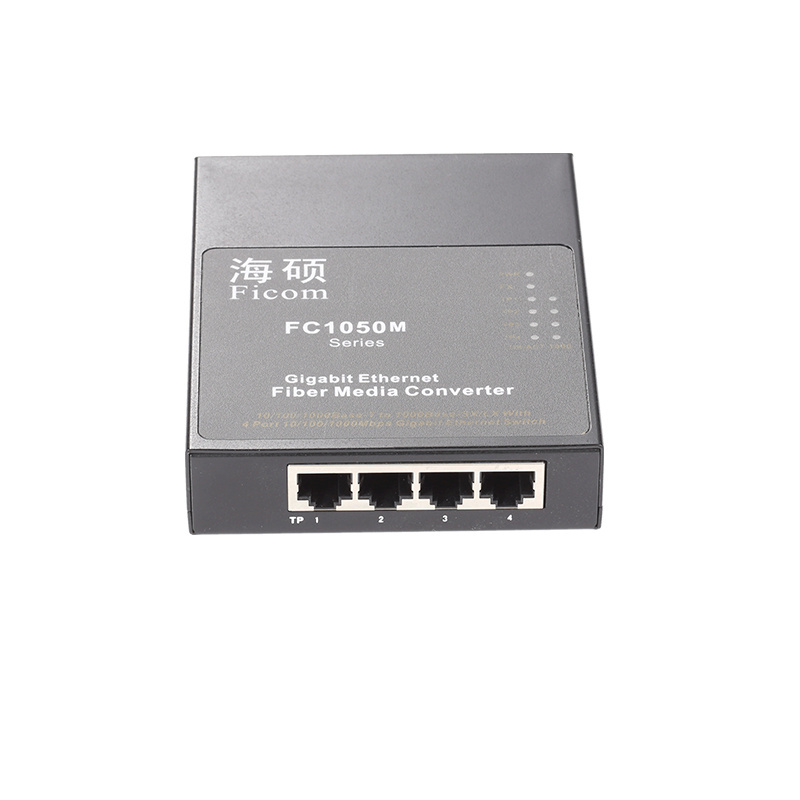

Pictures
External power
Technical Specification
|
Parameter |
Specifications |
|
Access mode |
10/100/1000Mbps |
|
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE 802.3ab 1000Base-T Gigabit Ethernet, IEEE 802.3z 1000Base-SX/LX ,IEEE802.3x Flow control, IEEE802.1q VLAN, IEEE802.1p QoS, IEEE802.1d Spanning Tree protocol |
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission Distance |
Dual-fiber multi-mode: 2Km; Dual-fiber single-mode: 25/40/60/80/100/120Km;
Single-fiber single-mode: 25/40/60/80/100Km
|
|
Port |
Four RJ45 connector: connected to STP/UTP category-5 twisted pair
|
|
Conversion mode |
Medium conversion, storing and forwarding |
|
Maximum frame size |
1522 bytes including tag/CRC |
|
MAC address table |
I K |
|
Buffer space |
1Mbit |
|
Flow control |
Full duplex state: flow control; half duplex state: back pressure mode |
|
Delay |
9.6us |
|
Bit error rate |
<1/1000000000 |
|
MTBF |
100,000 hours |
|
LED |
POWER (power),FX LINK/ACT (fiber connection/action),FDX (FX full duplex mode),TP1/2/3/4 LINK/ACT (1/2/3/4-port twisted pairs connection action)
|
|
Power |
DC5V/2A (external) |
|
Power consumption |
5W |
|
Operating temperature |
-10~55°C |
|
Operating humidity |
5%~90% |
|
Storage temperature |
-40~70°C |
|
Storage humidity |
5%~90% (non-condensing) |
|
Dimensions |
26mm(Height)*104mm(Width)*119mm(Depth) (external power) |
