- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
180 kg
-
Production Capacity:
-
30set/month
-
Power:
-
1.1kw
-
Dimension(L*W*H):
-
600*600*1550mm
-
name:
-
punching machine
-
Function:
-
lock hole working machine
-
Place of Origin:
-
Jinan City Shandong Province
-
working positions:
-
4
-
Application:
-
aluminum window
Quick Details
-
Marketing Type:
-
New Product 2022
-
Brand Name:
-
Eworld
-
Voltage:
-
380 V
-
Weight:
-
180 kg
-
Production Capacity:
-
30set/month
-
Power:
-
1.1kw
-
Dimension(L*W*H):
-
600*600*1550mm
-
name:
-
punching machine
-
Function:
-
lock hole working machine
-
Place of Origin:
-
Jinan City Shandong Province
-
working positions:
-
4
-
Application:
-
aluminum window

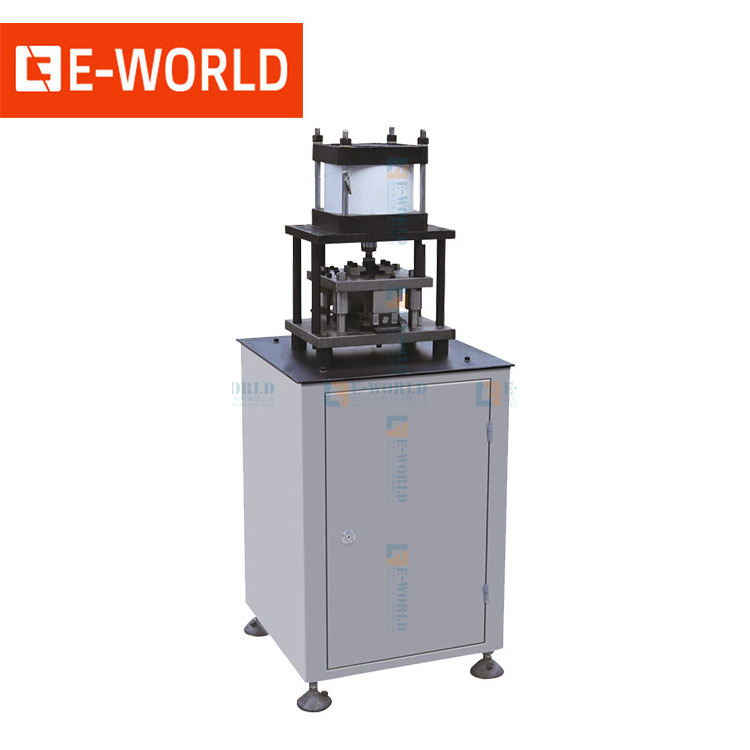

Eworld aluminum doors and windows seal frame four working positions punching machine for aluminium windows work
Product Description
1. It is specially used for punching the holes, slots for aluminum windows
2. Four pneumatic punches make the punching surface smooth with high efficiency.
3. Four working positions can complete the process for handle grooves of the openable sash and notching.
Specification
|
Eworld aluminum doors and windows seal frame four working positions punching machine for aluminium windows work
|
|
|
|
Machine model
|
LY-16
|
|
|
Power supply
|
380V 50HZ /optional
|
|
|
Power
|
1.1kw
|
|
|
Capability of oil box
|
20L
|
|
|
Rated oil pump pressure
|
16MPa
|
|
|
Cutting profile surface roughness
|
Ra 12.5Um
|
|
|
Max. blanking pressures
|
30KN
|
|
|
Punching travel
|
30 mm
|
|
|
Machine contour dimension
|
600×600×1550mm
|
|
|
Machine weight(about)
|
180kg
|
|
Product Description
NO.1
Every combination punching die equipped with the machine can achieve various punching process,by-changing processing position,various types profiles can be processed.
NO.2
NO.3
Used for punching process in the manufacture of Aluminum and PVC window and door.
EWORLD has been maintaining world production and shipments, our products are leaving the factory and being shipped to our customers
*20years factory production experience
*3 years machine warranty
*156 exported country experience
*20000 square meters Glass machine&upvc windows machine factory
*About Shandong Eworld Machine Co.,Ltd
Shandong Eworld Machine Co.,Ltd is one of the famous and big manufacturers of glass equipment, windows equipment, CNC equipment.
Since its inception in 2002, and after many years of development and growth, the company is now playing a leading role in glass machinery and windows door machine in China.
Eworld group has 2 factories, which are located in Jinan City. Advanced products, exquisite techniques, solid working, and cordial services
1. Are you manufacture?
Yes,we are the professional manufacture which have more than 5 workshops.
2. How about the service?
1).reply it at once if from Ali-trademanager,if by email,it reply it within 12 hour
2).deliver max. days within 15 days
3).24 hours for after -sale serive
4).more than 12 years experience in this kind machine field
5).fluent english, communication barrier free
3. What’s the guarantee?
1).Our guarantee for 18 months.
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).2 year quality guaranty for the machine (excluding the consumables)
5).We will provide the consumable parts at an agency price
6).24 hours on line service each day, free technical support.
4. Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. Allof our engineers have passport.
5. If our price is higher than another company or factories?
Please check, what is is the different of the machine parts ,service and guarantee,especially the
machine inner electric parts, sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous andreliable parts for the machines inside.
6. How long is the delivery time?
For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.
7. What is the payment ?
Any payment method you want,such as L/C,T/T,D/P,West-union and so on.
