Quick Details
-
Brand Name:
-
IH
-
Use:
-
FTTX
-
Warranty Time:
-
1 year
-
Product name:
-
Fiber Optical Hybrid adapter male to female SC FC ST LC
-
Connector Type:
-
SC/FC/LC/ST/MU/DIN/E2000
-
Fiber Mode:
-
Singlemode/Multimode
-
Insertion Loss:
-
≤0.2dB
-
Color:
-
Blue/Aqua/Beige
-
Working Temperature:
-
-40℃~85℃
-
Material:
-
Plastic
-
MOQ:
-
10
-
Leading Time:
-
3-5 Working Days
-
Certification:
-
ROHS/ISO9001
Quick Details
-
Type:
-
Fiber opitc adapter
-
Model Number:
-
IAD-FM-TUSUS2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
IH
-
Use:
-
FTTX
-
Warranty Time:
-
1 year
-
Product name:
-
Fiber Optical Hybrid adapter male to female SC FC ST LC
-
Connector Type:
-
SC/FC/LC/ST/MU/DIN/E2000
-
Fiber Mode:
-
Singlemode/Multimode
-
Insertion Loss:
-
≤0.2dB
-
Color:
-
Blue/Aqua/Beige
-
Working Temperature:
-
-40℃~85℃
-
Material:
-
Plastic
-
MOQ:
-
10
-
Leading Time:
-
3-5 Working Days
-
Certification:
-
ROHS/ISO9001
Packing & Delivery

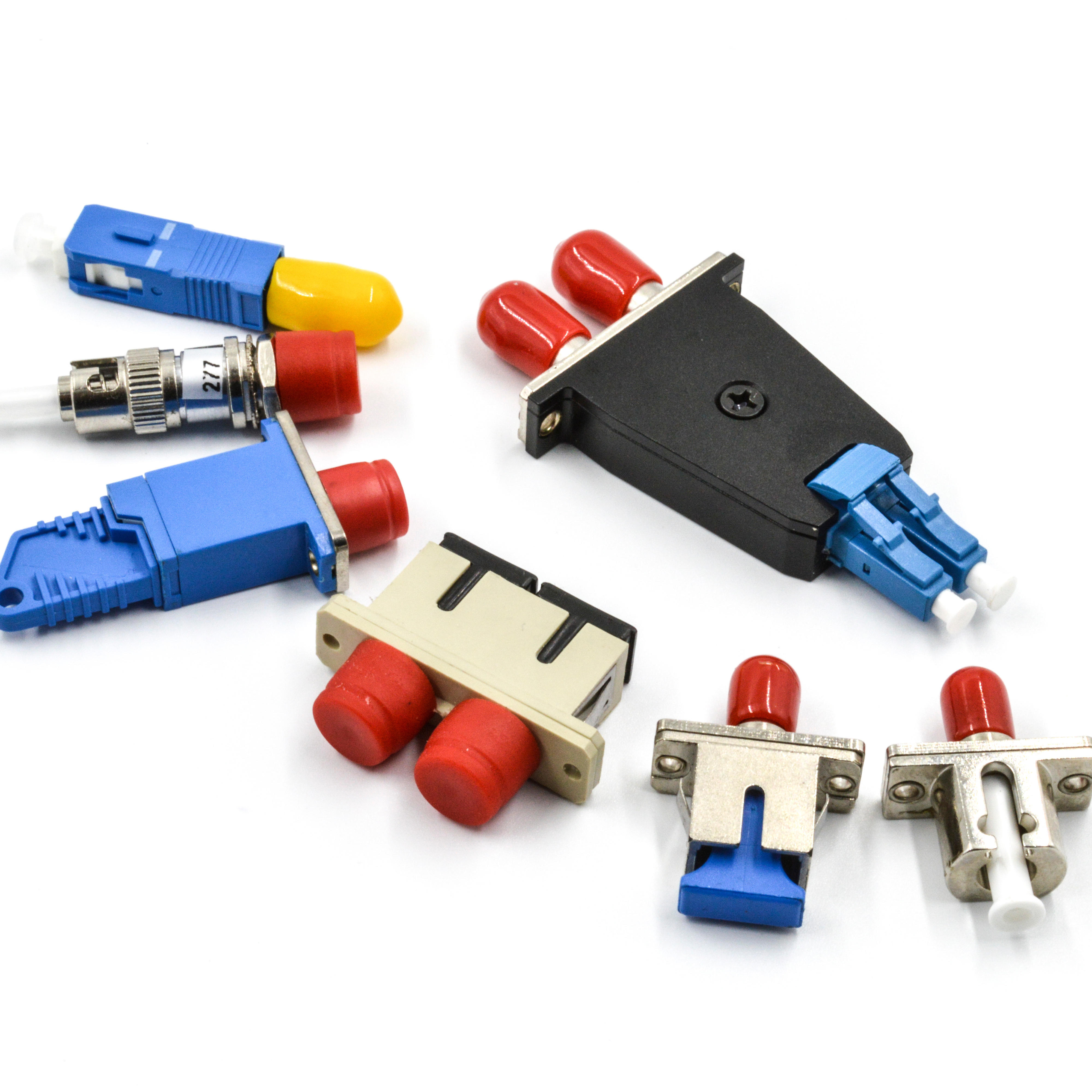

Fiber Optical Hybrid adapter male to female SC FC ST LC simplex Duplex
Optical fiber connectors are the most widely used optical passive components in optical fiber communication systems. Most optical fiber connectors are composed of three parts: two optical fiber connectors and a coupler. Two optical fiber connectors are installed into the two optical fiber tail ends; the coupler acts as an alignment sleeve. In addition, the couplers are mostly equipped with metal or non-metal flanges to facilitate the installation and fixation of the connectors。
Feature
-Low insertion loss and back reflection loss;
-Ferrule end surface pre-domed;
-Precision anti-rotation key and corrosion resistant body;
-UL-rated plastic housing;
-Telcordia style boots;
-Free-floating ceramic ferrule;
-Zirconia sleeves or Phosphor bronze sleeves;
-D-shaped easily installs into panel mount;
-RoHS compliant.
-Ferrule end surface pre-domed;
-Precision anti-rotation key and corrosion resistant body;
-UL-rated plastic housing;
-Telcordia style boots;
-Free-floating ceramic ferrule;
-Zirconia sleeves or Phosphor bronze sleeves;
-D-shaped easily installs into panel mount;
-RoHS compliant.
Application
-Fiber Optic Telecommunications;
-LAN (Local Area Network);
-FTTH (Fiber To The Home);
-CATV&CCTV System;
-High speed transmission systems;
-Fiber optic sensing;
-Industtial, Mechanical and Military.
-LAN (Local Area Network);
-FTTH (Fiber To The Home);
-CATV&CCTV System;
-High speed transmission systems;
-Fiber optic sensing;
-Industtial, Mechanical and Military.
|
SC,FC,LC,MU,MTRJ,ST,SC/ST,FC/ST,SC/FC Fiber Optic Adapter
|
|
|
||
|
Parameter
|
Unit
|
Description
|
||
|
Insertion Loss (Typical)
|
dB
|
≤0.2
|
||
|
Return Loss
|
dB
|
PC≥45 UPC≥50 APC≥60
|
||
|
Mechanical endutance (500T)
|
dB
|
≤0.2
|
||
|
Exchangeability
|
dB
|
≤0.2
|
||
|
Operating Temperature
|
°C
|
-40~+75
|
||
|
Storage Temperature
|
°C
|
-40~+75
|
||
|
Relative Humidity
|
%
|
95
|
||
