Quick Details
-
Brand Name:
-
HEALMEDS
-
Model Number:
-
HAS-E100
-
Product name:
-
Multi Functional Drill HAS-E100
-
Properties:
-
Orthopedic Surgical Instruments
-
speed:
-
1200rpm
-
Feature:
-
high sealing system
-
Motor:
-
Imported, Brushless motor
-
Design:
-
one-hand operation
-
Battery:
-
2100mAh
-
Certificate:
-
CE, ISO13485
-
MOQ:
-
1 Set
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Return and Replacement
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
HEALMEDS
-
Model Number:
-
HAS-E100
-
Product name:
-
Multi Functional Drill HAS-E100
-
Properties:
-
Orthopedic Surgical Instruments
-
speed:
-
1200rpm
-
Feature:
-
high sealing system
-
Motor:
-
Imported, Brushless motor
-
Design:
-
one-hand operation
-
Battery:
-
2100mAh
-
Certificate:
-
CE, ISO13485
-
MOQ:
-
1 Set

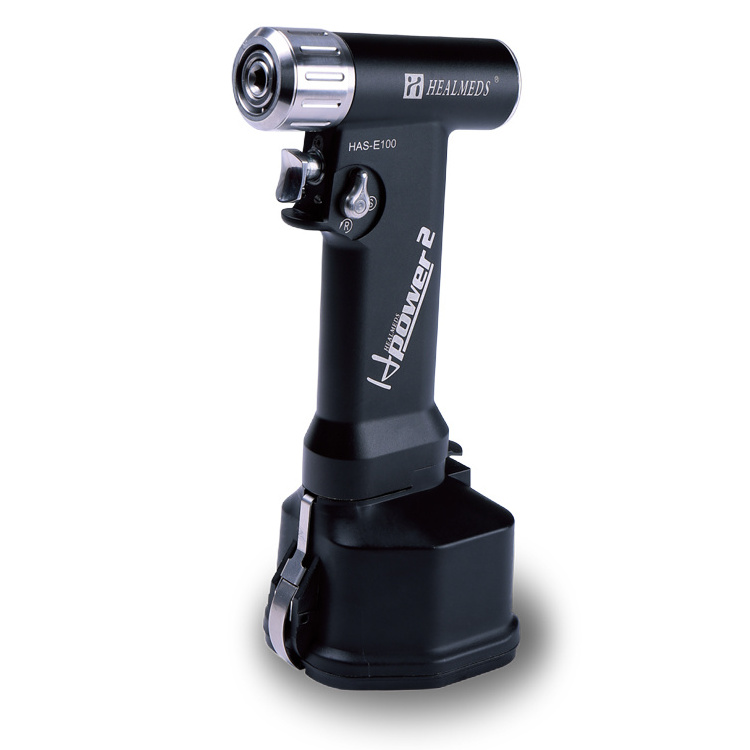

Multi-Function Drill HAS-E100
HAS-E100 Multi-function drill is high end product of our company.Used brushless motor of Europe, more capacity battery, mini handpiece can be operated by one hand. mainly used in orthopedic trauma surgery, artificial joint replacement surgery and hand and foot surgery, neurosurgery and other fields. The product has obtained the second-class medical device registration certificate issued by the State Food and Drug Administration and the CE ,ISO13485 certification.
|
No.
|
Item
|
Value
|
No.
|
Item
|
Value
|
|
1
|
Speed range (key chunk attachement)
|
0-1200rpm
|
6
|
Radial circle run-out
|
≤0.1mm
|
|
2
|
Speed range (Reaming Attachment)
|
0-400rpm
|
7
|
Axial movement
|
≤0.5mm
|
|
3
|
Torque (key chunk attachement)
|
3.5N.m
|
8
|
Battery capacity
|
2100mAh
|
|
4
|
Torque (Reaming attachement)
|
10N.m
|
9
|
Biggest drill bit diameter
|
8mm
|
|
5
|
Operation(V) voltage
|
9.6V
|
10
|
Diameter of Cannulation
|
6.5mm
|
Configuration
|
No.
|
Accessory list
|
Quantity
|
Note
|
|
1
|
Handpiece
|
1 PC
|
Standard
|
|
2
|
Battery
|
2 PCS
|
Standard
|
|
3
|
Key chuck
|
1 PC
|
Standard
|
|
4
|
Reaming Attachment
|
1 PC
|
Standard
|
|
5
|
Charger
|
1 PC
|
Standard
|
|
6
|
Drill chuck
|
1 PC
|
Standard
|
|
7
|
Sterilizing channel
|
1 PC
|
Standard
|
|
8
|
Aluminum alloy case
|
1 PC
|
Standard
|
Mini handpiece, One-hand operation, high-performance brushless motor, high sealing system! (Unique bone drill can use with reciprocating saw in China)
System Features:
1. Coreless brushless motor from USA
2. Can use with multiple adapters
3. No Limit speed-changing
4. High Coaxiality, Low-Noise
5. Mini handpiece, one-hand operation
6. High sealing system, water-resistant
7. Whole unit can be autoclavable at 135 °C (Improved type ≤ 155 °C ), with 1.6Mpa
Warranty for whole machine is 1 year, for motor is 2 years, for the battery and other fast consumption items is 3 months.
Validated sterilization cycle for Medical Electric Drill and Medical Electric Saw is:
Sterilization method Temperature Exposure Time Dry
Flash without cloth 129°C~134℃ 10min 8 min
Pre-vacuum with cloth 129°C ~134°C 4 min
8 min
100% ethylene oxide with cloth 49°C ~57°C 2.5h
ventilation 8h
270F steam with cloth 129°C ~134°C 35min
8 min
270F steam with double layers 121°C ~123°C 50min
8 min
of cloth
1. Sterilize temperature ≤ 135 °C (Improved type ≤ 155 °C ), if the temperature is over 135 °C, the motor will be damaged.
2. Normal bone drill can only hold drill bits less than 6mm, acetabulum reaming drill with big torque,rpm is around 300, canulate drill is used with nail or K wire, rpm is around 600.
3. The battery need to be get out of the power tool after surgery. Otherwise the small automatic discharge of the electric will make the life of the battery short.
4. The battery cannot be sterilized, it is not autoclavable.
5. The cranial bur must be washed right after the surgery by purger in order to avoid the blood stick in the bur, then we should make it dry.
6. The battery space in the handpiece of the tool should not have any water,after sterilization.
7. The cranial bur blade is made of medical stainless steel, in order to avoid broken, so it is flexible and not very hard, it is easy to be attrite, we suggest each blade only use for 1 surgery.
Staff
Technique Patents
CE/ ISO13485/ CFDA/ GMP/ FSC
Packing : Optional Aluminum case for each set , then into a good quality carton, or on request.
