- Product Details
- {{item.text}}
Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HENRY
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
1500*1120*2100
-
Marketing Type:
-
New Product 2023
-
Weight (KG):
-
1500 kg
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Raw material:
-
Fly Ash Cement Sand Concrete
-
Block Type:
-
Hollow Solid Paver Block Curbstone
-
Color:
-
Customer's Demand
-
Molding cycle:
-
40s
-
Power:
-
8.8KW
-
Pallet size:
-
850*550*20mm
-
After-sales Service:
-
24-hour Online Service
-
Advantage:
-
Multi Function Block Production Line
-
Pcs/mould:
-
4 Pcs (400*200*200mm )
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other
-
Brick Raw Material:
-
Cement
-
Production Capacity (Pieces/8 hours):
-
2500 pcs/8hours
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HENRY
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
1500*1120*2100
-
Marketing Type:
-
New Product 2023
-
Weight (KG):
-
1500 kg
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Raw material:
-
Fly Ash Cement Sand Concrete
-
Block Type:
-
Hollow Solid Paver Block Curbstone
-
Color:
-
Customer's Demand
-
Molding cycle:
-
40s
-
Power:
-
8.8KW
-
Pallet size:
-
850*550*20mm
-
After-sales Service:
-
24-hour Online Service
-
Advantage:
-
Multi Function Block Production Line
-
Pcs/mould:
-
4 Pcs (400*200*200mm )
Product Description:

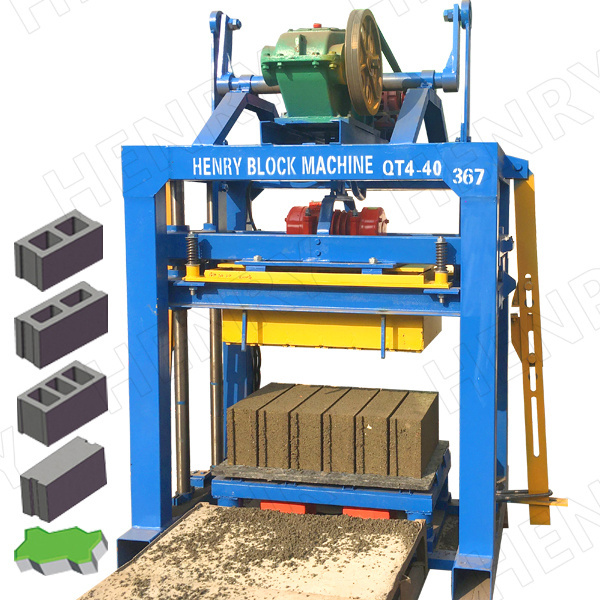

This block machine is a small fixed brick making machine with simple structure and reasonable design. A durable JZQ reducer is used on the top of the machine to take care of the lifting of the mold box. The indenter adopts a simple and practical hook design for easy operation. The vibration platform is welded by Q345 steel plate, and the connection part with the main engine is designed with rubber column, which has a good cushioning effect. The whole machine is equipped with 3 vibrators, which can provide strong excitation force, the brick forming speed is fast, and the compactness is good. The mold is welded with Q345 steel, which can be directly replaced to produce different brick types.
This block machine is a small fixed brick making machine with simple structure and reasonable design. A durable JZQ reducer is used on the top of the machine to take care of the lifting of the mold box. The indenter adopts a simple and practical hook design for easy operation. The vibration platform is welded by Q345 steel plate, and the connection part with the main engine is designed with rubber column, which has a good cushioning effect. The whole machine is equipped with 3 vibrators, which can provide strong excitation force, the brick forming speed is fast, and the compactness is good. The mold is welded with Q345 steel, which can be directly replaced to produce different brick types.
This block machine is a small fixed brick making machine with simple structure and reasonable design. A durable JZQ reducer is used on the top of the machine to take care of the lifting of the mold box. The indenter adopts a simple and practical hook design for easy operation. The vibration platform is welded by Q345 steel plate, and the connection part with the main engine is designed with rubber column, which has a good cushioning effect. The whole machine is equipped with 3 vibrators, which can provide strong excitation force, the brick forming speed is fast, and the compactness is good. The mold is welded with Q345 steel, which can be directly replaced to produce different brick types.
Specification Parameter
|
Overall Size
|
1580(L)×1100(W)×2100(H)mm
|
|
Shaping Cycle
|
40-45 seconds
|
|
Speed
|
2800 r.pm
|
|
Upper Vibrator
|
2.2KW
|
|
Nether Vibrator
|
4.4kw
|
|
Electricity
|
380V/220V (adjustable)
|
|
Total Weight
|
1500 KGS
|
Shandong Henry Intelligent Machinery
Manufacturing Co., ltd.
Shandong Henry Intelligent Machinery Manufacturing Co., ltd.has been committed to the research, development, production and sales of block molding machines. With first-class equipment and professional technology,
Skills and 20 years of practical experience, the R&D center has always
watching the advanced technology at home and abroad.Issue products
been at the forefront of the block molding machine market development,
suitable for different users' investment needs. Block forming machine,
great importance to new technology.Technology, research and development
hydraulic brick machine, cement pipe machine, mixer. The company attaches
of new products, a total of 43 patented technologies, the application of these
equipment,And has been widely praised by users.
The company takes high quality and high efficiency as the guiding ideology, honesty and pragmatism as the enterprise concept, and customers get the maximum benefit as the purpose, and work together for a total of.Develop together. Shandong Henry Intelligent Machinery Manufacturing Co., ltd. is willing to cooperate with Chinese and foreign enterprises in various forms and seek common development!
With excellent technology and excellent service, Henry Intelligent Machinery exports its products to the United States, South America, Europe, the Middle East, Southeast Asia and Africa.More than 150 countries and regions around the world.
FAQ
Q: How many kinds of block can be made by this machine ?
A: by changing mold, this machine can make all type design brick ,block or even paver.
Q:Will you provide installation support?
A: we will provide installation video and manual book.online video avaiable also.
Q:What is your Minimum Order Quantity?
A:Minimum order quantity is 1 set machine, anyway, special will bu give on larger scale.
Q:How does your factory do regarding quality control?
A:Quality first,customers foremost".We always attach great importance to quality controlling from the very beginning to very end.
Q:May I visit your factory?
A:Sure,welcome any time .We can also pick you up at airport and station.
If you are interested in our products please contact with us.We will reply you as soon as possible. We believe that we are always your honest and reliable supplier.
