Quick Details
-
Model Number:
-
ZW-0.6/10-16C
-
Voltage:
-
220V/380V/415V(customizable)
-
Dimension(L*W*H):
-
1300*1000*1100mm
-
Weight:
-
550kg
-
Product name:
-
Liquefied Petroleum Gas Compressor
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Cooling method:
-
Air-cooling&water-cooling
-
Application:
-
General Industry
Quick Details
-
Applicable Industries:
-
liquefaction gas station
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
AOT
-
Model Number:
-
ZW-0.6/10-16C
-
Voltage:
-
220V/380V/415V(customizable)
-
Dimension(L*W*H):
-
1300*1000*1100mm
-
Weight:
-
550kg
-
Product name:
-
Liquefied Petroleum Gas Compressor
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Cooling method:
-
Air-cooling&water-cooling
-
Application:
-
General Industry
Product overview:

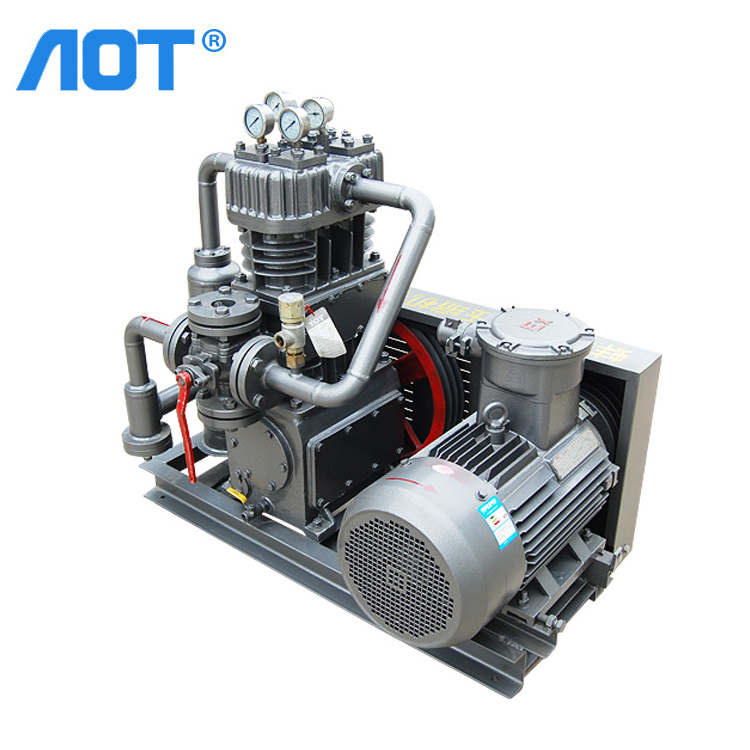

LPG compressor is a patented product of our company. Our LPG compressor adopts oil-free lubrication technology to ensure gas cleanness and adopts vertical two-cylinder structure. The overall volume occupies a smaller area and the structure is more compact and reasonable.
Features:
Small size, light weight, smooth operation, low noise, simple structure, easy operation, safe and reliable
Application:
Widely used in liquefied gas station loading and unloading, residual gas recovery, and chemical plant exhaust recovery.
|
Compressor
|
Product Model
|
|
ZW-0.6/10-16C
|
||
|
|
Type
|
|
Z Type
|
||
|
|
Compressed medium
|
|
Liquefied gas
|
||
|
|
Nominal volume flow(m³/mim)
|
|
0.6
|
||
|
|
Compression stage
|
|
1
|
||
|
|
Cylinder number
|
|
2
|
||
|
|
Driving mode
|
|
Belt
|
||
|
|
Noise (sound pressure level) dB(A)
|
|
≤85
|
||
|
|
Cooling mode
|
|
Air cooling
|
||
|
|
Rotational speed (r/min)
|
|
600
|
||
|
|
Suction pressure (MPa G)
|
|
1.0
|
||
|
|
Discharge Pressure (MPa G)
|
|
1.6
|
||
|
|
Suction temperature (℃)
|
|
30
|
||
|
|
Discharge temperature (℃)
|
|
≤140
|
||
|
|
Lubrication type
|
Crankshaft, connecting rod, cross head
|
Oil lubrication
|
||
|
|
|
Cylinder, Packing
|
Oil-free lubrication
|
||
|
Motor
|
Model
|
|
YB3-132M-4
|
||
|
|
Explosion-proof grade
|
|
DIIBT4
|
||
|
|
Rotational speed (r/min)
|
|
1450
|
||
|
|
Rated voltage (V)
|
|
380
|
||
|
|
Rated frequency(Hz)
|
|
50
|
||
|
|
Rated current (A)
|
|
15.4
|
||
|
|
Rated power (Kw)
|
|
7.5
|
||
|
Compressor size (L×W×H) mm
|
≈1300×1000×1100
|
|
|
||
|
Weight(kg)
|
≈600
|
|
|
||
Note:With the parameters of the logo will be subject to leave the factory
Scope of supply
|
No.
|
Name
|
Number
|
Note
|
|
1
|
Compressor host
|
1
|
/
|
|
2
|
Explosion-proof Motor
|
1
|
/
|
|
3
|
Gas-liquid separator
|
1
|
/
|
|
4
|
Air-cooling
|
1
|
/
|
|
5
|
Shared chassis
|
1
|
/
|
|
6
|
Belt
|
1 set
|
/
|
|
7
|
Piping parts
|
1 set
|
/
|
|
8
|
Random spare parts
|
1 set
|
/
|
|
9
|
The technical documentation
|
1 set
|
/
|
|
10
|
Explosion-proof control cabinet
|
1 set
|
/
|
Bengbu AOT Compressor Co.,
is located in Bengbu Anhui.China. This is the world's important compressor production base. The company specializes in the development, manufacturing and sales of compressor products. The company is mainly engaged in the new type of high efficiency and environment-friendly special gas compressor for oxygen, hydrogen, menthane , liquefied gas, natural gas and gas station and chemical industry. The company has always adhered to the scientific and technology and design concept of compressor industry at home and abroad, combined with the actual situation in China, and applied scientific enterprise management and advanced manufacturing techiology in the design, development, assembly process and testing means. Product quality, to create first-class products.
Two-years warranty period for whole machine except of tubes and human factors etc, and 24-month of after-sale service from the date when you receive machine or 24 months when installation finished;
Consultant services for whole machine life, and 24 hours technical support by email;
UPS, English software, user manual and the installation & debugging by our experienced technicians.
Please tell me inlet pressure,outlet pressure,voltage frequency,capacity,the usage of compressor, I will recommend a suitable gas compressor.
If you want to send me the inquiry,please fill the below technical information:
1. The flow rate: _____Nm3/hr
2. Inlet pressure: _____ Bar
3. Discharge pressure: _____ Bar
4. Voltages and Frequency : ______V/PH/HZ
5. Natural gas compressor application:
If you are interested in it,please contact me freely
