Quick Details
-
Luminous Efficacy(lm/w):
-
0
-
Product Weight（kg）:
-
0.36
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
PHILIPS
-
Input Voltage(V):
-
220-240V
-
Power factor 100% load (nom.)::
-
0.95
-
Input frequency::
-
50-60 Hz
-
Input voltage::
-
220-240V
-
Operating Frequency (Nom)::
-
0.14 kHz
-
Earth Leakage Current (Max)::
-
0.35 mA
-
Inrush Current Width::
-
50ms
-
Power Losses (Nom)::
-
10W
-
Inrush Current Peak (Max) ::
-
50A
-
Mains Voltage Performance (AC)::
-
-10%-+6%
-
Ignition Voltage (Max)::
-
5.0kV
Quick Details
-
Warranty(Year):
-
1-Year
-
Use:
-
Metal Halide Lamps
-
Matched Tube:
-
Other
-
Luminous Efficacy(lm/w):
-
0
-
Product Weight（kg）:
-
0.36
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
PHILIPS
-
Input Voltage(V):
-
220-240V
-
Power factor 100% load (nom.)::
-
0.95
-
Input frequency::
-
50-60 Hz
-
Input voltage::
-
220-240V
-
Operating Frequency (Nom)::
-
0.14 kHz
-
Earth Leakage Current (Max)::
-
0.35 mA
-
Inrush Current Width::
-
50ms
-
Power Losses (Nom)::
-
10W
-
Inrush Current Peak (Max) ::
-
50A
-
Mains Voltage Performance (AC)::
-
-10%-+6%
-
Ignition Voltage (Max)::
-
5.0kV

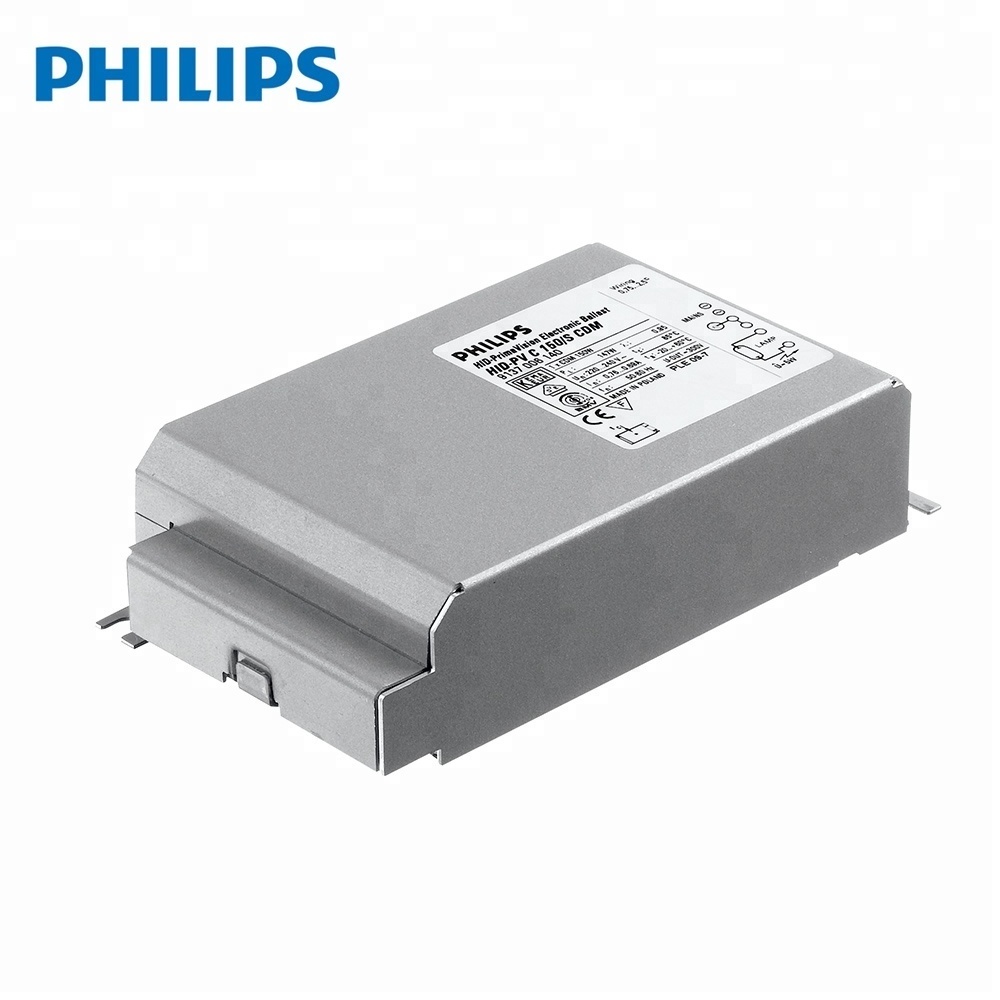

HID-PV C 70 /S CDM 220-240V 50/60Hz
HID-PV C 150 /S CDM 220-240V 50/60Hz
HID-PV E 70 /S CDM 220-240V 50/60Hz
General Information
Lamp type CDM
Number of lamps 1 piece/unit
Suitable for outdoor use No
Number of products on MCB (16 A type B) (nom.) 6
Automatic restart Yes
Operating and Electrical
Input voltage 220 to 240 V
Input frequency 50-60 Hz
Operating frequency (nom.) 0.14 kHz
Power factor 100% load (nom.) 0.95
Ignition voltage (max.) 5.0 kV
Ignition switch-off time (nom.) 20 min
Mains voltage performance (AC) -10%-+6%
Mains voltage safety (AC) -18%-+10%
Earth leakage current (max.) 0.35 mA
Inrush current width .50 ms
Constant wattage deviation -3%/+3%
Power losses (nom.) 10 W
Inrush current peak (max.) 50 A
Wiring
Cable capacity output wires mutual (nom.) 200 pF
Cable length from device to lamp 2.0 m
Wire strip length 10.0-11.0 mm
Ballast contact wire cross section 0.50-2.50 mm²
Connector type Insert
System characteristics
Rated ballast-lamp power 150 W
Temperature
T ambient (max.) 60 °C
T ambient (min.) -20 °C
T storage (max.) 85 °C
T storage (min.) -25 °C
T case lifetime (nom.) 75 °C
T-Case maximum (max.) 85 °C
Datasheet
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: No. It's all PHILIPS logo.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Send back the goods then check by PHILIPS.After check send the new to you.
