Quick Details
-
Product name:
-
Variable Attenuator
-
Attenuation Range (dB):
-
0-20dB
-
Applicable:
-
TV amplifiers
-
Impedance:
-
75Ω
-
Operating frequency (MHz):
-
0 ~ 1000MHz
-
Color:
-
Blue
-
Package:
-
1pcs/bag
-
Insertion Loss (dB):
-
0.5dB
-
Case color:
-
Blue ,Black
-
Rotation length:
-
2, 3, 5, 8, 18, 24 mm
Quick Details
-
Brand Name:
-
QD
-
Model Number:
-
QD-SJ-B
-
Place of Origin:
-
China
-
Product name:
-
Variable Attenuator
-
Attenuation Range (dB):
-
0-20dB
-
Applicable:
-
TV amplifiers
-
Impedance:
-
75Ω
-
Operating frequency (MHz):
-
0 ~ 1000MHz
-
Color:
-
Blue
-
Package:
-
1pcs/bag
-
Insertion Loss (dB):
-
0.5dB
-
Case color:
-
Blue ,Black
-
Rotation length:
-
2, 3, 5, 8, 18, 24 mm
Product Description
|
Specification:
|
|
|
|
|
||||
|
Attenuation range（dB):
|
0-20dB
|
|
|
|
||||
|
impedance（Ω）：
|
75Ω
|
|
|
|
||||
|
Insertion loss(dB)：
|
0.5dB
|
|
|
|
||||
|
Operating frequency（MHz):
|
0～1000MHZ
|
|
|
|
||||
|
Frequency response：
|
≤±0.3dB
|
|
|
|
||||
|
reflection loss(dB)：
|
≥17Db
|
|
|
|
||||
|
Case color:
|
Blue , Black
|
|
|
|
||||
|
Rotation length:
|
2, 3, 5, 8, 18, 24 mm
|
|
|
|
||||
|
Rotary handle color:
|
Light blue,Dark blue, Red
|
|
|
|
||||
Product Paramenters
|
1.Electrical performance
|
|
|
|
|
|
|
|
|
|
|||||||||
|
NO.
|
Item
|
|
Qualification
|
|
|
|
|
Specification
|
|
|||||||||
|
1.1
|
Impedance matching value
|
|
Output impedance / input impedance matching
|
|
|
|
|
75Ω
|
|
|||||||||
|
1.2
|
Reflection loss
|
|
>300MHz, >550MHz, >860MHz
|
|
|
|
|
>18, >16, >14
|
|
|||||||||
|
1.3
|
Maximum attenuation
|
|
Counterclockwise to bottom measurement
|
|
|
|
|
20dB±2dB 10dB±2dB
|
|
|||||||||
|
1.4
|
Minimum attenuation
|
|
Measured clockwise to the bottom
|
|
|
|
|
<0.5dB
|
|
|||||||||
|
2.Mechanical performance
|
|
|
|
|
|
|
|
|
|
|||||||||
|
NO.
|
Item
|
|
Qualification
|
|
|
|
|
Specification
|
|
|||||||||
|
2.1
|
Full revolution
|
|
Counterclockwise bottom position, turn clockwise to the bottom, the total number of revolutions of the shaft
|
|
|
|
|
3.5±0.5(turns),6.0±0.5(turns)
|
|
|||||||||
|
2.2
|
Rotary torque
|
|
Rotation speed 60 degrees / sec
|
|
|
|
|
Below 50gf-cm(Max)
|
|
|||||||||
|
2.3
|
Axis rotation strength
|
|
Measured clockwise to the bottom
|
|
|
|
|
Above 800gf-cm(Max)
|
|
|||||||||
|
2.4
|
Terminal strength
|
|
Add 500gf-cm to the terminal, 100 5 seconds
|
|
|
|
|
No obvious looseness and poor contact
|
|
|||||||||
|
2.5
|
Solder pot heat resistance
|
|
Temperature below 300 degrees, within 3 seconds
|
|
|
|
|
No obvious looseness and poor contact
|
|
|||||||||
|
3.Durability
|
|
|
|
|
|
|
|
|
|
|||||||||
|
NO.
|
Item
|
|
Qualification
|
|
|
|
|
Specification
|
|
|||||||||
|
3.1
|
Swing life
|
|
|
|
|
|
|
Go back and forth more than 200 times
|
|
|||||||||

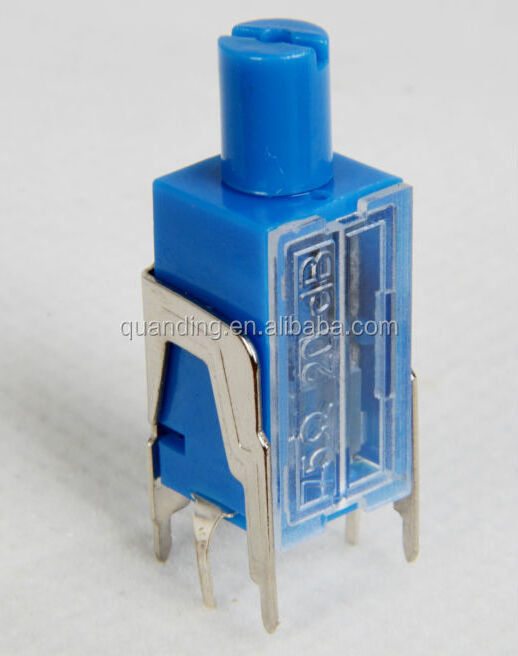

Picture shows
