Quick Details
-
Cell size:
-
Customized
-
Panel Dimensions:
-
1200*600*6.8mm
-
Panel Efficiency:
-
21.6%
-
Type:
-
CDTE, Customized Solar Panel
-
Product name:
-

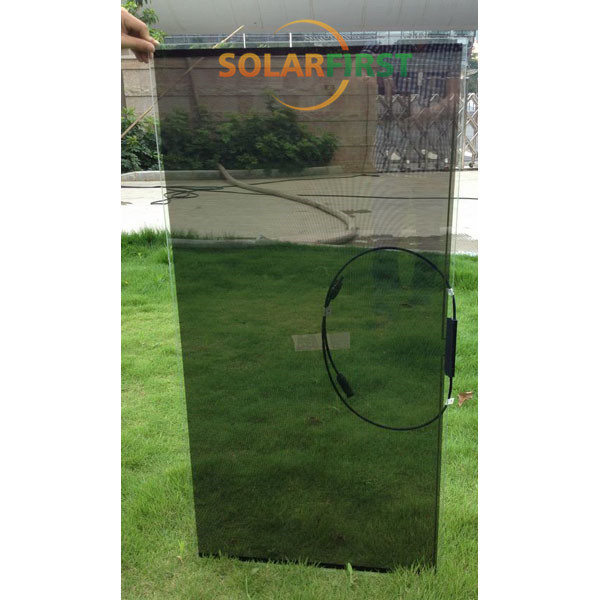

Thin Film Solar panel
-
Color:
-
Customized Color
-
Feature:
-
Lightweight
-
Frame:
-
None
-
Cell Type:
-
Cadmium Telluride
-
Area:
-
0.72㎡
-
Thickness:
-
6.8mm
-
OEM Order:
-
Acceptable
-
Warranty:
-
25 years
Quick Details
-
Brand Name:
-
SolarFirst
-
Model Number:
-
SF-ST1-48W
-
Place of Origin:
-
Fujian, China
-
Cell size:
-
Customized
-
Panel Dimensions:
-
1200*600*6.8mm
-
Panel Efficiency:
-
21.6%
-
Type:
-
CDTE, Customized Solar Panel
-
Product name:
-
Thin Film Solar panel
-
Color:
-
Customized Color
-
Feature:
-
Lightweight
-
Frame:
-
None
-
Cell Type:
-
Cadmium Telluride
-
Area:
-
0.72㎡
-
Thickness:
-
6.8mm
-
OEM Order:
-
Acceptable
-
Warranty:
-
25 years
Product Description
| Specification | SF-ST1-48 | SF-ST1-64 | SF-ST1-72 | SF-80 | SF-85 |
| Nominal Power(Pm) | 48W | 64W | 72W | 80W | 85W |
| Open Circuit Voltage(Voc) | 116V | 116V | 116V | 58.8V | 60.2V |
| Short Circuit Current(Isc) | 0.59A | 0.78A | 0.88A | 1.90A | 1.97A |
| Voltage at Max,Power(Vm) | 87V | 87V | 87V | 47.4V | 48.3V |
| Current at Max.Power(Im) | 0.55A | 0.73A | 0.82A | 1.68 | 1.76 |
| Transparency | 40% | 20% | 10% | / | / |
| System Properties(At STC) | |||||
| Maximum System Voltag | 1000(600UL) | ||||
| Limiting Reverse Current | 2 | 3.5 | |||
| Maximum Series Fuse | 2 | 3.5 | |||
| Temperature Coefficients(at STC) | |||||
| Temperature Coefficients of Isc | α=0.060%/℃ | ||||
| Temperature Coefficients of Voc | β=0.321%/℃ | ||||
| Temperature Coefficients of Pm | γ=0.214%/℃ | ||||
| Mechanical Specifications | |||||
| Size | 1200mm*600mm*6.8mm | ||||
| Area | 0.72m² | ||||
| Weight | 11.8Kg | ||||
| Frame | None | ||||
| Lead Cable | 2.5mm² 700mm | 2.5mm² 65 0 mm | |||
| Connectors | MC4 | ||||
| Bypass Diode | 10A | ||||
| Cell Type | Cadmium Telluride(CdTe) | ||||
| Cover Type | 3.2mm+0.76EVA/PVB/UV reduction | 3.2mm Mormal Glass Laminated | |||
| Encapsulation | EVA//PVB | EVA//Edge Seal | |||
