Quick Details
-
Model Number:
-
12.8V200AH
-
Battery Size:
-
12V 200Ah
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
22 kg
-
The charging ratio:
-
0.2C
-
The discharge rate:
-
0.5C
-
Electric Energy:
-
2560 Wh
-
Battery Type:
-
Lifepo4 Battery Pack
-
Size:
-
525*230*220mm
-
Normal Voltage:
-
12.8V
-
Capacity:
-
200Ah
-
Protection:
-
BMS Built-in
-
Terminal:
-
M8
-
Material:
-
ABS
-
OEM/ODM:
-
Available
-
Certification:
-
CE FCC ROHS MSDS UN38.3
Quick Details
-
Anode Material:
-
LFP
-
Application:
-
Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
-
Brand Name:
-
Improve
-
Model Number:
-
12.8V200AH
-
Battery Size:
-
12V 200Ah
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
22 kg
-
The charging ratio:
-
0.2C
-
The discharge rate:
-
0.5C
-
Electric Energy:
-
2560 Wh
-
Battery Type:
-
Lifepo4 Battery Pack
-
Size:
-
525*230*220mm
-
Normal Voltage:
-
12.8V
-
Capacity:
-
200Ah
-
Protection:
-
BMS Built-in
-
Terminal:
-
M8
-
Material:
-
ABS
-
OEM/ODM:
-
Available
-
Certification:
-
CE FCC ROHS MSDS UN38.3

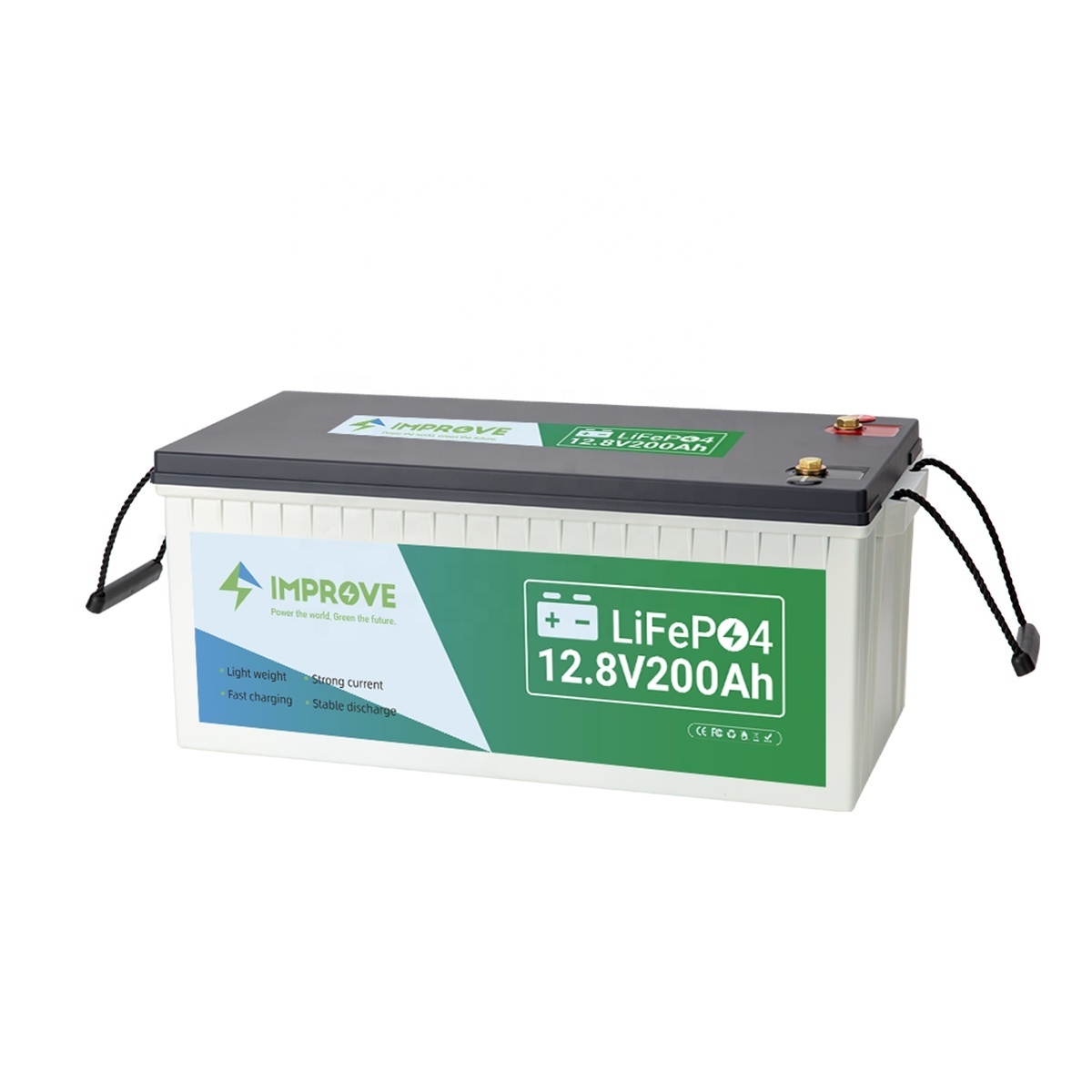

IMPROVE 12V 24V LiFePO4 100Ah 200Ah 300Ah Lithium Ion Phosphate Battery Pack for Solar Energy Systerm/RV/Marine
We are LifePO4 Lithium Ion Battery factory. Welcome to contact me for more information.
Email: sales14(@)improvecn(.)com
|
Product Technical Specifications
|
Product Technical Specifications
|
|
||
|
Electrical Characteristics
|
Nominal Voltage
|
12.8 V/24V
|
||
|
|
Nominal Capacity
|
100Ah/200 Ah/300Ah
|
||
|
|
Energy
|
customized
|
||
|
|
Internal Resistance
|
≤10mΩ
|
||
|
|
Cycle Life
|
>2000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity.
|
||
|
|
Months Self Discharge
|
≤3.5% per month at 25℃
|
||
|
Standard Charge
|
Charge Voltage
|
14.6±0.2V / 29.2±0.2V
|
||
|
|
Charge Mode(CC/CV)
|
At 0℃~45℃ temperature, charged to 14.6V/29.2V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V/29.2V until the current was not more than 0.02C.
|
||
|
|
Standard Charge Current
|
0.2 C
|
||
|
|
Max.Charge Current
|
0.5 C
|
||
|
Standard Discharge
|
Max. Continuous Current
|
1 C
|
||
|
|
Peak Current
|
2C(<3S)
|
||
|
|
Discharge Cut-off Voltage
|
10.0 V
|
||
|
Environmental
|
Charge Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
||
|
|
Disxcharge Temperature
|
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
|
||
|
|
Storage Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
||
|
|
Water Dust Resistance
|
IP55
|
||
|
Mechanical
|
Cell & Method
|
LFE3.2V
|
||
|
|
Plastic Case
|
ABS
|
||
|
|
Dimension(L*W*H*TH)
|
525*230*220mm(12V 200Ah) or customized
|
||
|
|
Weight
|
contact us for more information
|
||
Specification
|
Nominal Voltage
|
12.8V
|
|
Nominal Capacity
|
200Ah
|
|
Energy Capacity
|
2560Wh
|
|
Charge Voltage
|
14.6V
|
|
Cut-off Voltage
|
10V
|
|
Charge Current
|
0.2C
|
|
Cycle Life
|
3000-6000 Cycles
|
|
Dimension(L*W*H)
|
520*267*220mm
|
|
Weight
|
22Kg
|
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2014, sell to North America(20.00%),Eastern Europe(20.00%),South America(15.00%),Western Europe(15.00%),Eastern Asia(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),South Asia(5.00%),Mid East(4.00%),Southeast Asia(2.00%),Africa(2.00%),Oceania(2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Energy Storage Battery, Household LiFePO4 Battery, Cabinet Type LiFePO4 Battery, Golft Cart LiFePO4 Battery, Fokrlift LiFePO4 Battery, etc.
4. Why should you buy from us not from other suppliers?
We strive to consistently surpass customer expectations in quality, innovation, value, and service. We offer unparalleled attention to your specific battery specifications and needs.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish
