Quick Details
-
Brand Name:
-
ZXT
-
Type:
-
ZX-1625VA
-
Cutting Tools Recommended:
-
Cutting tool, capturing camera, marking tool, punching tool
-
Working Area:
-
1600*2500(W*L) mm
-
Max. Cutting Speed:
-
1200mm/s
-
Cutting Thickness:
-
0.1-25.0mm
-
Transmission Interface:
-
Ethernet
-
Format Supported:
-
DXF, PLT, etc
-
Drive System:
-
Servo motor, linear guide rail, rack and pinion
-
Power Supply:
-
AC 110V/220V/380V, 50/60Hz, single/three phase
-
Rated Power:
-
11kw
Quick Details
-
Weight (KG):
-
1200
-
Marketing Type:
-
Hot Product 2023
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZXT
-
Type:
-
ZX-1625VA
-
Cutting Tools Recommended:
-
Cutting tool, capturing camera, marking tool, punching tool
-
Working Area:
-
1600*2500(W*L) mm
-
Max. Cutting Speed:
-
1200mm/s
-
Cutting Thickness:
-
0.1-25.0mm
-
Transmission Interface:
-
Ethernet
-
Format Supported:
-
DXF, PLT, etc
-
Drive System:
-
Servo motor, linear guide rail, rack and pinion
-
Power Supply:
-
AC 110V/220V/380V, 50/60Hz, single/three phase
-
Rated Power:
-
11kw
Product Description

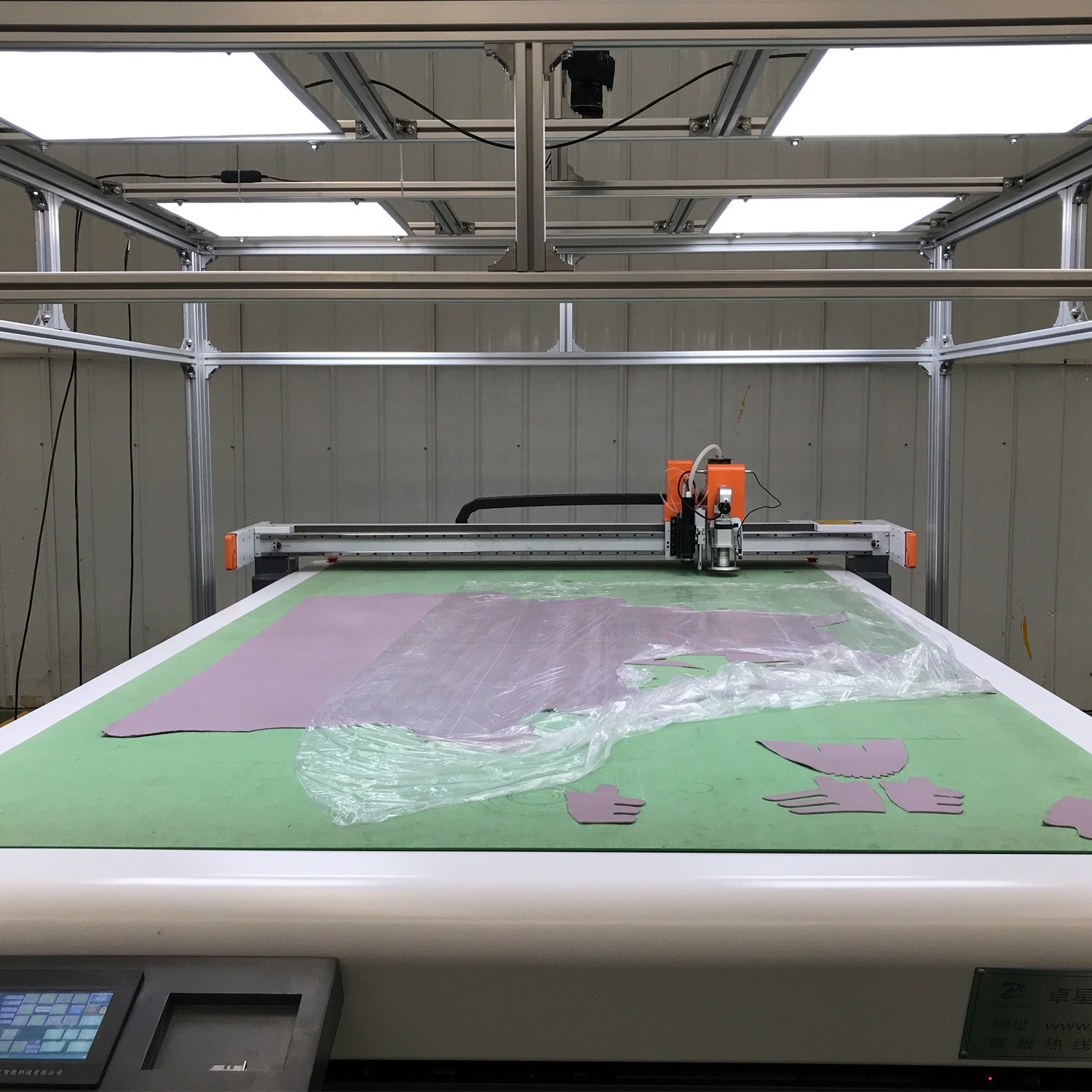

Factory Price Automatic Nesting PU Genuine Leather Cutting Machines Moccasins Loafers Slip on Shoes Upper Cutter Making Machines
Genuine leather and PU are common materials used for making leather shoes and bags.
Usually the width of PU leather and fabric is 1600 mm, customers adopt our ZX-1625VA model.
Our machine can be equipped with automatic feeding device, oscillating cutting tool, capturing tool and small holes punching tool.
For genuine leather, natural leather, there's professional software can recognize the edges and defects on the genuine leather, automatic nesting software is essential, also has projector as optional.
|
Technical Parameters:
|
|
|
|
Model
|
ZX-1625VA
|
|
|
Tools Recommended
|
Oscillating Cutting Tool, Notching Tool, Marking Tool
|
|
|
Working Area
|
1600*2500(W*L) mm
|
|
|
Rated Power
|
11kw
|
|
|
Max. Cutting Speed
|
1200mm/s
|
|
|
Cutting Thickness
|
0.1-25.0mm (depending on the materials)
|
|
|
Cutting Accuracy
|
±0.1mm
|
|
|
Transmission Interface
|
Ethernet
|
|
|
Drive System
|
Servo motor, linear guide rail, rack and pinion
|
|
|
Material Fixed Mode
|
Vacuum adsorption
|
|
|
Format Supported
|
DXF, PLT, etc
|
|
|
Operation Property
|
Online/offline operation, continuous cutting with high efficiency, 7*24 hours with zero downtime
|
|
|
Safety Device
|
Infrared sensing device, 4 emergency stop buttons
|
|
|
Power Supply
|
AC 110V/220V/380V, 50/60Hz, single/three phase
|
|
|
Dimension
|
3300x2250x1450mm
|
|
|
Weight
|
1000kg
|
|
