Quick Details
-
Production Capacity:
-
100%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Ganger
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
4800*2250*2250mm
-
Weight:
-
3500 kg
-
Marketing Type:
-
Hot Product 2022
-
Application:
-
Do cutting,drilling,edge profiling and polishing
-
Advantage 1:
-
Vacuum feet/pad/suction for holding quartzstone
-
Advantage 2:
-
widely used in granite, quartz stone, artificial stone, marble
-
Advantage 3:
-
Whole steel structure machine body ensuring high stability.
-
Advantage 4:
-
Humanized control system, easy to operate.
-
Advantage 5:
-
No tool magazine, change tools manually for the ATC spindle, fast
-
Certification:
-
ce
-
After-sales Service Provided1:
-
Online support
-
After-sales Service Provided2:
-
Field installation, commissioning and training
-
After-sales Service Provided3:
-
Field maintenance and repair service
Quick Details
-
Type:
-
Stone Grinding Machine
-
Power:
-
7.5 KW
-
Cutting thickness (max):
-
50mm
-
Production Capacity:
-
100%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Ganger
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
4800*2250*2250mm
-
Weight:
-
3500 kg
-
Marketing Type:
-
Hot Product 2022
-
Application:
-
Do cutting,drilling,edge profiling and polishing
-
Advantage 1:
-
Vacuum feet/pad/suction for holding quartzstone
-
Advantage 2:
-
widely used in granite, quartz stone, artificial stone, marble
-
Advantage 3:
-
Whole steel structure machine body ensuring high stability.
-
Advantage 4:
-
Humanized control system, easy to operate.
-
Advantage 5:
-
No tool magazine, change tools manually for the ATC spindle, fast
-
Certification:
-
ce
-
After-sales Service Provided1:
-
Online support
-
After-sales Service Provided2:
-
Field installation, commissioning and training
-
After-sales Service Provided3:
-
Field maintenance and repair service

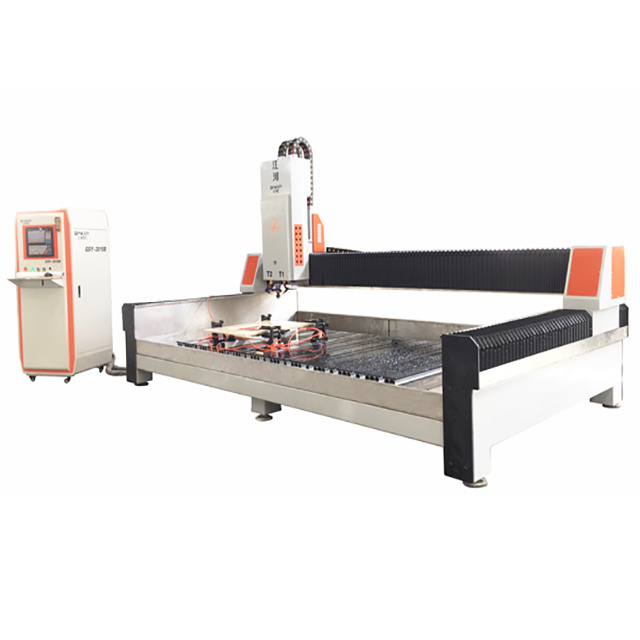

Product Description
Specification
|
Model No.
|
GSY-3015B
|
|
X/Y/Z Axis working size
|
3000*1500*430(mm)
|
|
MAX feeding height
|
420mm
|
|
Working table:
|
Aluminum profile with T-slot and water tank
|
|
Dustproof:
|
Full X,Y axis
|
|
X/Y/Z Axis transmission:
|
Helical gear and rack
|
|
Guide rail:
|
PMI square guide rail, XY 30mm, Z 25mm
|
|
Spindle:
|
ATC spindle 5.5KW + Frequency conversion water-cooled spindle 7.5KW
|
|
Max RPM:
|
27-24000rpm
|
|
Collet/Blade diameter:
|
BT40
|
|
Working voltage
|
380V, 50HZ, 3 phase
|
|
Control system:
|
Weihong control system, arm control
|
|
lubrication system
|
Manual lubrication system
|
|
Machine size (L*W*H)
|
4600x2200x1850mm
|
|
Tool sensor
|
Tool sensor
|
|
Weight
|
3500KG
|
|
FOB Qingdao Port
|
USD 19800.00
|
Packing & Delivery
Standard wooden case special for ocean shipment.
Load in 20GP.
