Quick Details
-
Weight (KG):
-
3500 KG
-
Power (kW):
-
15
-
Color:
-
Blue, green, as customer required
-
Name:
-
wood sawdust pallet block machine
-
Performance:
-
Stable
-
Usage:
-
press wood sawdust pallet block
-
wooking type:
-
Hydraulic pressure
-
Raw materials:
-
sawdust wood shaving
-
Function:
-
Wood shaving pallet block press machines
-
Raw material:
-
wood sawdust
-
Product name:
-
making wood pallet block
-
Key words:
-
Wood Pallet Making Machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
UT Machinery
-
Marketing Type:
-
Hot Product 2022
-
Weight (KG):
-
3500 KG
-
Power (kW):
-
15
-
Color:
-
Blue, green, as customer required
-
Name:
-
wood sawdust pallet block machine
-
Performance:
-
Stable
-
Usage:
-
press wood sawdust pallet block
-
wooking type:
-
Hydraulic pressure
-
Raw materials:
-
sawdust wood shaving
-
Function:
-
Wood shaving pallet block press machines
-
Raw material:
-
wood sawdust
-
Product name:
-
making wood pallet block
-
Key words:
-
Wood Pallet Making Machine
2023 hot sale sawdust pallet compress machine wood feet block making machine Wood shaving pallet block hot press machines

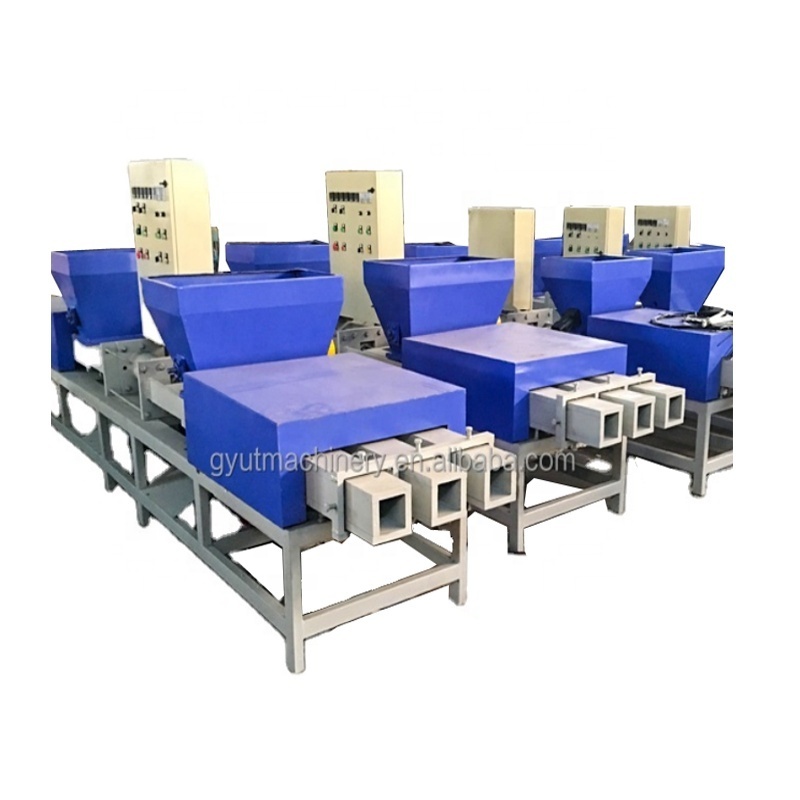

Description of wood pallet Block Making Machine:
- This high quality hot press machine is used to make the pallet feet .
- The raw materials can be wood shavings , sawdust and the like .
- The pallet block manufactured has smooth surface and is waterproof, and durable for use.
- The products are widely used for the pallet foot.
<2>The production line of the sawdust block making machine :
Equipment disposition: Generally four hot presses are a production line, must provide the
dryer, the glue mixer machine and air flow dryer each.
- Crusher : If the material log is bigger than 5*5mm,smaller than 200mm,there is necessary to crush the material into 5*5mm for the further processing.
- Dryer machine : If the material's moisture is above 15%,the drying machine is needed to dry the moisture under 15% before mixing the material with glue.The productivity can be designed as the customer's need.
- Glue mixer :Use the glue mixer to mix the material with glue.
- Hot presss machine: Use the hot press machine to make the wood pallet block .
<3>Technical details of pallet block machine :
|
Model |
Double heads |
Single head |
|
Specification of blocks |
Height:75-145mm Width:75-145mm |
|
|
Power |
20.3kw |
13kw |
|
Glue water amount used |
200-240kg/m3 |
100-120kg/m3 |
|
Supports the density |
550-600kg/m3 |
|
|
Capacity |
4m3/24h |
2m3/24h |
|
Warm prosecution type |
PID adjusts the merit accent to press the control |
|
|
Voltage |
380v/50hz |
|
|
Weight |
1500kg |
1000kg |
|
Dimension |
5000*700*1300mm |
5000*600*1300mm |
<4> production line pricture:
<5>Application :
We also Supply Euro Wooden Pallet Nailer Block Wood Machine Pallet Nailing Machine:
Pre-sale:
- Suggest to client suitable models of as customer need.
- Introduce machine's structure and features in detail, explain the price component;
- answer client concerned questions.
After-sale:
- Start production as soon as receiving down payment.
- Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition.
- Delivery machine in time, taking photos during loading, so you can "remote monitoring" your goods.
- Documents and certificate available in time.
- Manual documents available. Engineer can be sent to client site for installation instruction.
