- Product Details
- {{item.text}}
Quick Details
-
SIZE:
-
2880*1550*1530mm
-
Motor type:
-
PMSM
-
Motor power:
-
25KW
-
max speed:
-
90km/h
-
Battery type:
-
NCM battery
-
battery capacityah:
-
23.04KWH
-
max range:
-
301 (ECO-400)
-
Seats:
-
2 people
-
color:
-
white ,blue ,green,pink,brown,accept customized color
Quick Details
-
Brand Name:
-
SUNYU
-
Place of Origin:
-
Shandong
-
product model:
-
SY-S2 L7e
-
SIZE:
-
2880*1550*1530mm
-
Motor type:
-
PMSM
-
Motor power:
-
25KW
-
max speed:
-
90km/h
-
Battery type:
-
NCM battery
-
battery capacityah:
-
23.04KWH
-
max range:
-
301 (ECO-400)
-
Seats:
-
2 people
-
color:
-
white ,blue ,green,pink,brown,accept customized color

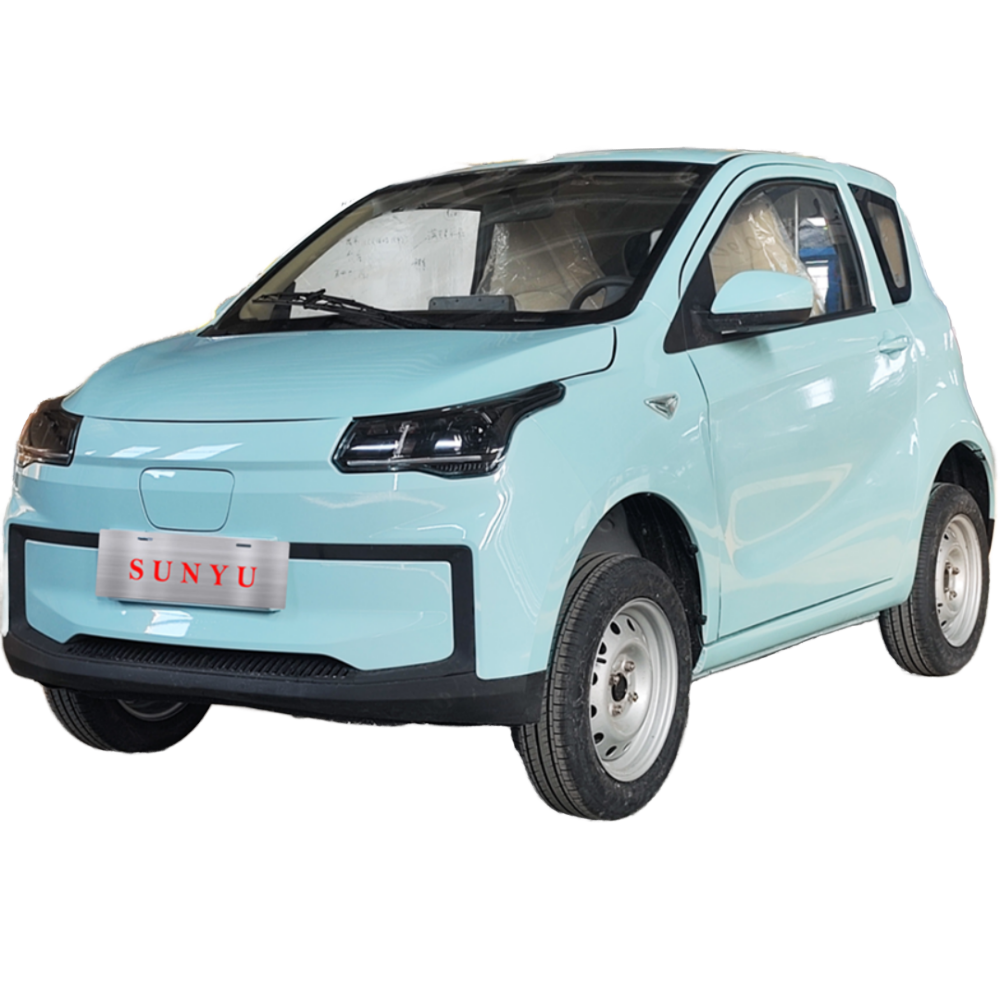

EEC and COC Certificate L7e solar electric vehicle with long distance three door personal scooter car for European
.
Product Description
|
● 表示“有 ”YES； ○ 表示选配 Options；— 表示“无”NO
|
|
S2 L7e
|
|
||
|
Model :
|
|
|
|
||
|
基本参数 Basic Specification
|
车身尺寸Body size：L*W*H (mm)
|
2880*1500*1530
|
|
||
|
|
轴距 Wheel Base (mm)
|
2020
|
|
||
|
|
前/后轮距Wheel Track (mm)
|
1305/1305
|
|
||
|
|
最大爬坡度Climbing angle（%）
|
≤25
|
|
||
|
|
离地间隙 Ground clearance (mm)
|
210
|
|
||
|
|
T转弯半径urning radius (m)
|
4.2
|
|
||
|
|
100KM耗电power consumption/100Km (KWH)
|
6
|
|
||
|
|
最高车速 maximum speed（km/h）
|
90
|
|
||
|
|
NEDC Range（km）
|
301 (ECO-400)
|
|
||
|
|
100KM耗电power consumption/100Km (KWH)
|
6
|
|
||
|
|
货舱容积 Cargo compartment volume(L)
|
930
|
|
||
|
|
车重Curb weight（Kg）
|
638
|
|
||
|
|
最大称重Maximum load mass （Kg）
|
300
|
|
||
|
|
总重量Max. total mass（Kg）
|
938
|
|
||
|
|
整车质保ehicle warranty period
|
3 years/50000 kilometers
|
|
||
|
电动机 Motor
|
电机类型Motor type
|
PMSM-Permanent magnet synchronous motor
|
|
||
|
|
电机功率 Motor power (KW)
|
25
|
|
||
|
|
额定功率Rate power(KW)
|
12
|
|
||
|
|
驱动形式 Driving type
|
后轮驱动 RWD
|
|
||
|
|
峰值马力Peak horsepower (Ps)
|
34
|
|
||
|
|
峰值扭矩 Peak torque （N.m）
|
110
|
|
||
|
|
电机数量Number of motors
|
1
|
|
||
|
|
整车控制器 VCU （V）
|
96
|
|
||
|
全车顶光能发电系统
Solar power system |
太阳能类型Solar type
|
Single-Crystal Silicon
|
|
||
|
|
太阳能电池工艺solar cell process
|
IBC-Interdigitated back contact IBC交互式后连
|
|
||
|
|
太阳能板工艺solar panel process
|
Full roof curved glass lamination全屋顶曲面玻璃夹层
|
|
||
|
|
太阳能系统功率Solar panel power (W)
|
300
|
|
||
|
|
控制器类型 Controller type
|
MPPT
|
|
||
|
|
太阳能核心技术 Solar core technology
|
PDDU-Power Domain Distribution Unit
Weak sunlight power generation technology Optoelectronic Complementary Charging Technology PDDI—功率域分配单元 弱太阳光发电技术 光电互补充电技术 |
|
||
|
蓄电池和充电 Battery and charging
|
蓄电池 Battery
|
Lithium（NCM622）
|
|
||
|
|
蓄电池容量 Battery capacity(KWH)
|
23.04
|
|
||
|
|
电池热管理系统Battery thermal management system
|
Low temperature heating
|
|
||
|
|
充电时间 SOC20% Charging time (h)）
|
6
|
|
||
|
|
输入电压Input Voltage range (V)
|
AC 90-264
|
|
||
|
|
输入电压频率范围(Hz)Input voltage frequency range (Hz)
|
40-70
|
|
||
|
|
输出电流Output current （ADC）
|
32
|
|
||
|
|
电池质保Battery pack warranty
|
8 Years/120000Km
|
|
||
|
|
慢充位置Slow charging interface position
|
Below the front grille logo
|
|
||
|
|
充电枪标准Charging gun standard
|
Type 1
|
|
||
|
|
充电插头Plug standard
|
EU
|
|
||
|
|
放电枪Discharge gun
|
3m Cable & 4-Pin & Independent swtich
|
|
||
|
变速箱Gearbox
|
变速箱描述Transmission Description
|
Single speed transmission
|
|
||
|
|
变速箱类型Gearbox type
|
固定齿轮传动比 Fixed gear ratio
|
|
||
|
|
G齿轮传动比ear ratio
|
8.14:1
|
|
||
|
|
挡位数量 Gear number
|
4（E/D/N/R）
|
|
||
|
|
高低速模式High/Low Speed Mode
|
E(ECO)-60Km/h； D ( Sports)-90 Km/h
|
|
||
|
底盘&转向 Chassis& Steering
|
前悬架类型 Front suspension type
|
麦弗逊式独立悬架 Mcpherson independent suspension
|
|
||
|
|
后悬架类型 Rear suspension type
|
集成桥梁非独立悬架Integrated bridge non independent suspension
|
|
||
|
|
车体结构 Body type
|
承载式 Unibody
|
|
||
|
|
转向类型steering type
|
EPS
|
|
||
|
车轮&制动 Wheel& Brake
|
前制动器类型 Front brake type
|
碟刹 Disc brake
|
|
||
|
|
后制动器类型 Rear brake type
|
鼓刹 Drum brake
|
|
||
|
|
驻车制动类型 Parking brake type
|
手刹 Hand brake
|
|
||
|
|
轮胎规格 Tyre size
|
165/65R14
|
|
||
|
|
轮毂类型 Wheel hub type
|
Aluminum wheels
|
|
||
|
安全配置&辅助驾驶 Safety Configuration
& Driving Assistance |
主驾气囊Driver airbag
|
option
|
|
||
|
|
副驾气囊Passenger airbag
|
|
|
||
|
|
上坡辅助系统 Hill-start Assist ControL
|
●
|
|
||
|
|
制动系统类型 brake system
|
SSBS
|
|
||
|
|
刹车辅助系统 Brake assist system
|
液压式刹车助力系统 Vacuum hydraulic type
|
|
||
|
|
倒车影像Rear View Camera
|
●
|
|
||
|
|
安全带未系提醒Seat belt not fastened reminder
|
●
|
|
||
|
|
安全带 Safety Belt
|
●
|
|
||
|
|
门半开提示 Door ajar prompt
|
前后Front/ Rear
|
|
||
|
|
主驾副驾安全Driver/passenger seat belt
|
three point belt
|
|
||
|
|
速度感应自动锁定Speed sensing automatic locking
|
●
|
|
||
|
|
前防撞梁Front anti-collision beam
|
●
|
|
||
|
|
侧防撞梁Side anti-collision beam
|
●
|
|
||
|
|
保险杠Bumper
|
前后Front/ Rear
|
|
||
|
|
手刹断电Handbrake power off
|
●
|
|
||
|
|
满电自动断电 Auto power off fully charge
|
●
|
|
||
|
|
过压保护Overvoltage protection
|
●
|
|
||
|
|
欠压保护Undervoltage protection
|
●
|
|
||
|
|
过流保护Over current protection
|
●
|
|
||
|
|
过热保护overheat protection
|
●
|
|
||
|
|
光电互补式充电Photoelectric complementary charging
|
●
|
|
||
|
|
充电温度补偿 Charging temperature compensation
|
●
|
|
||
|
|
充电漏电保护 Charging leakage protection
|
●
|
|
||
|
|
输出短路保护 Output short circuit protection
|
●
|
|
||
|
|
鸣笛警示喇叭Warning horn
|
●
|
|
||
|
|
电动升降车窗Electric power window
|
●
|
|
||
|
|
后视镜Rearview mirror
|
●
|
|
||
|
|
中控门锁Central lock
|
●
|
|
||
|
|
遥控钥匙Remote key
|
●
|
|
||
|
|
车轮锁wheel lock
|
●
|
|
||
|
|
制动能量回收Braking Energy Recovery
|
●
|
|
||
|
|
滑动能量回收Sliding energy recovery
|
●
|
|
||
|
|
BMS
|
●
|
|
||
|
|
驾驶模式选择Driving mode selection
|
ECO / Sports
|
|
||
|
INTERIOR CONFIGURATION
|
内视镜Inner mirror
|
●
|
|
||
|
|
阅读灯 Room lamp
|
●
|
|
||
|
|
遮阳板visor
|
●
|
|
||
|
|
座椅材质 Seat material
|
Fabric
|
|
||
|
|
组合仪表Combination instrument panel
|
●
|
|
||
|
|
旋转式按钮Knob type gear shifter
|
●
|
|
||
|
|
茶杯座 Cup holder
|
●
|
|
||
|
|
组合开关(灯/雨刷)Combination switch (light/wiper)
|
●
|
|
||
|
灯光配置
Lamp configuration |
日间行车灯Daytime running lamps
|
●
|
|
||
|
|
转向灯Steering lamp (L/R)
|
●
|
|
||
|
|
侧转向灯Side steering lamp (L/R)
|
●
|
|
||
|
|
刹车灯Braking light (R)
|
●
|
|
||
|
|
车牌照灯License plate lamp(R)
|
●
|
|
||
|
|
示廓灯 Clearance lamp
|
●
|
|
||
|
|
雾灯Foglight (R)
|
●
|
|
||
|
|
倒车灯Reversing light (R)
|
●
|
|
||
|
|
组合式前照灯Combination headlight
|
●
|
|
||
|
|
组合式后尾灯Combination tail lamp
|
●
|
|
||
|
|
灯光组合开关Light combination switch
|
●
|
|
||
|
|
远光灯High beam
|
●
|
|
||
|
|
近光灯Low beam
|
●
|
|
||
|
|
高位刹车灯Position light (F)
|
●
|
|
||
|
车载多媒体 &空调 Multimedia & Air-conditioning
|
中控彩色触摸屏Color touch screen
|
9-inch floating screen
|
|
||
|
|
本地视频播放器Local Video player
|
—
|
|
||
|
|
本地音乐播放器Local music player
|
●
|
|
||
|
|
调频收音机Radio
|
●
|
|
||
|
|
手机充电 Phone charging interface
|
●
|
|
||
|
|
谷歌地图Google Maps
|
●
|
|
||
|
|
蓝牙音乐/电话Bluetooth music/ phone
|
●
|
|
||
|
|
倒车影像 Rear View Camera
|
●
|
|
||
|
|
12V外接电源External power supply
|
●
|
|
||
|
|
多语种菜单操作 Multilingual menu operation
|
English etc
|
|
||
|
|
空调系统Air-conditioning
|
●
|
|
||
Details Images
More Colored to choosed , accept customzied colors
