Quick Details
-
weight:
-
0.76kg
-
purpose:
-
brushless generator
-
Box Size:
-
13.5*10.2*5 cm
-
Services:
-
OEM
-
certificate:
-
ISO9001
-
Guarantee:
-
365days
-
Speed Range:
-
1KHz ~ 6.5KHz
-
IDLE Regulation:
-
260 ±20Hz
-
Stocking Temp:
-
-55 ~ 92 °C
-
Shocking:
-
20-100HZ 500mm/Sec.
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LIXiSE
-
Model Number:
-
3062322
-
weight:
-
0.76kg
-
purpose:
-
brushless generator
-
Box Size:
-
13.5*10.2*5 cm
-
Services:
-
OEM
-
certificate:
-
ISO9001
-
Guarantee:
-
365days
-
Speed Range:
-
1KHz ~ 6.5KHz
-
IDLE Regulation:
-
260 ±20Hz
-
Stocking Temp:
-
-55 ~ 92 °C
-
Shocking:
-
20-100HZ 500mm/Sec.
-
Certification:
-
CE

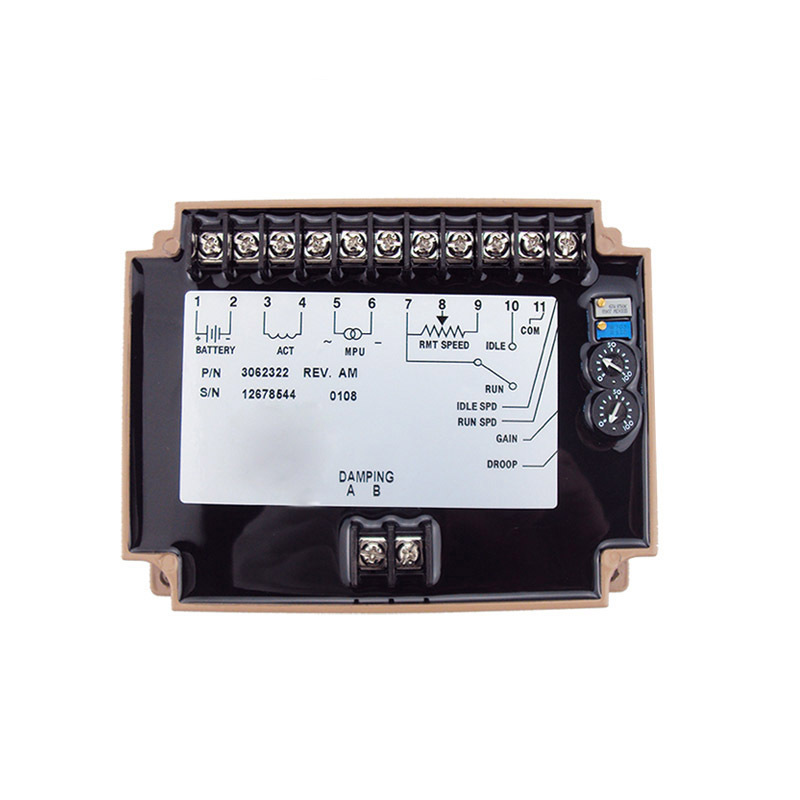

electronic engine governor speed control 3062322
3062322 is a engine speed controller designed by all electronic device for 's actuator, It can fast and precise response to transient load changes. It has a wide speed control range.
For these controllers, separate circuits allow adjustments of proportional, integral and derivative values. These parameters all work together to provide a control that results in fast and stable engine response to load changes while maintaining precise speed regulation of diesel.
Specification----
| 3062322 | |
| RPM Stability: | <±0.25% |
| Speed Range: | 1KHz ~ 6.5KHz |
| Thermal Stability: | Max ±0.7% |
| IDLE Regulation: | 260 ±20Hz |
| DROOP Regulation: | Minimum 15Hz ±6Hz/ 1 Amp |
| Maximum: 400Hz ±75Hz/ 1 Amp | |
| External Speed Regulation: | ±200Hz (with 1 KΩ connected) |
| AUX Input Sensitivity: | 148Hz / 1V., ±10Hz |
| Impedance: | 1MΩ |
| Working Temp Range: | -40 ~ 85 °C |
| ENVIRONMENT: | |
| Working Humidity Range: | Maximum 95% |
| Stocking Temp: | -55 ~ 92 °C |
| Shocking: | 20-100HZ 500mm/Sec. |
| INPUT POWER SUPPLY: | |
| Voltage: | 12 or 24V |
| Grounding Pole: | Negative pole |
| Power Supply: | 40mA |
| Actuator Continuous Current: | Minimum 1A, Maximum 4.5A |
| MPU | |
| Signal: | 2 ~ 120V RMS |
| Apply |
| * Biogas Power Generation |
| *Natural Gas Power |
| *Field Engineering |
| *Electric Power |
| *Factory |
| *Fire-fighting |
| MOVE ADVANTAGE | |||
| sales | 4000pcs/month | the fastest transit time | 2days! |
| inventory situation | a lauge number of stocks | operational advantages | easy for operation |
| production cycle | 1~3days |
Service |
answer all of your questions within 1day |
Payment Term
1.We accept L/C,D/P,D/A, Alipay, West Union, TT. Cash.
2.All major Credit cards are accepted through secure payment processor ESCROW.
Shipment Term
1. We Ship to Worldwide, except APO/FPO
2. Orders processed timely after showing remittance copy.
3. We only ship to confirmed order addresses . Your order address MUST MATCH your address.
4.Items are shipped from China by Airmail, reach most of the countries within 4 to 20 business days .
5.Delivery time depends on destination and other factors, it may takes up to 20 business days.
6. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
7. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
1. Guarantee:365 days after selled.
2. During guarantee,the items share free repairs or replacement.
3. Customer is responsible for the freight come-and-go,and the custom tax.
4. You may consider to send the defective item with a economical way,and we send back the repaired items with your new order together.
5. To save the cost,pls send the item back without packing.
6. Pls provide the defective appearance and related invoice number.
7.We do not repair or replace item with an expired warranty.
8.All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
We are expecting the long time and mutual benefit cooperation with you!
