Quick Details
-
Air discharge:
-
3.0 Nm3/min
-
Discharge pressure:
-
3.0 Mpa
-
Motor power:
-
90W
-
Voltage:
-
220v, 50Hz, 1 phases
-
Weight:
-
63KG
-
Size:
-
650*450*660mm
-
Certification:
-
ISO, CE
-
After Warranty Service:
-
Online support
-
Usage:
-
Air Comoressor
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DASSAW
-
Model No:
-
NTGM
-
Air discharge:
-
3.0 Nm3/min
-
Discharge pressure:
-
3.0 Mpa
-
Motor power:
-
90W
-
Voltage:
-
220v, 50Hz, 1 phases
-
Weight:
-
63KG
-
Size:
-
650*450*660mm
-
Certification:
-
ISO, CE
-
After Warranty Service:
-
Online support
-
Usage:
-
Air Comoressor

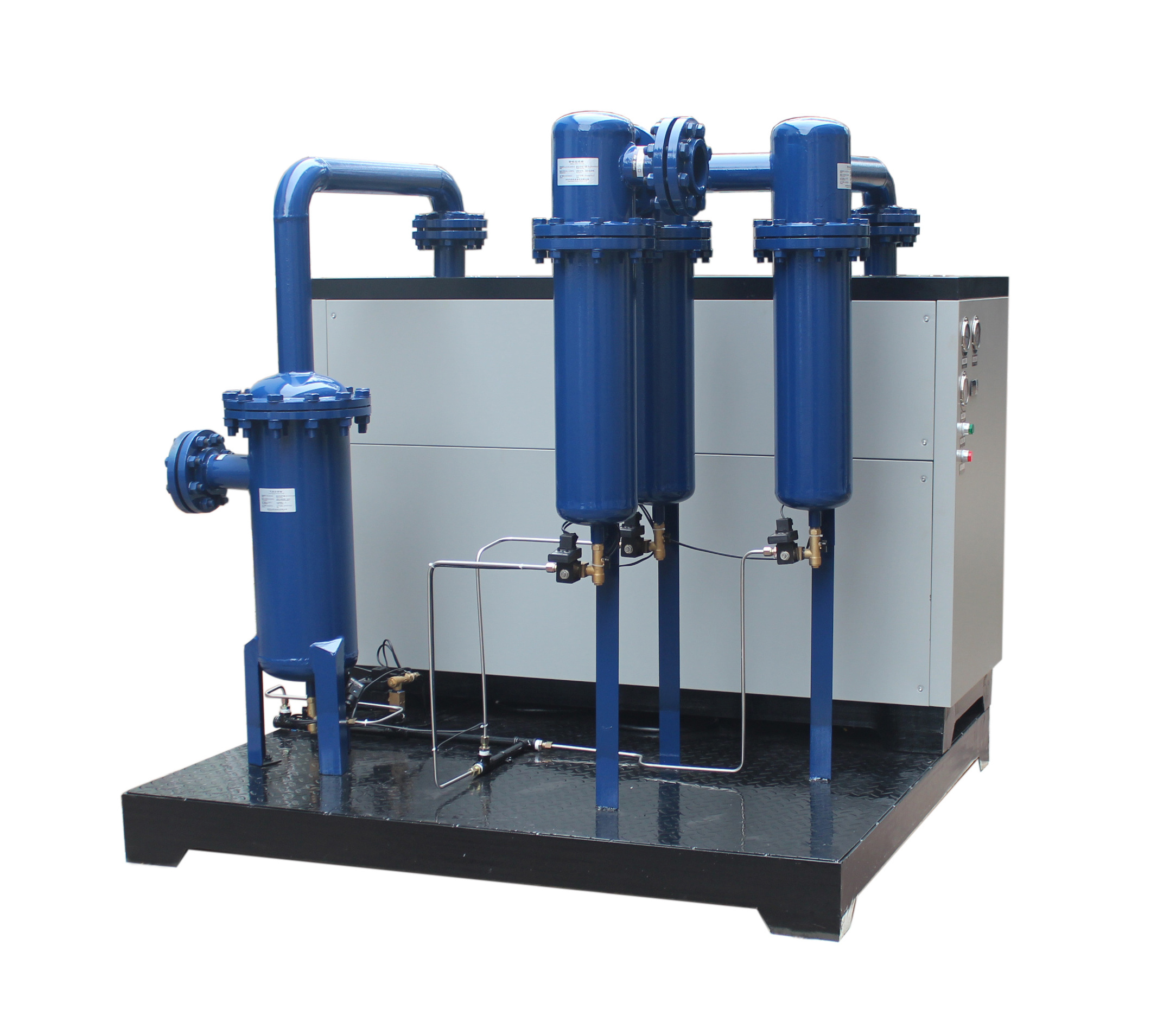

Normal Temperature Air Dryer Air Cooled Compressed Air Dryer
|
Model
|
Air Capacity
(Nm3/min)
|
Power (V/Ph/Hz)
|
Condensor
|
Fan motor (W)
|
Size(mm)
L*W*H
|
Weight
(KG)
|
|
NTGM-1
|
1.0
|
220/1/50
|
Air cooled
|
80
|
580*400*580
|
48
|
|
NTGM-2
|
2.0
|
220/1/50
|
|
90
|
650*450*660
|
53
|
|
NTGM-3
|
3.0
|
220/1/50
|
|
90
|
650*450*660
|
63
|
|
NTGM-4.5
|
4.5
|
220/1/50
|
|
120
|
650*500*710
|
75
|
|
NTGM-6
|
6
|
220/1/50
|
|
120
|
650*500*910
|
110
|
Details Images
Application
The air dryer is mainly used during bottle blowing process. When the air comes from the compressor and air tank,
air dryer will freeze and purify the compressed air for blowing machines.
air dryer will freeze and purify the compressed air for blowing machines.
