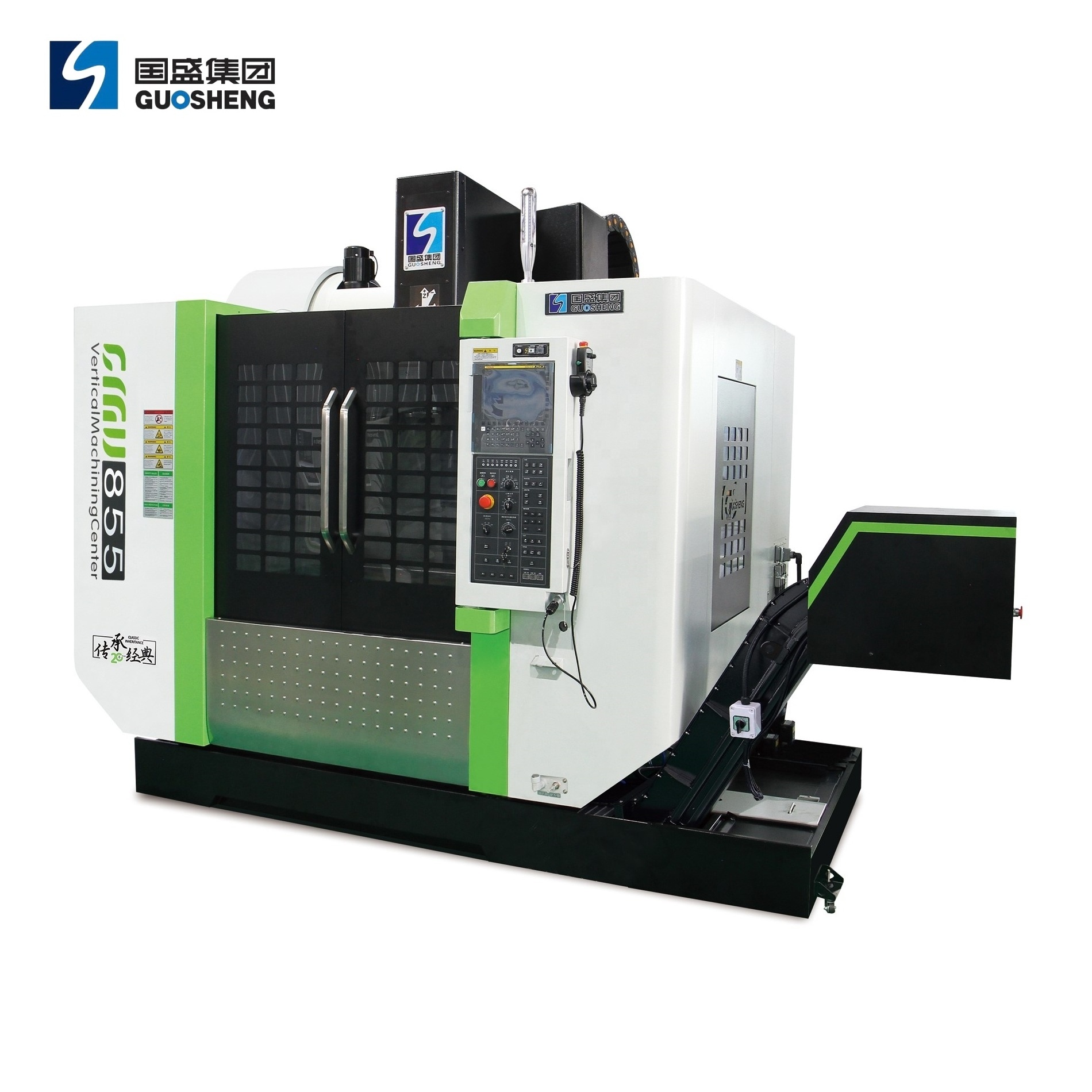

CMV855 4 Axis Mini CNC Universal Milling Machine Used For Mold Parts
CMV855 4 Axis Mini CNC Universal Milling Machine Used For Mold Parts
CMV855 4 Axis Mini CNC Universal Milling Machine Used For Mold Parts
CMV855 4 Axis Mini CNC Universal Milling Machine Used For Mold Parts
CMV855 4 Axis Mini CNC Universal Milling Machine Used For Mold Parts
CMV855 4 Axis Mini CNC Universal Milling Machine Used For Mold Parts
CMV855 4 Axis Mini CNC Universal Milling Machine Used For Mold Parts
CMV855 4 Axis Mini CNC Universal Milling Machine Used For Mold Parts

CMV855 4 Axis Mini CNC Universal Milling Machine Used For Mold Parts

FOB Reference Price: Get Latest Price
≥1 Sets
US $36300
≥10 Sets
US $34500
≥20 Sets
US $32800
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Range of Spindle Speed(r.p.m):
10 - 8000
Positioning Accuracy (mm):
0.008
Repeatability (X/Y/Z) (mm):
0.005
Place of Origin:
Jiangsu, China
Brand Name:
Guosheng
Model Number:
CMV855
Table Travel (mm):
1000*500
Year:
New
Voltage:
220/380V,50Hz
Dimension(L*W*H):
2700*2300*3040 mm
Weight (KG):
5500
Spindle Motor Power(kW):
11/15
Max. Table Load(kg):
700 kg
Marketing Type:
New Product
Name:
CMV855 4 Axis Mini CNC Universal Milling Machine Used For Mold Parts
worktable(l/w ):
1000*500 mm
Maximum load of table:
700 kg
Travel forX/Y/Z axis:
855*550*550 mm
CNC system:
FANUC-Oi MF
Spindle speed:
8000 rpm
Spindle specifications:
BT40/150
Spindle power:
11/15 kw
Positioning accuracy:
0.008 mm
Accuracy of repeated positioning:
0.005 mm

Quick Details

Table Travel (X) (mm):
850
Table Travel (Y) (mm):
550
Table Travel (Z) (mm):
550
Range of Spindle Speed(r.p.m):
10 - 8000
Positioning Accuracy (mm):
0.008
Repeatability (X/Y/Z) (mm):
0.005
Place of Origin:
Jiangsu, China
Brand Name:
Guosheng
Model Number:
CMV855
Table Travel (mm):
1000*500
Year:
New
Voltage:
220/380V,50Hz
Dimension(L*W*H):
2700*2300*3040 mm
Weight (KG):
5500
Spindle Motor Power(kW):
11/15
Max. Table Load(kg):
700 kg
Marketing Type:
New Product
Name:
CMV855 4 Axis Mini CNC Universal Milling Machine Used For Mold Parts
worktable(l/w ):
1000*500 mm
Maximum load of table:
700 kg
Travel forX/Y/Z axis:
855*550*550 mm
CNC system:
FANUC-Oi MF
Spindle speed:
8000 rpm
Spindle specifications:
BT40/150
Spindle power:
11/15 kw
Positioning accuracy:
0.008 mm
Accuracy of repeated positioning:
0.005 mm
Product Overview

CMV855 4 Axis Mini CNC Universal Milling Machine Used For Mold Parts

CMV series high efficiency vertical machining center, the traditional cross sliding table structure, through the finite element analysis to optimize the structure of moving parts, improve the high-speed dynamic performance of the machine tool.
It is suitable for high efficiency processing of small and medium sized parts, widely used in automobile parts, construction machinery and other industries.
FEATURES AT A GLANCE
1. After the installation of four axis, it can make the plane of the tool processing more extensive, and reduce the repeated clamping
of the workpiece, improve the overall processing accuracy of the workpiece, simplify the process, improve the production
efficiency, shorten the production time.
2. Large span herringbone column can effectively reduce vibration and deformation during high speed cuttingC3 precision roller screw.
Right elevation
Front elevation
Back elevation
PRODUCT SPECIFICATIONS
Model
Unit
CMV855
Travel
X-axis
mm
850
Y-axis
mm
550
Z-axis
mm
550
Spindle
Spindle speed
rpm
8000
Spindle nose to worktable center
mm
100-650
Spindle taper
BT40
Drawing nail specification
P50T-1-MAS403(45°)
Spindle motor
kw
11/15
Max.torque of spindle
Nm
52.5/95.5
Table
Table size
mm
1000*500
Max. load on worktable
kg
700
T groove width
mm
5-18*80
Precision
Positioning accuracy
mm
0.008
Repeated Positioning accuracy
mm
0.005
Feed speed
Cutting speed X/Y/Z
m/min
10
Rapid traverse speed X/Y/Z
m/min
36/36/24
Configuration of motor
X_axis motor
βis12
Y_axis motor
βis12
Z_axis motor
βis22B
Spindle motor
βiI12
Tool magazine
Capacity of tool magazine
T
24
Max.tool diameter
mm
80
Max.tool length
mm
300
Max.tool weight
kg
8
Tool exchanging time
sec
2.5
Others
Floor area (length*width*height)
mm
2700*2400*2850
Weight
kg
5400
Details Images
1. Lathe bed castig.
2. Over-loaded roller linear guide rail.
3. High rigidity short nose spindle.
4. Integrated drive base casting.

Tool system


Standard configuration
Option configuration
Project Case
The machine has high torque and good quick response characteristics, which is suitable for automobile, mould, aerospace, military industry, hardware and other mechanical processing fields.
