Quick Details
-
Walkie Talkie Type:
-
mobile radio
-
Place of Origin:
-
China
-
Brand Name:
-
ECOME
-
Model Number:
-
MT-660
-
Dimensions:
-
145 x190 x47mm
-
Frequency Range:
-
136-174/245-246/400-490MHz
-
Color:
-
Black
-
Weight:
-
1200g
-
Output Power:
-
VHF: 10W/25W/60W UHF: 45W/25W/10W
-
Channel Spacing:
-
5/6.25/8.33/10/12.5/15/20/25/30/50KHz
-
Frequency Stability:
-
2.5ppm
-
Audio distortion:
-
<5%
Quick Details
-
Talk Range:
-
10-30km
-
Terminal style:
-
Vehicle Mouted
-
Storage Channel:
-
200
-
Walkie Talkie Type:
-
mobile radio
-
Place of Origin:
-
China
-
Brand Name:
-
ECOME
-
Model Number:
-
MT-660
-
Dimensions:
-
145 x190 x47mm
-
Frequency Range:
-
136-174/245-246/400-490MHz
-
Color:
-
Black
-
Weight:
-
1200g
-
Output Power:
-
VHF: 10W/25W/60W UHF: 45W/25W/10W
-
Channel Spacing:
-
5/6.25/8.33/10/12.5/15/20/25/30/50KHz
-
Frequency Stability:
-
2.5ppm
-
Audio distortion:
-
<5%

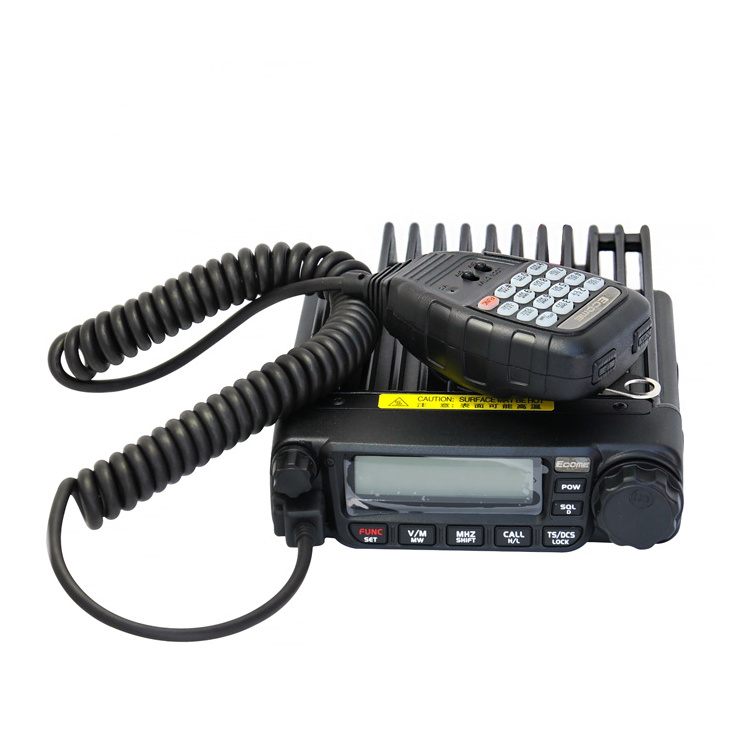

mobile radio ECOME MT660
Specifications
|
Model |
MT-660 |
|
General |
|
|
Frequenvy Range |
136-174/245-246/400-490MHz |
|
Channel Capacity |
200 |
|
Channel Spacing |
5/6.25/8.33/10/12.5/15/20/25/30/50KHz |
|
Freruency Stability |
2.5ppm |
|
Operating Temperature |
-20°C ~ + 60°C |
|
Operating Voltage |
13.8V DC ± 15% |
|
Dimension(HxWxD) |
145mm x190mm x47mm |
|
Weight(with bracket) |
1200g |
|
Receiver |
|
|
Reference Sensitivity |
0.25V / 0.35V |
|
Operating Bandwidth |
60dB 12.5KHz /70dB 25KHz |
|
Adjacent Channel Selectivity |
60dB 12.5KHz 70dB 25KHz |
|
Inter-modulation Rejection |
≥60dB/ ≥65dB |
|
Spurious Response Rejection |
≥70dB |
|
Rated Audio Response |
+1-+3dB |
|
Rated Audio Distortion |
<5% |
|
FM Hum&Noise |
≥40dB 25KHz /≥45KHz 12.5KHz |
|
Transmitter |
|
|
RF Power |
45W/25W/10W(UHF)/60W/25W/10W(VHF) |
|
Frequency Modulation |
11kΦF3E / 16kΦF3E |
|
Modulation Distortion |
<5% |
|
FM Noise |
≥36dB 25KHz /≥40KHz 12.5KHz |
|
Adjacent Channel Power |
≥60dB 12.5KHz /≥70KHz 25KHz |
|
Audio Response |
+1-+3dB |
|
Audio Distortion |
<5% |
